Condenser Fan
>>
Diagrams
>>
Connector Views
Connector Views

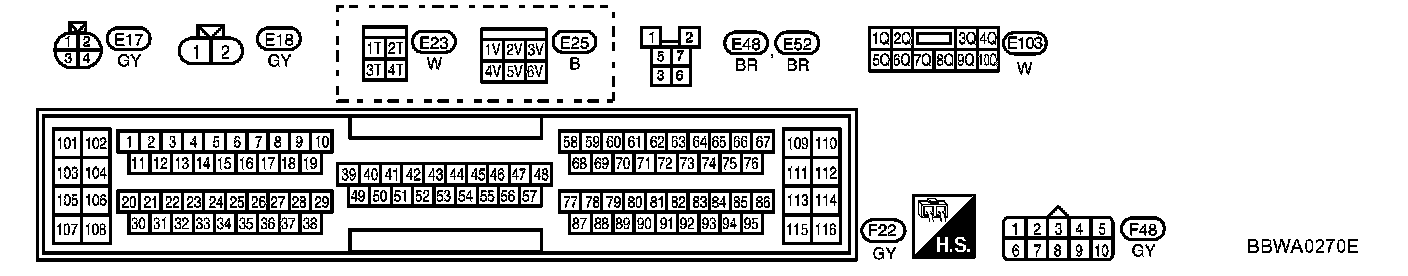

EC-COOL/F-01 Connector Views:

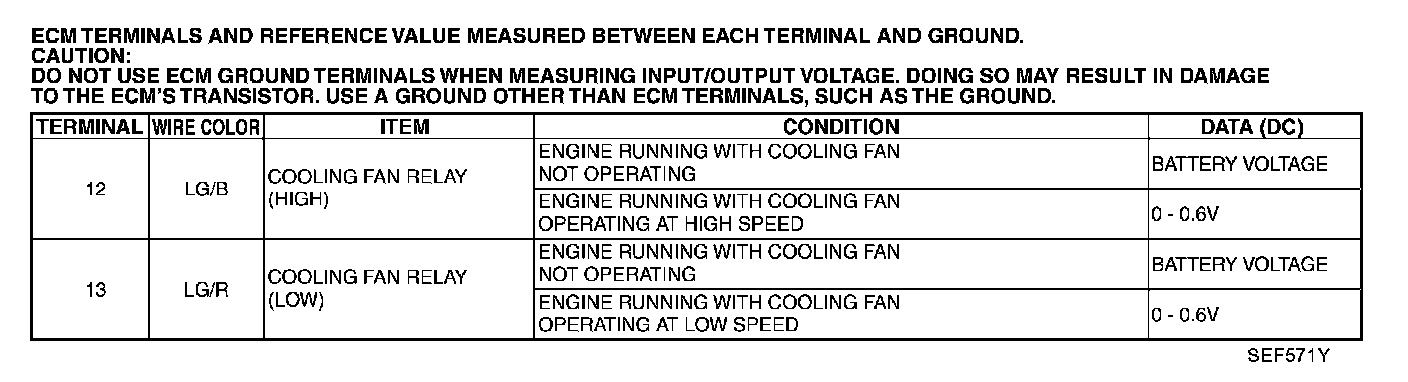

ECM Terminals And Reference Value:

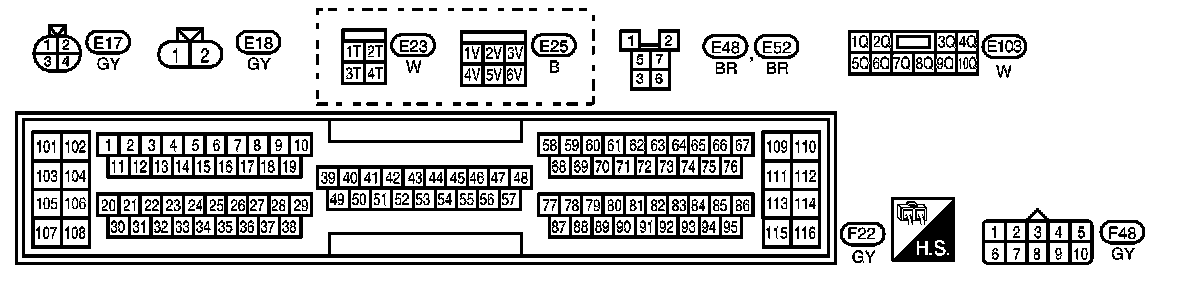

EC-COOL/F-01 Connector Views:

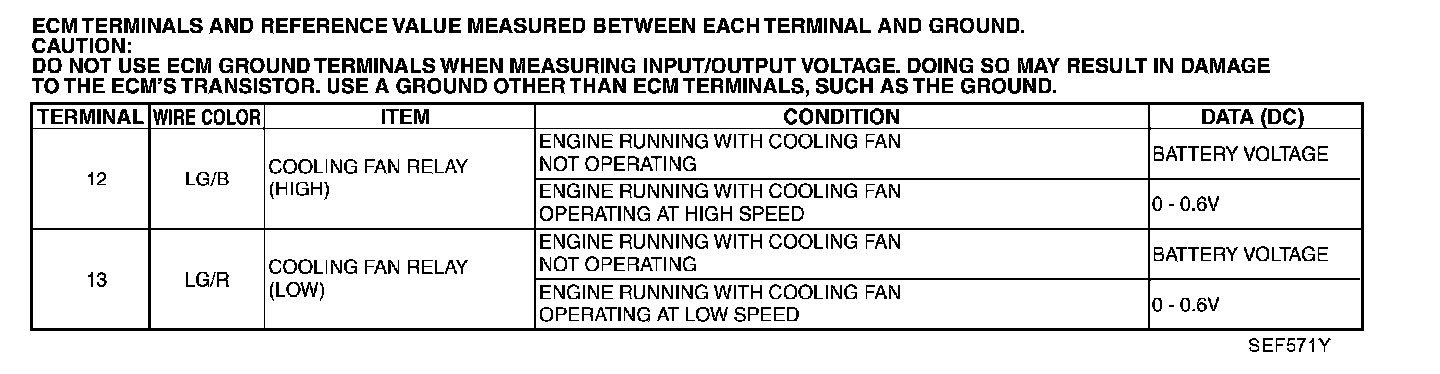

ECM Terminals And Reference Value:
