Home
>>
Nissan-Datsun
>>
2002
>>
Sentra XE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Data Link Connector, A/T
>>
EC-AT/C
EC-AT/C
EC-AT/C-01 Connector Views:

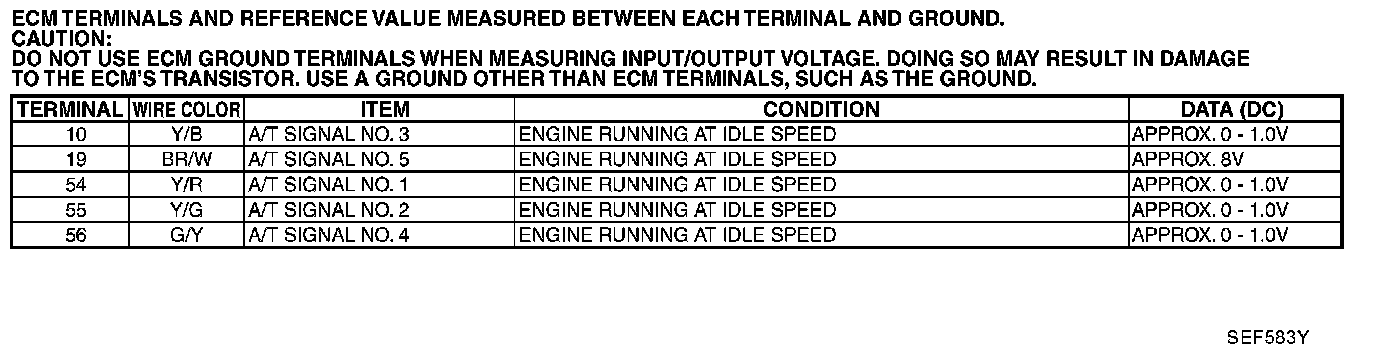

ECM Terminals And Reference Value:
