Nissan-Datsun
>>
2002
>>
Sentra XE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
Schematic
Schematic

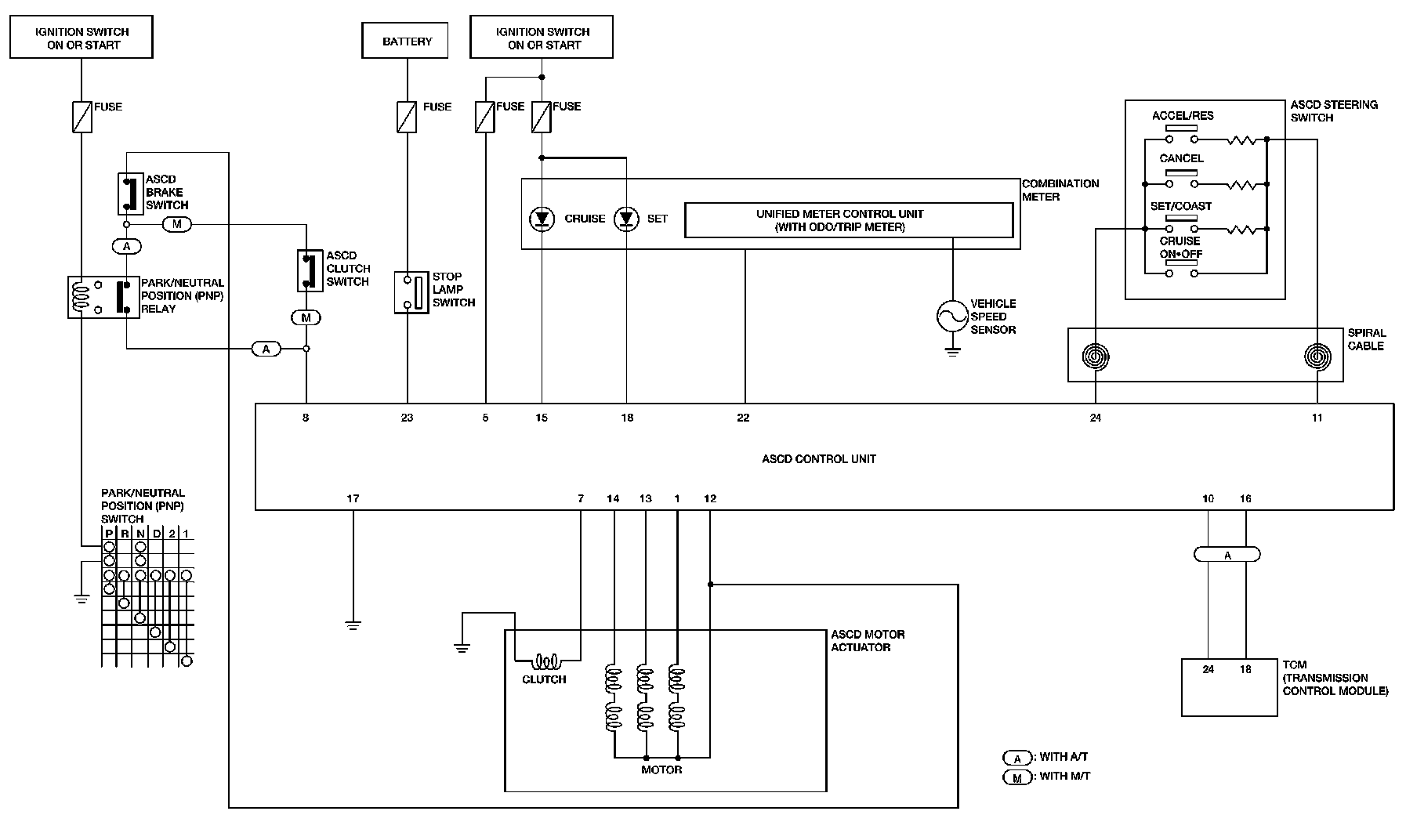

Automatic Speed Control Device Schematic:
