Sentra SE-R Spec V L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Cranking Signal
Cranking Signal

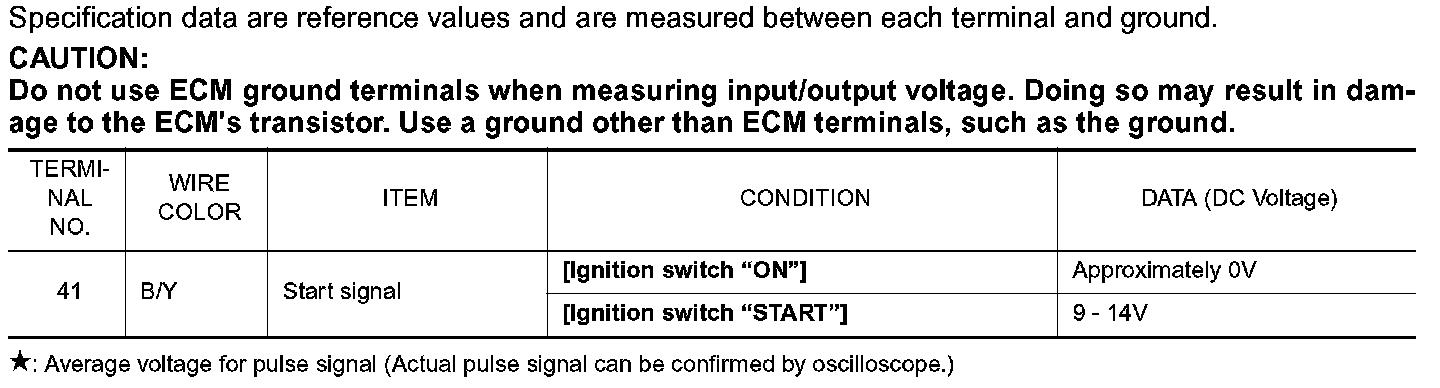

EC-S/SIG-01 Connector Views:
