Home
>>
Nissan-Datsun
>>
2002
>>
Sentra SE-R Spec V L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

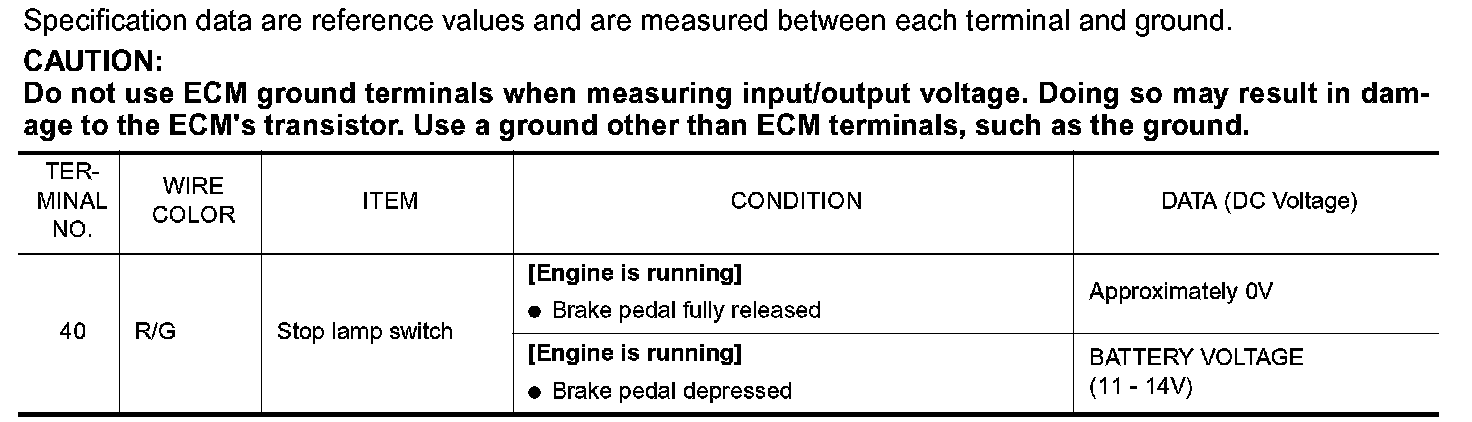

Brake Light Switch
Brake Light Switch

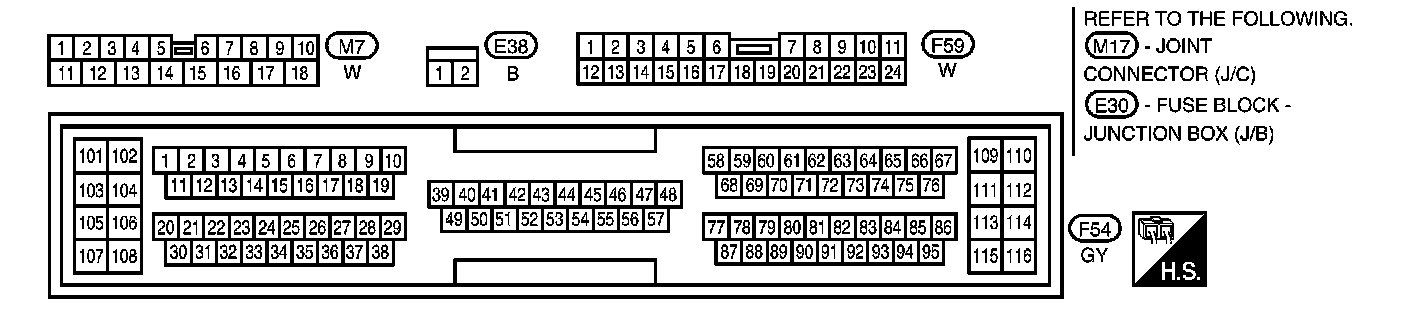

EC-BRK/SW-01 Connector Views:
