Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2002
>>
Sentra SE-R Spec V L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Power Trunk / Liftgate Lock Actuator
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

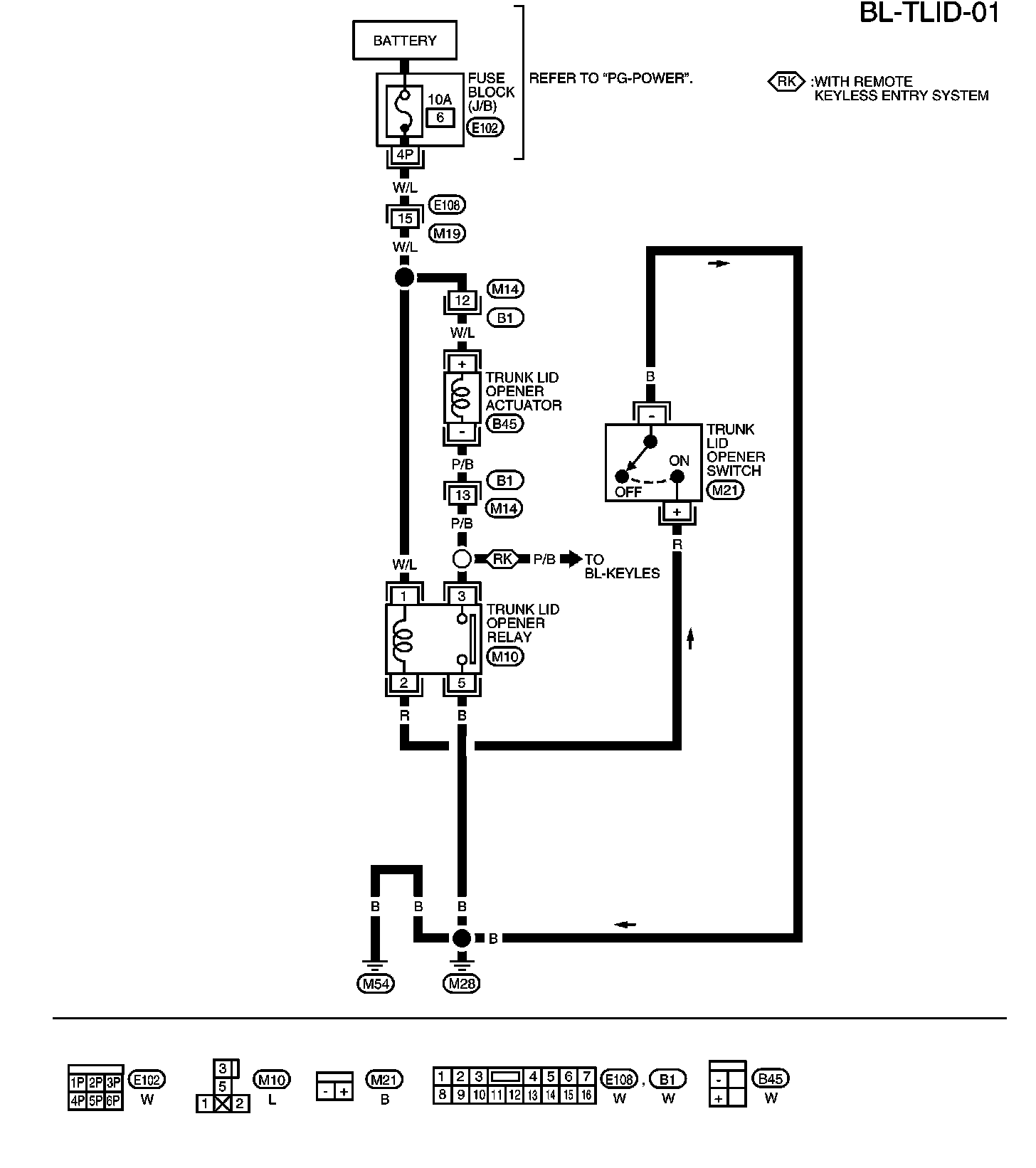

BL-TLID-01:
