Stabilizer Bar: Service and Repair

Removal and Installation

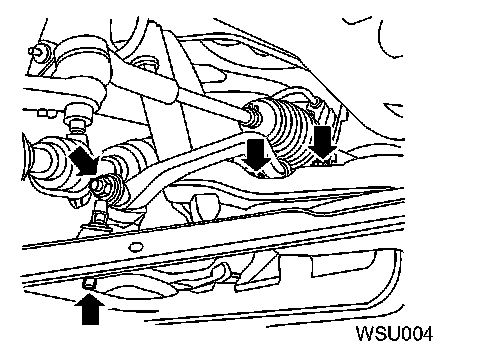

^ Remove four stabilizer bar mounting nuts from each side.

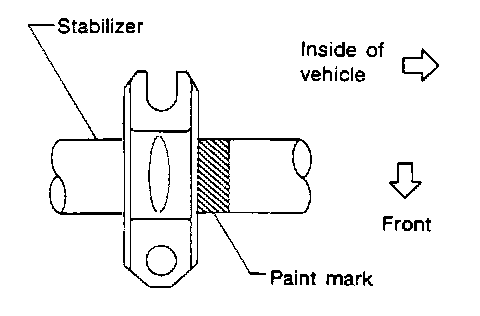

^ When installing stabilizer, make sure the paint mark and clamp face in their correct directions.

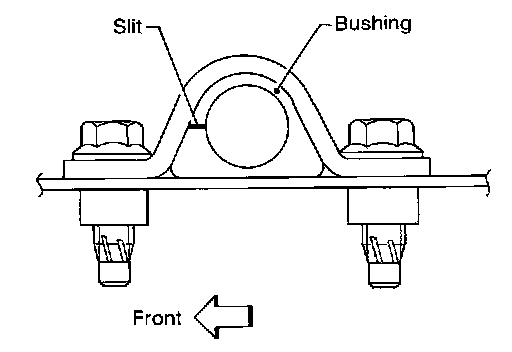

^ Make sure that the slit in the bushing is in the position shown.

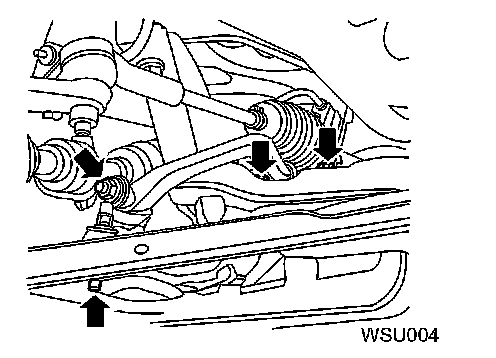

^ Install four stabilizer bar mounting nuts at each side.

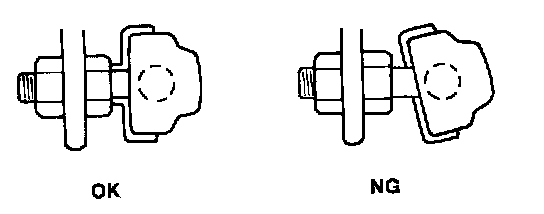

^ Install stabilizer bar with ball joint socket properly placed.
^ Check stabilizer for deformation or cracks and replace if necessary.
^ Check rubber bushings for deterioration or cracks and replace if necessary.

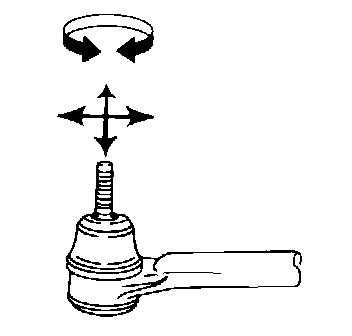

^ Check ball joint can rotate in all directions. If movement is not smooth and free, replace stabilizer bar connecting rod.
