Rear Seat Belt

Rear Seat Belt:

Rear Seat Belt:

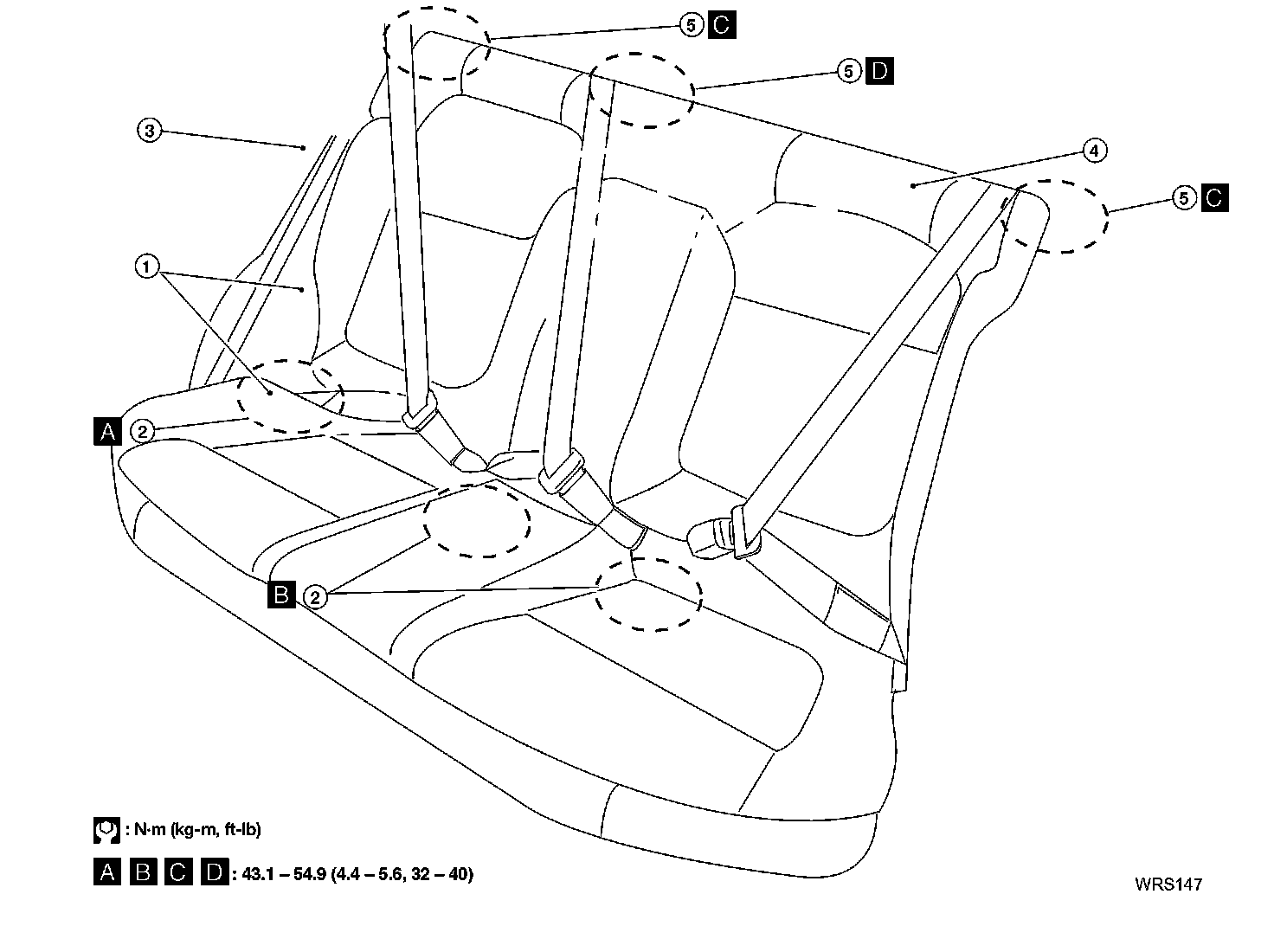

Removal and Installation
1. Remove rear seat. Refer to "REAR SEAT" for details.

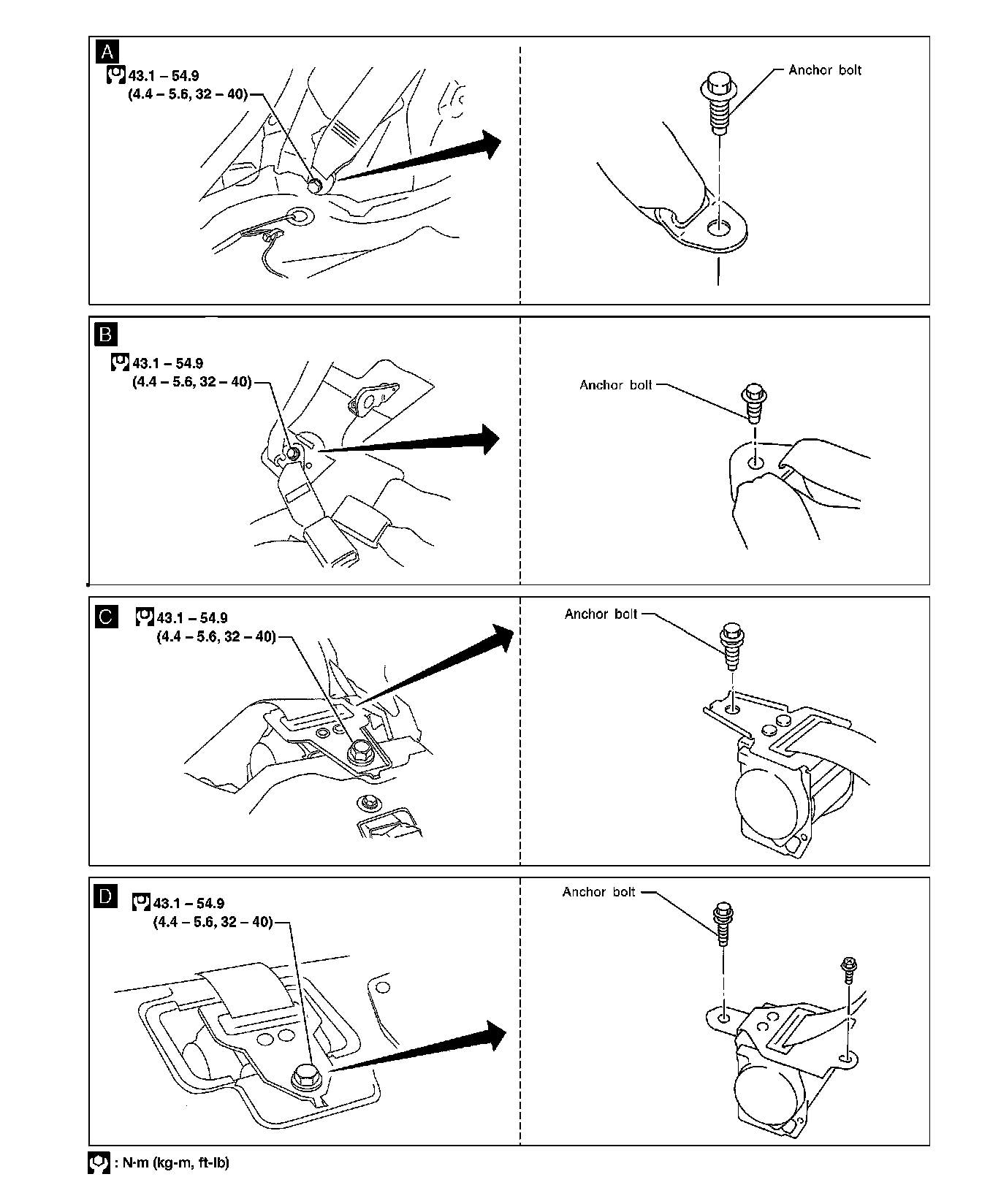

2. Remove outer and floor anchor bolt. [A] [B]
3. Remove rear side garnish. Refer to "SIDE AND FLOOR TRIM" for details.
4. Remove rear parcel shelf finisher. Refer to "SIDE AND FLOOR TRIM" for details.
5. Remove bolts securing rear seat belt retractor, then remove seat belt and seat belt retractor. [C] [D]
