Top Tether Strap Child Restraint

TOP TETHER STRAP CHILD RESTRAINT

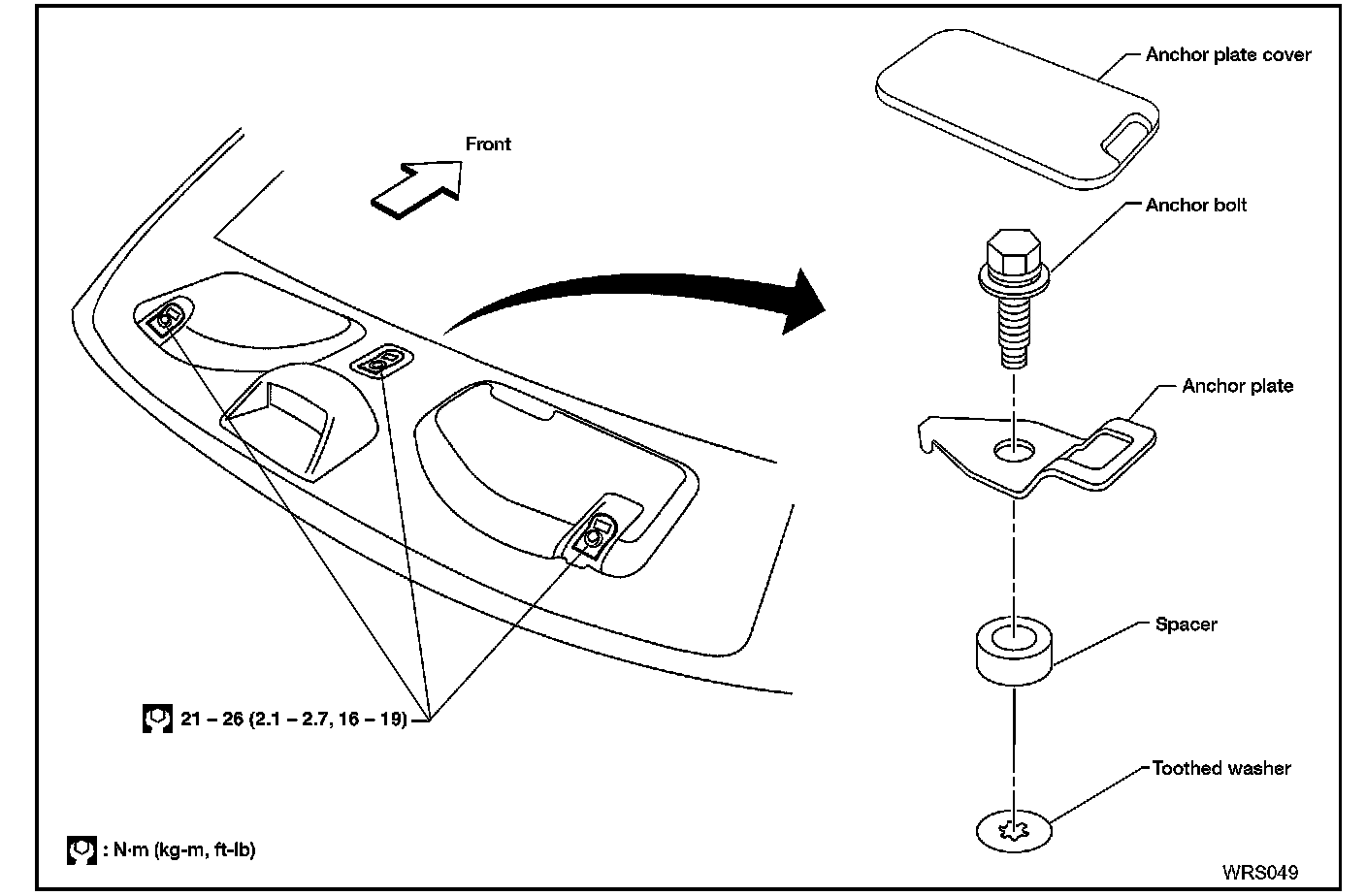

Removal and Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

1. Remove anchor plate cover. Refer to "SIDE AND FLOOR TRIM" for details.
2. Remove anchor plate.

NOTE:
- To install, reverse the removal procedure sequence.
