Nissan-Datsun
>>
2002
>>
Sentra SE-R L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

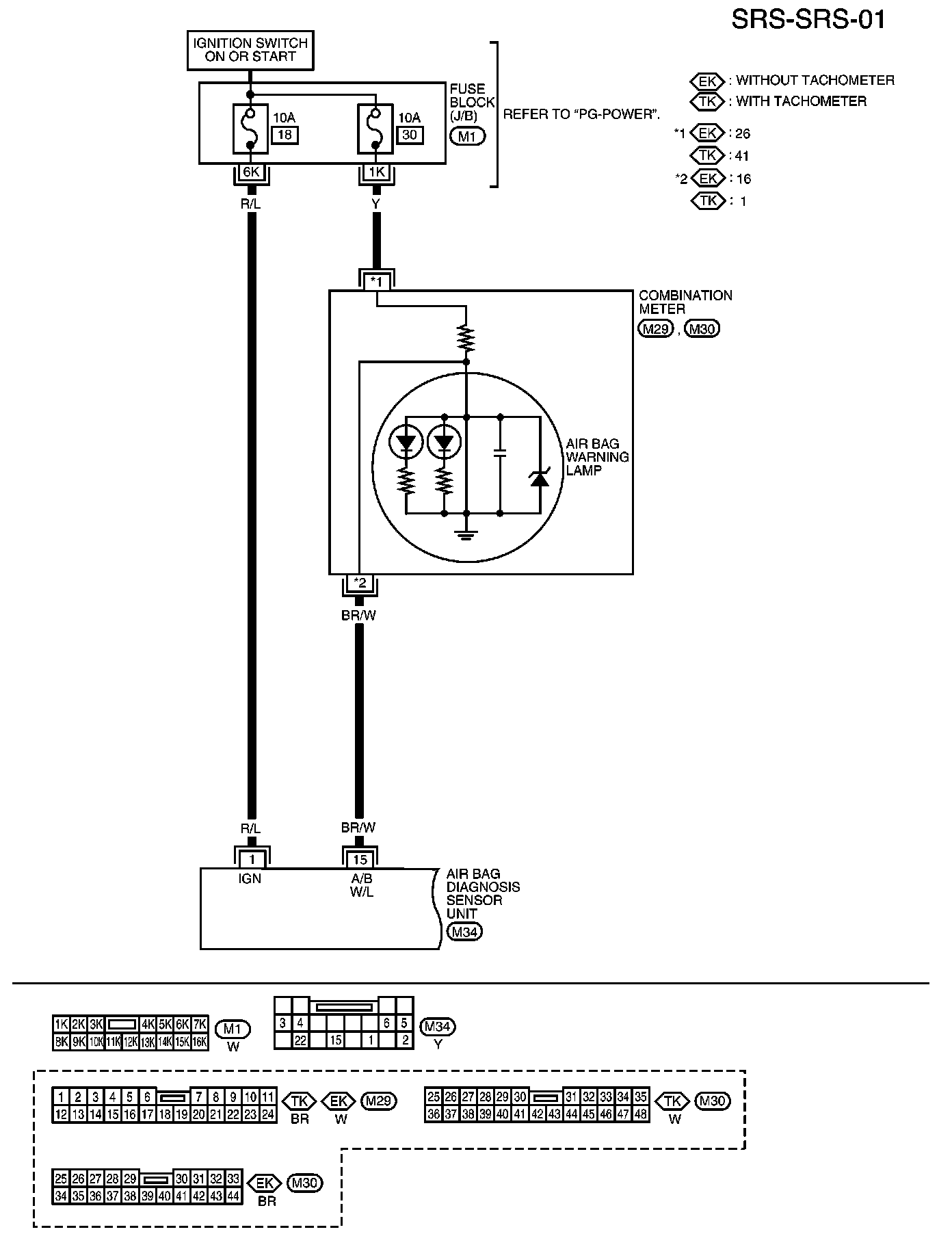

SRS-SRS-01:

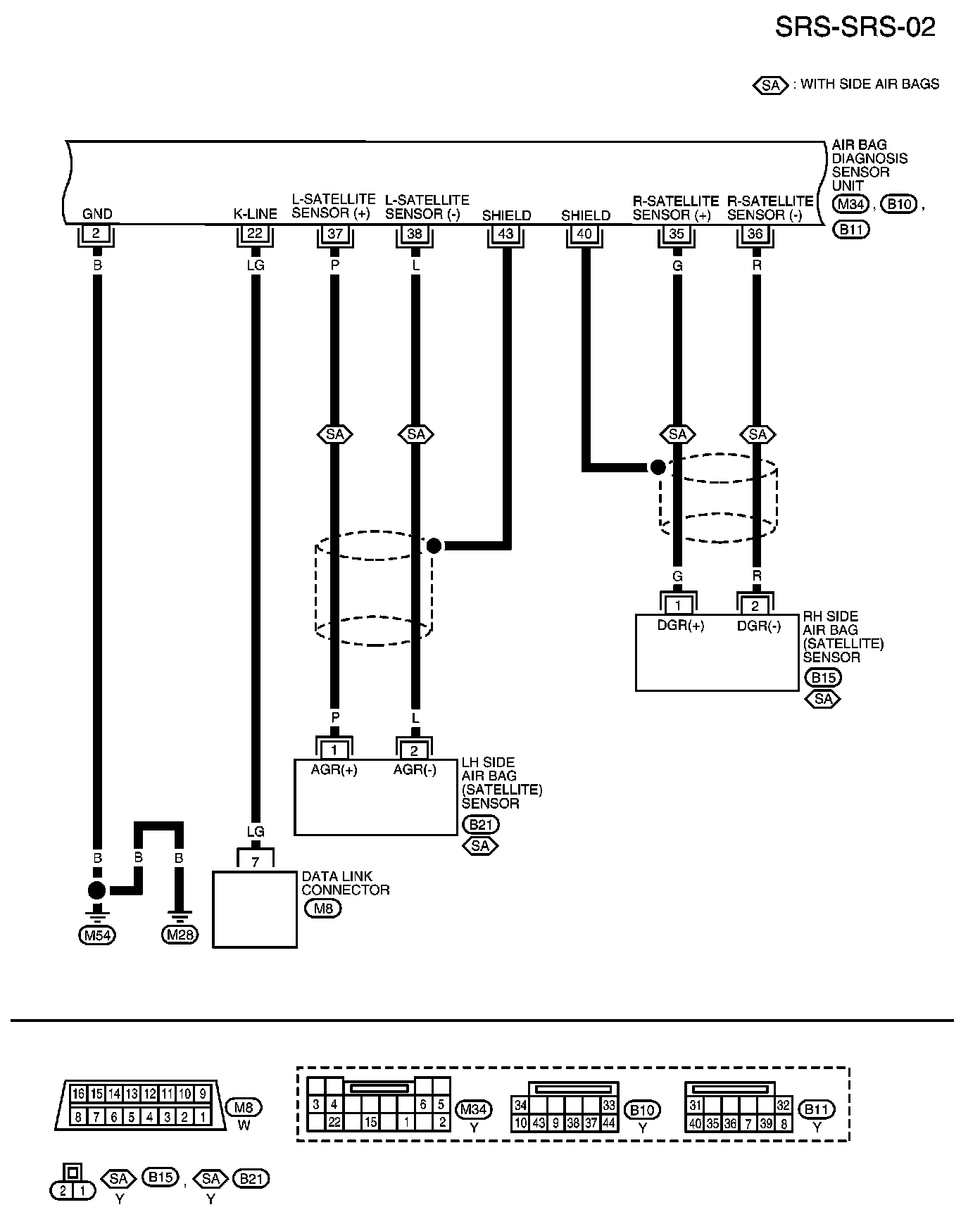

SRS-SRS-02:

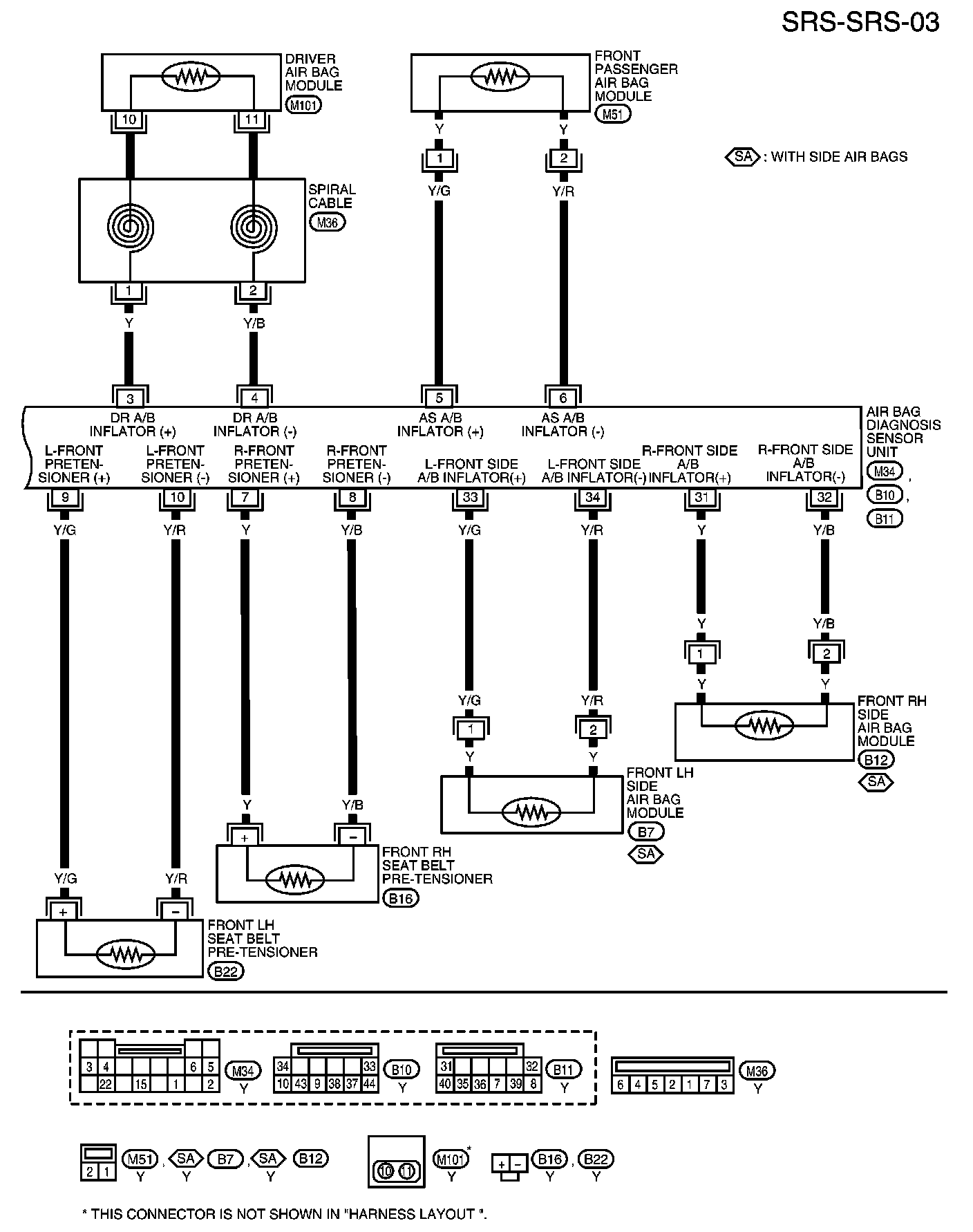

SRS-SRS-03:
