Curiosii for ever!: Car repair manuals for everyone.
Home >> Nissan-Datsun >> 2002 >> Sentra SE-R L4-2.5L (QR25DE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

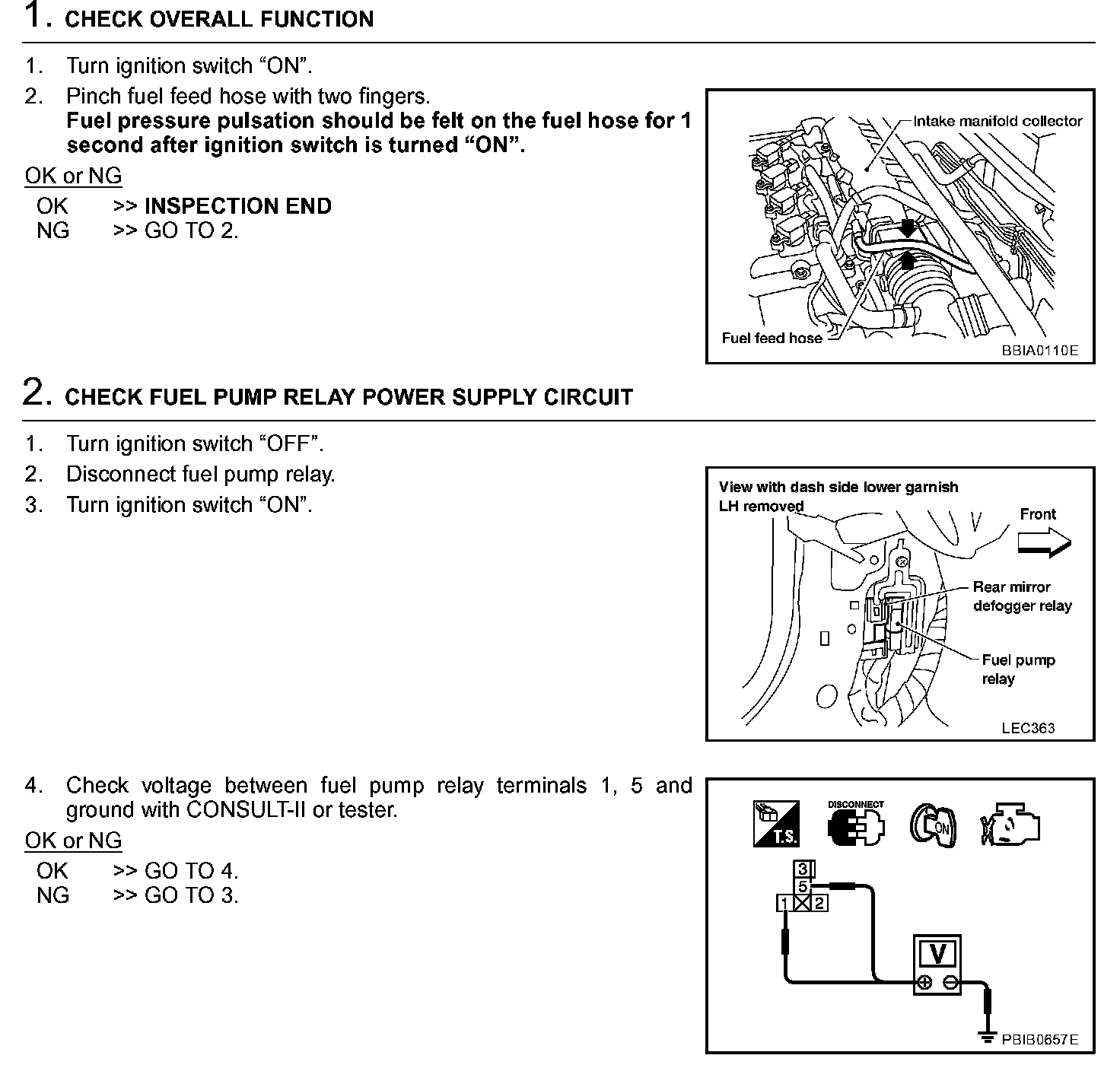

Step 1 - 2:

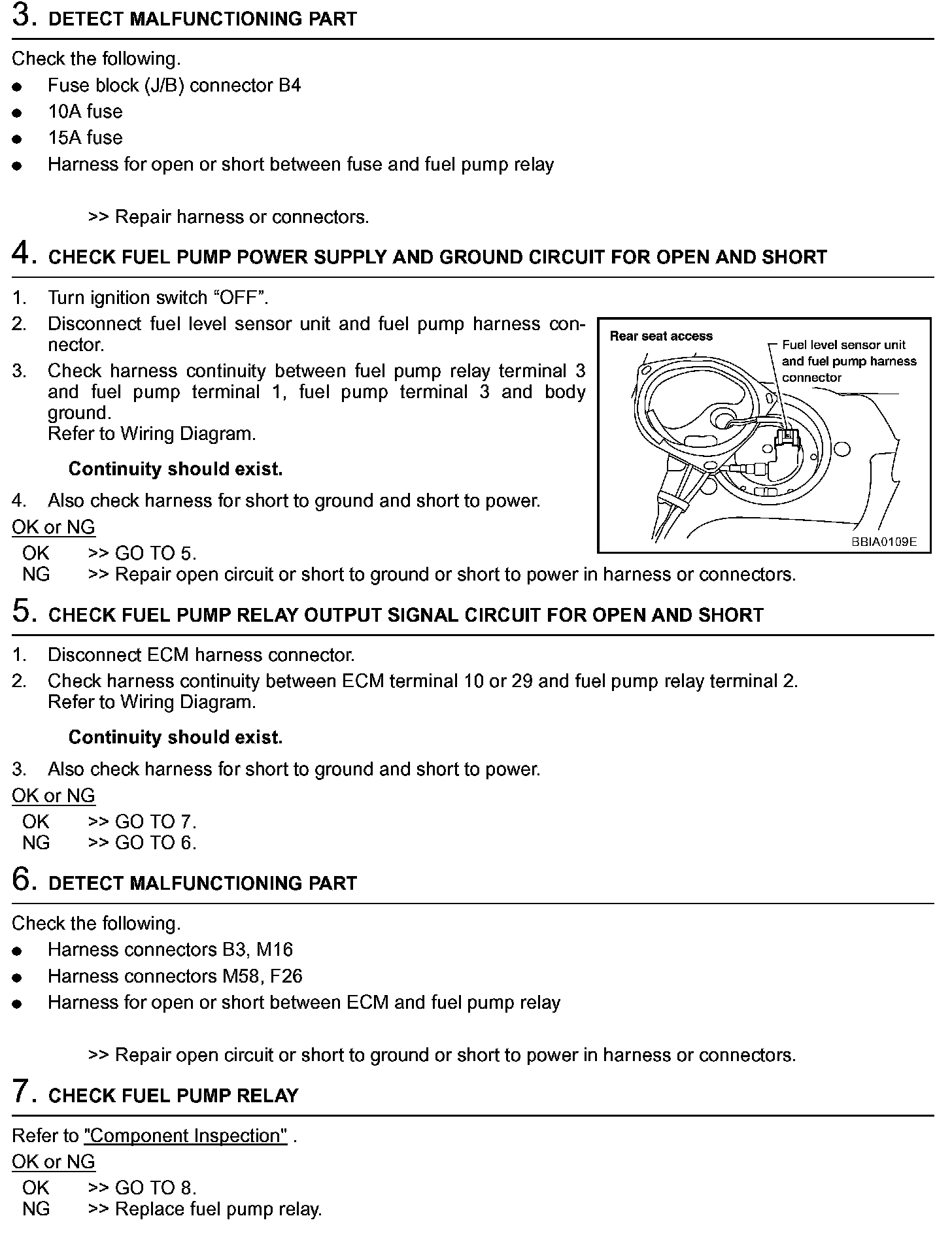

Step 3 - 7:

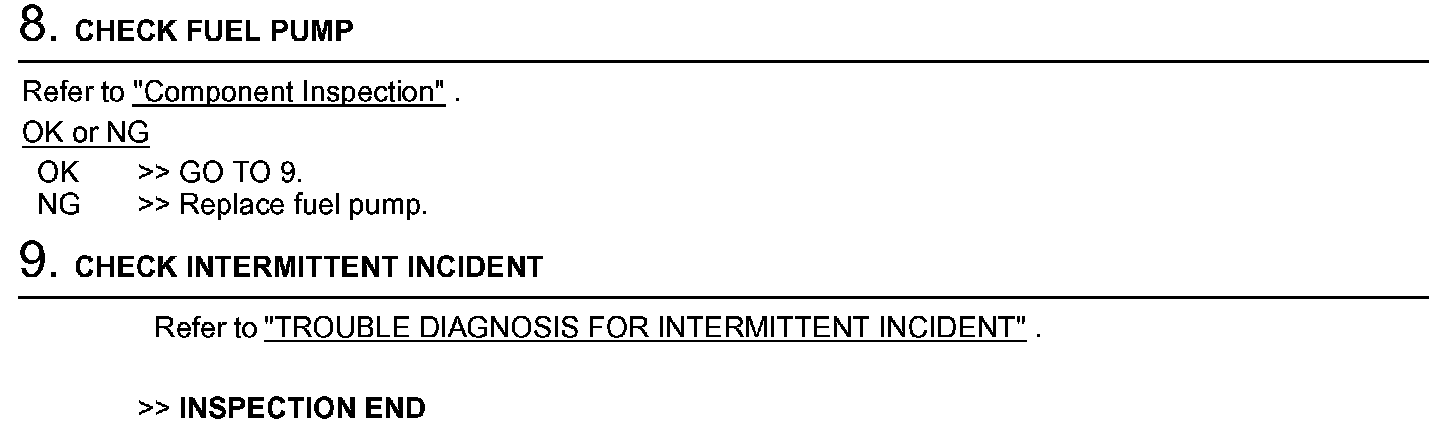

Step 8 - 9:
