Nissan-Datsun
>>
2002
>>
Sentra SE-R L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Accelerator Pedal Position Sensor
>>
Diagrams
>>
Connector Views
>>
EC-APPS1
EC-APPS1

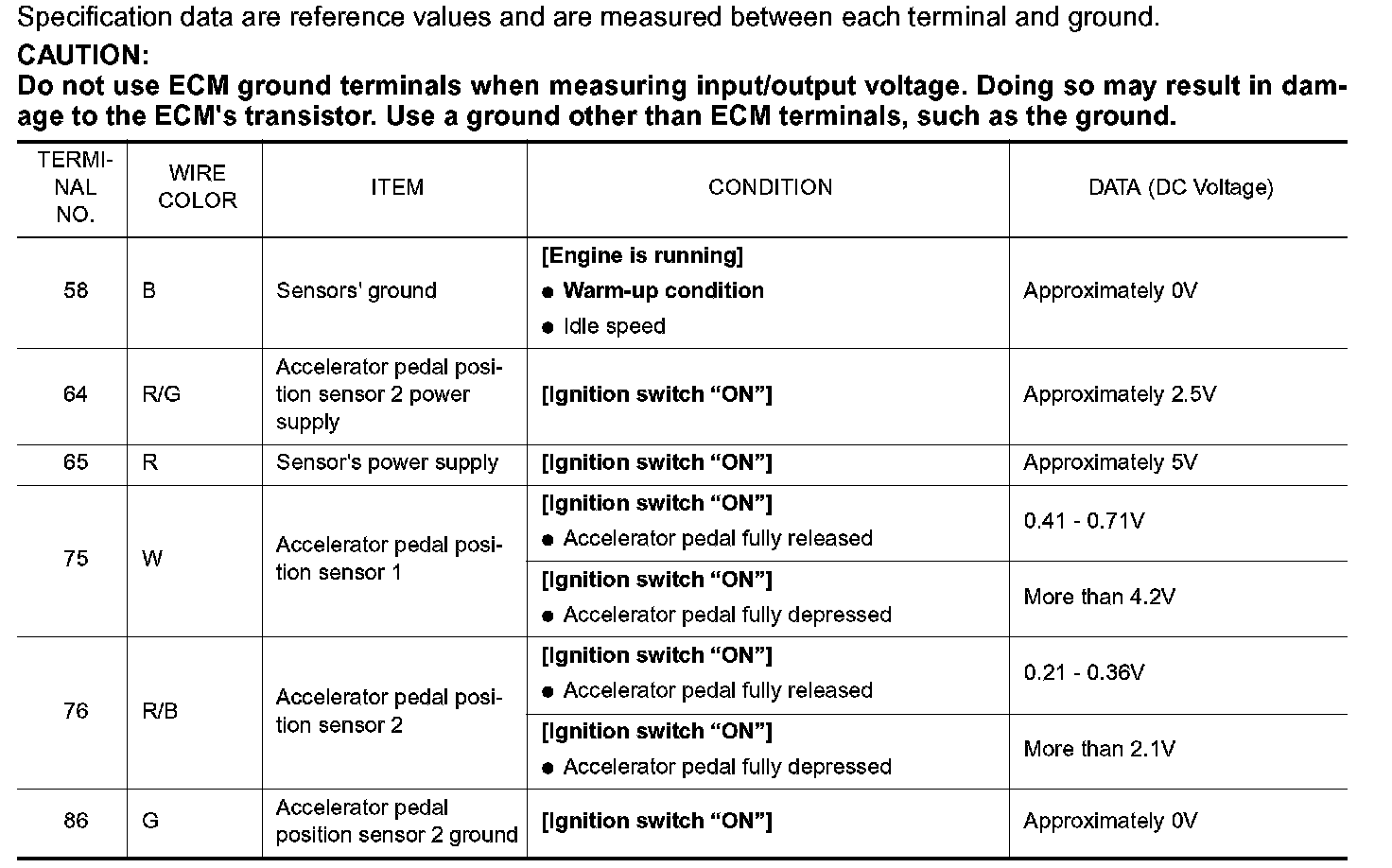

EC-APPS1-01 Connector Views:
