Nissan-Datsun
>>
2002
>>
Sentra SE-R L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Non-Trouble Code Procedures
>>
With Power Door Locks
>>
Diagnostic Procedure 2
Diagnostic Procedure 2

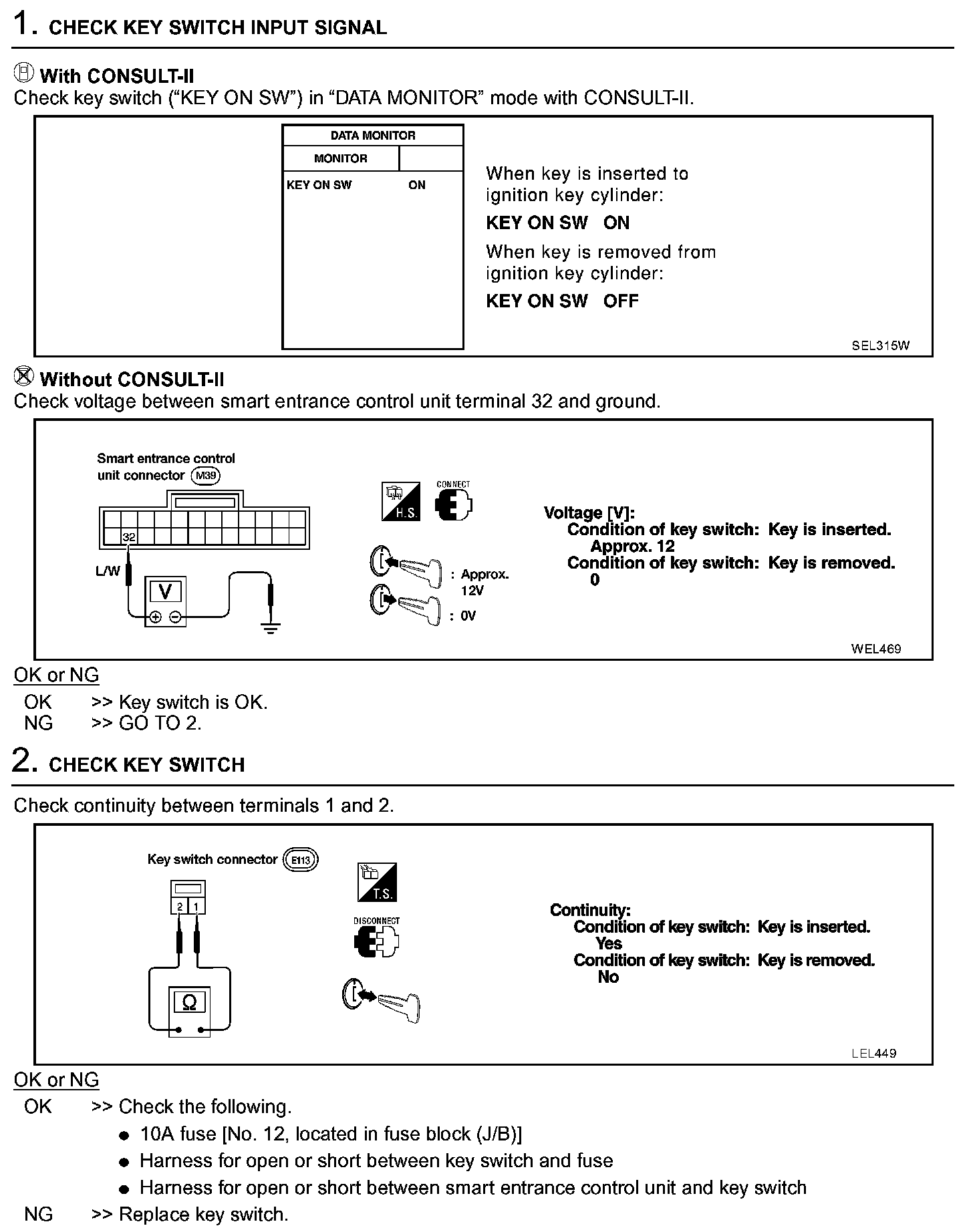

Diagnostic Procedure 2 (Key Switch Insert Signal Check) Step 1 - 2:
