Home >> Nissan-Datsun >> 2002 >> Sentra SE-R L4-2.5L (QR25DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> EC Diagrams (Engine Control System) >> EC-VIAS

EC-VIAS

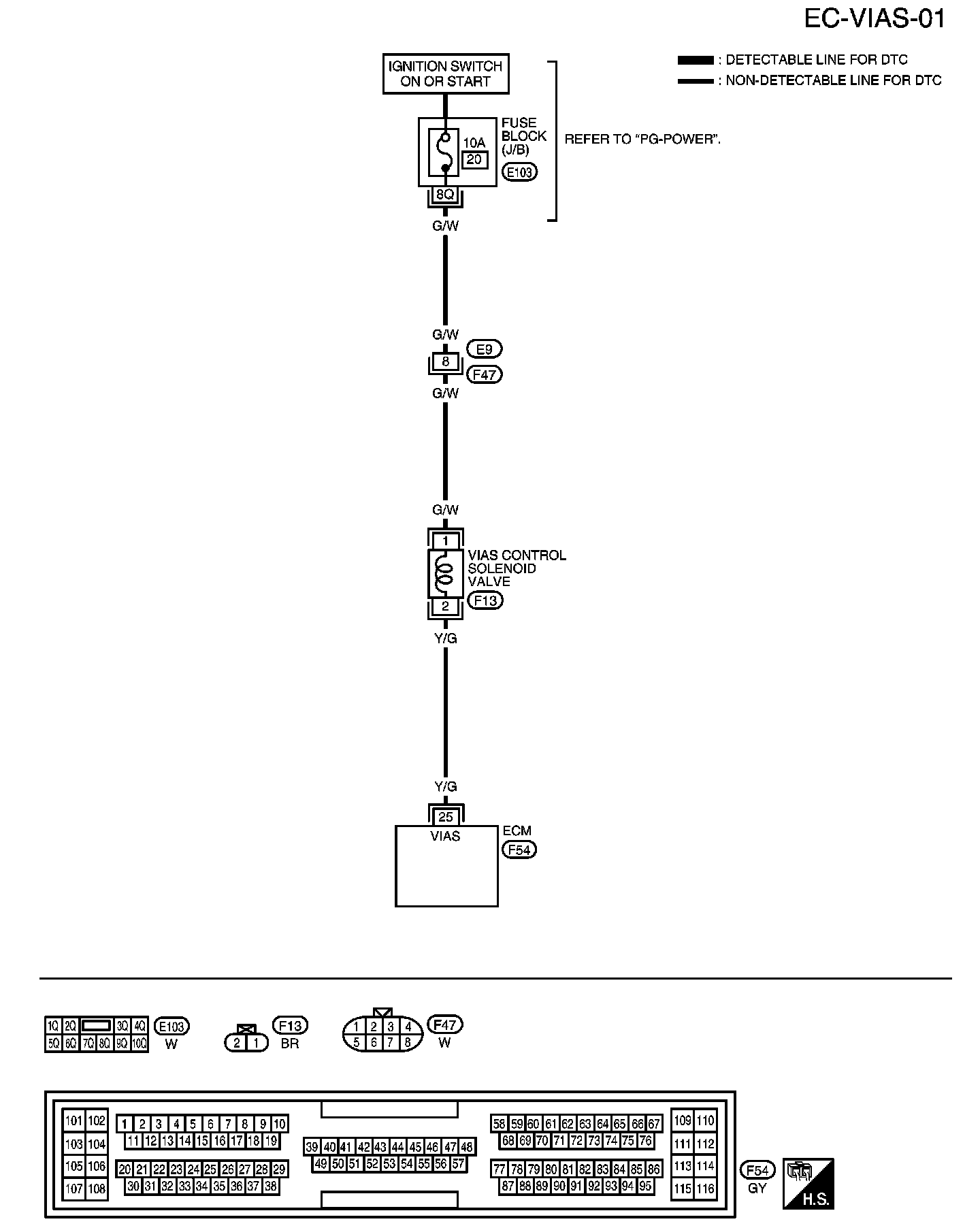

EC-VIAS-01:
