Home
>>
Nissan-Datsun
>>
2002
>>
Sentra SE-R L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
Vehicle Speed Sensor

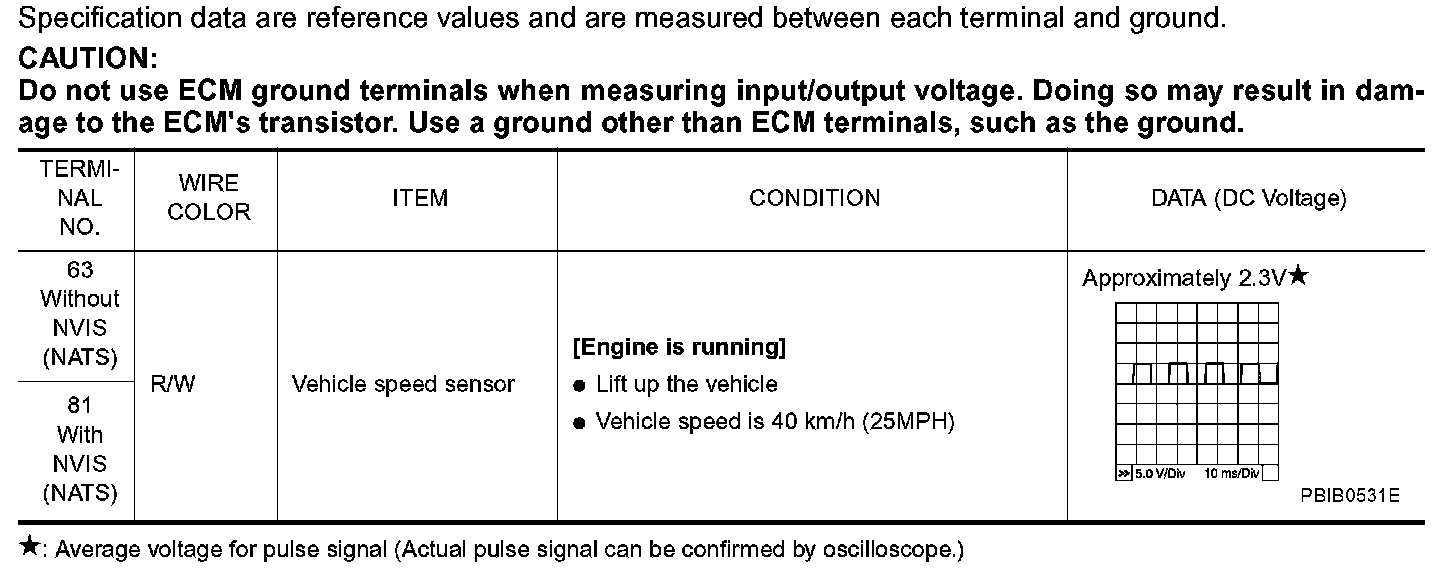

EC-VSS-01 Connector Views:
