Side and Floor Trim

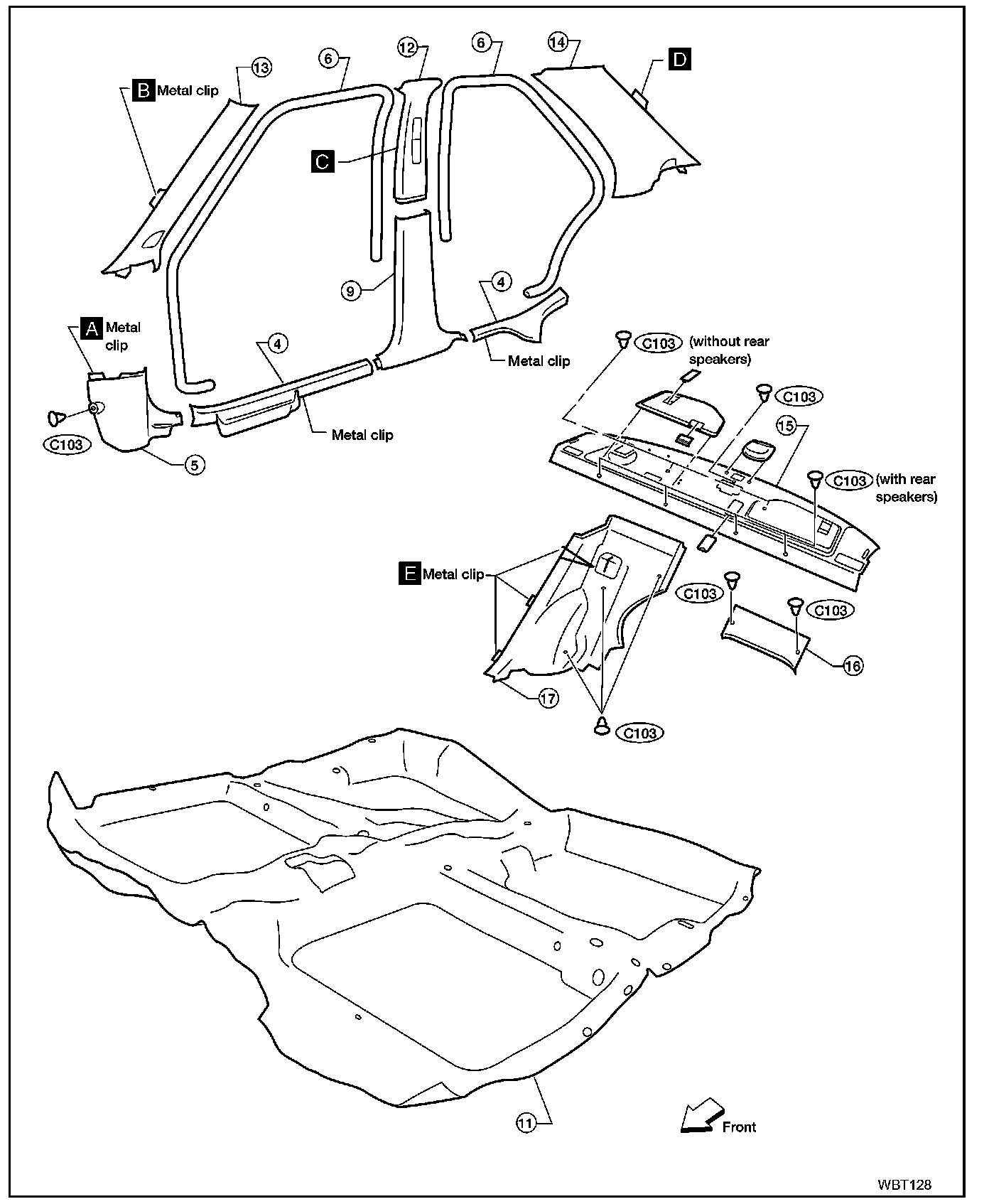

SIDE AND FLOOR TRIM / Part 1:

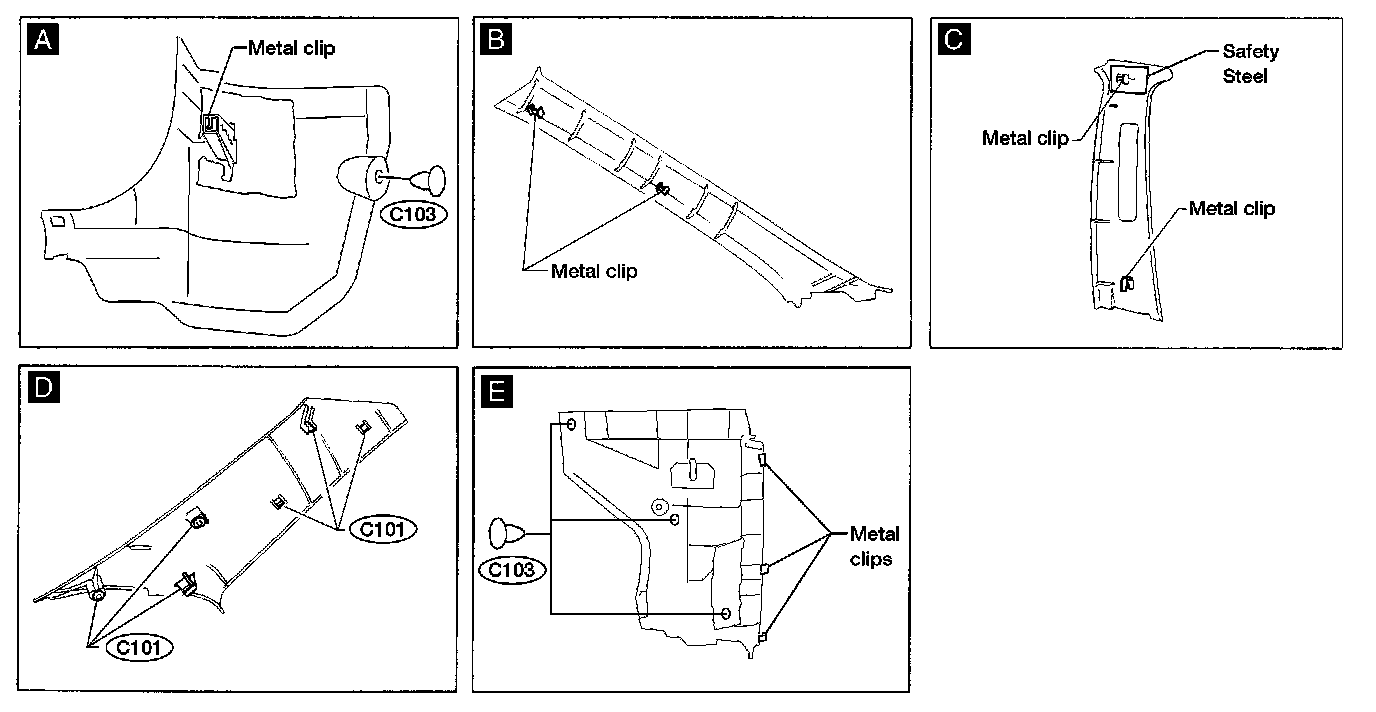

SIDE AND FLOOR TRIM / Part 2:

Removal and Installation

CAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

1. Remove A/T finisher or M/T shift lever boot. Refer to "Removal and Installation".
2. Remove the console. Refer to "Removal and Installation".
3. Remove front and rear seats. Refer to "Removal and Installation" (front), or "Removal and Installation" (rear).
4. Remove kick plates.
5. Remove dash side lower garnish. A
6. Remove body side welts.
7. Remove front seat belt floor anchor bolt. Refer to "Removal and Installation".
8. Remove rear seat belt floor anchor bolt. Refer to "Removal and Installation".
9. Remove center pillar lower garnish.
10. Remove adjuster cover and pillar shoulder bolt. Refer to "Removal and Installation".
11. Remove floor carpet.
12. Remove center pillar upper garnish. C
13. Remove front pillar garnish. B
14. Remove rear pillar garnish. D
15. Remove parcel shelf.
16. Remove center rear seat back finisher.
17. Remove side rear seat back finishers. E
