Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Variable Induction System >> Variable Induction Control Valve >> Diagrams >> Connector Views >> EC-SWL/V

EC-SWL/V

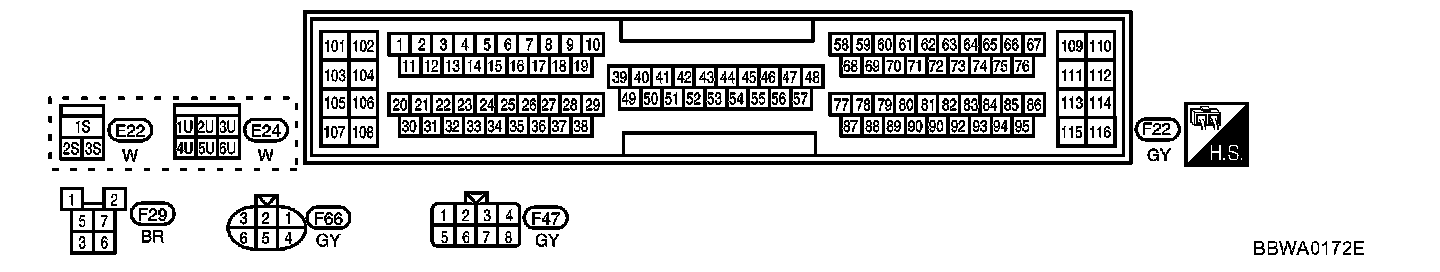

EC-SWL/V-01 Connector Views:

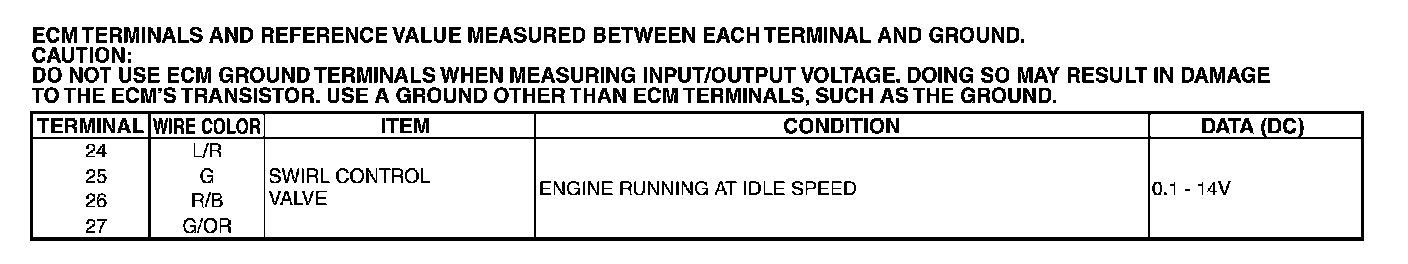

ECM Terminals And Reference Value:
