Home
>>
Nissan-Datsun
>>
2002
>>
Sentra CA (Clean Air) L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Variable Valve Timing Actuator Position Sensor
>>
Diagrams
>>
Connector Views
Connector Views

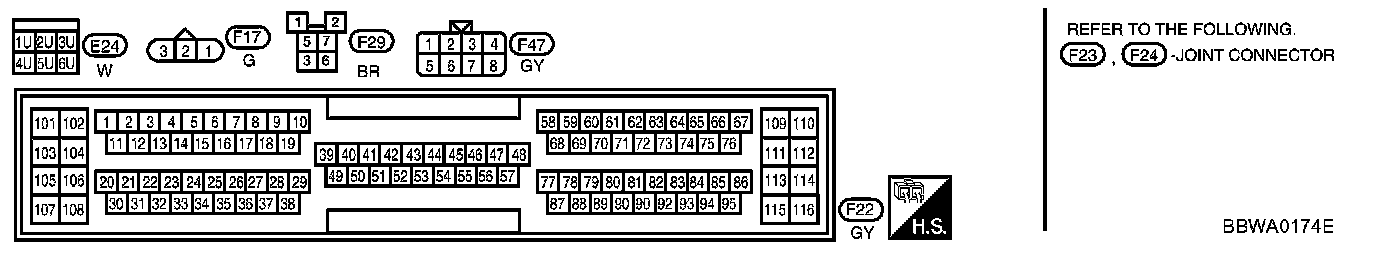

EC-IVCS-01 Connector Views:

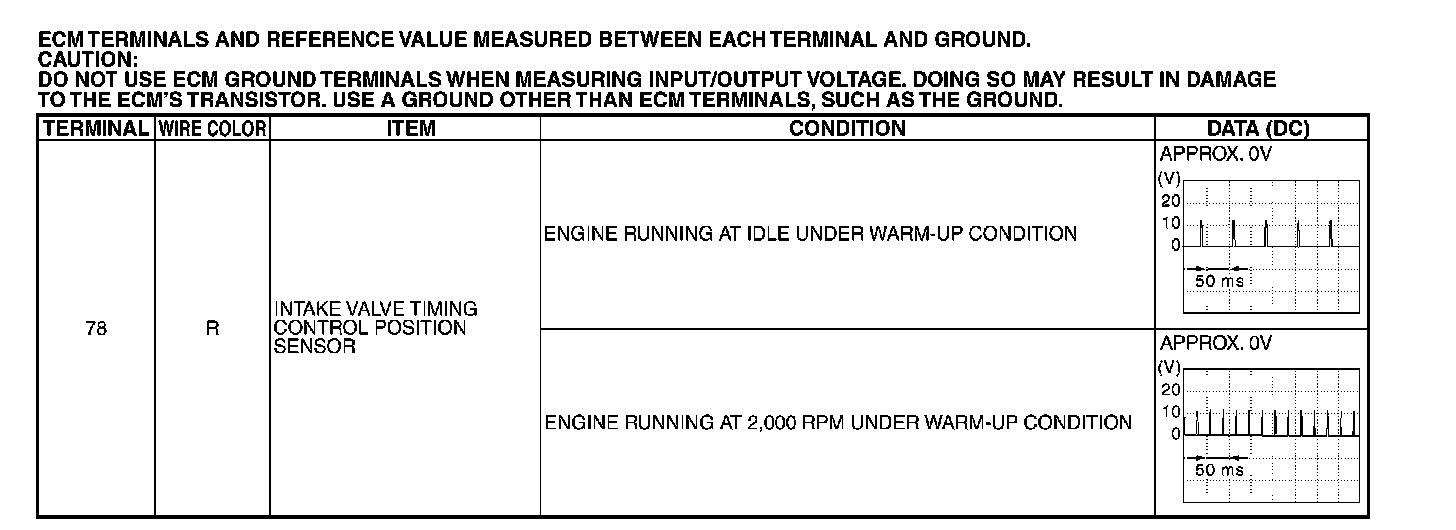

ECM Terminals And Reference Value:
