Home >> Nissan-Datsun >> 2002 >> Maxima SE V6-3.5L (VQ35) >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor Relay >> Locations

Blower Motor Relay: Locations

Passenger Compartment / With Auto A/C:

Passenger Compartment Locations Overall View:

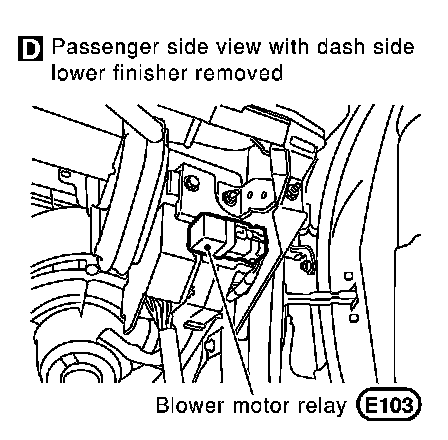

Component View D:
