Evaporative Emission Control Canister: Service and Repair

Tightening Torque

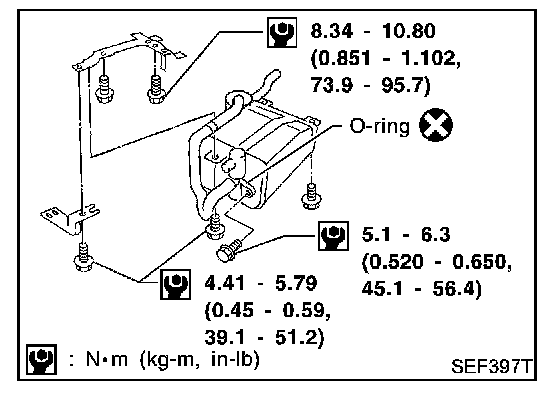

Tighten EVAP canister as shown in the figure.

Make sure new O-ring is installed properly between EVAP canister and EVAP canister vent control valve.
