Nissan-Datsun
>>
2002
>>
Maxima GLE V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Power Steering Pressure Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

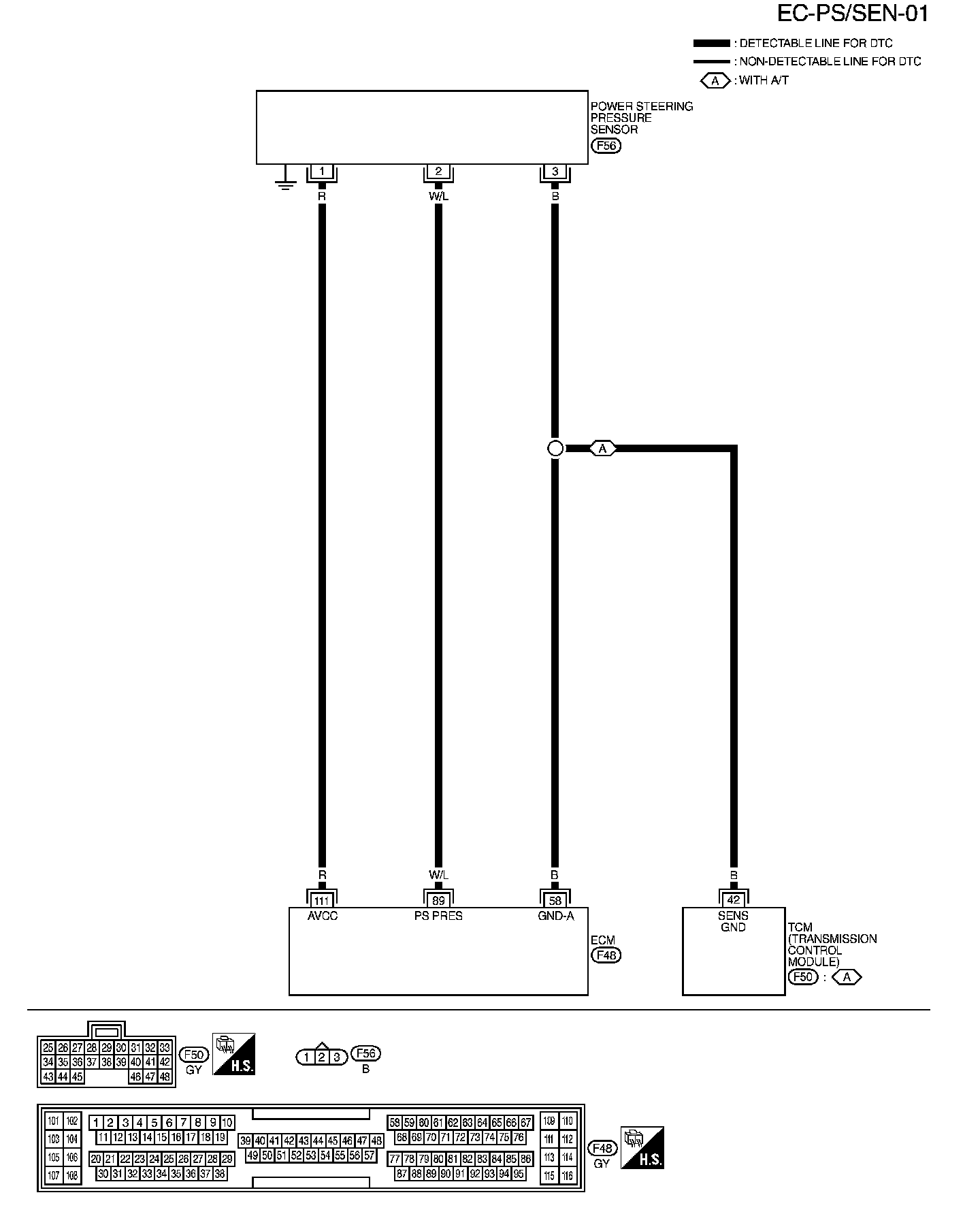

EC-PS/SEN-01:
