Turn Signal Flasher: Testing and Inspection

Electrical Components Inspection




COMBINATION FLASHER UNIT CHECK
- Before checking ensure that bulbs meet specifications.

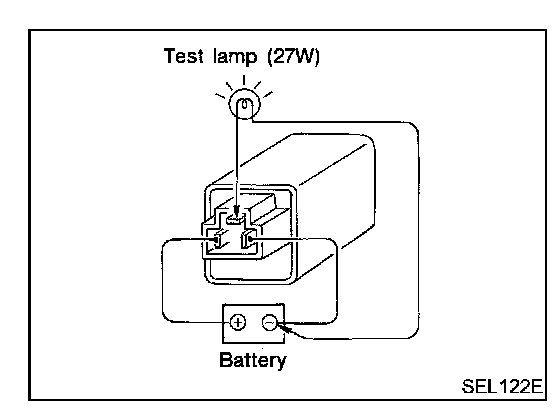

- Connect a battery and test lamp to the combination flasher unit as shown. Combination flasher unit is properly functioning if it blinks when power is supplied to the circuit.
