Test Conditions, Pressure and Discharge Temp

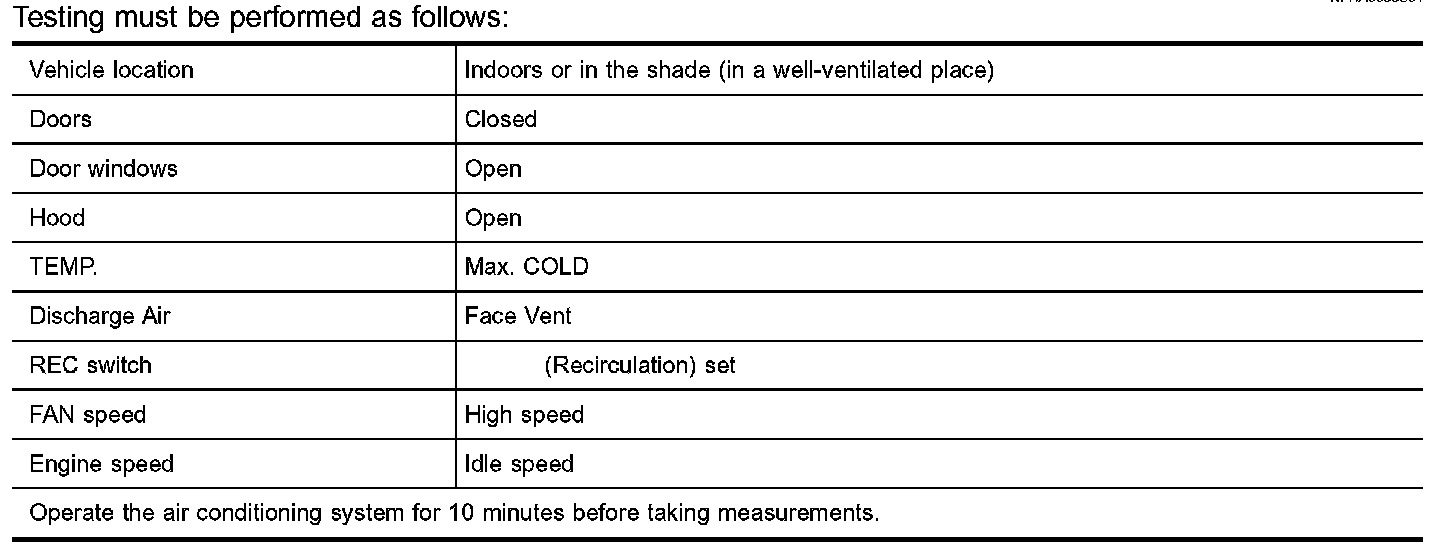

* Manual Air Conditioning System *Test Condition:
Test Conditions

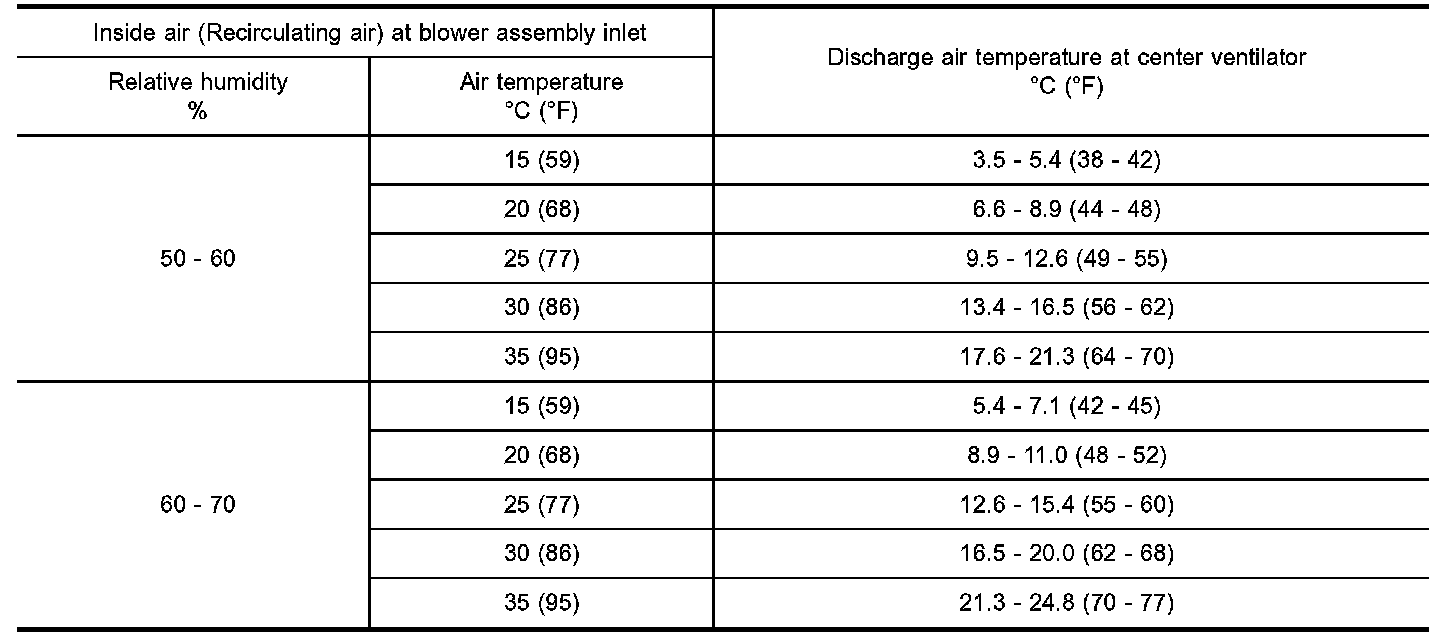

Recirculating-to-discharge Air Temperature Table:

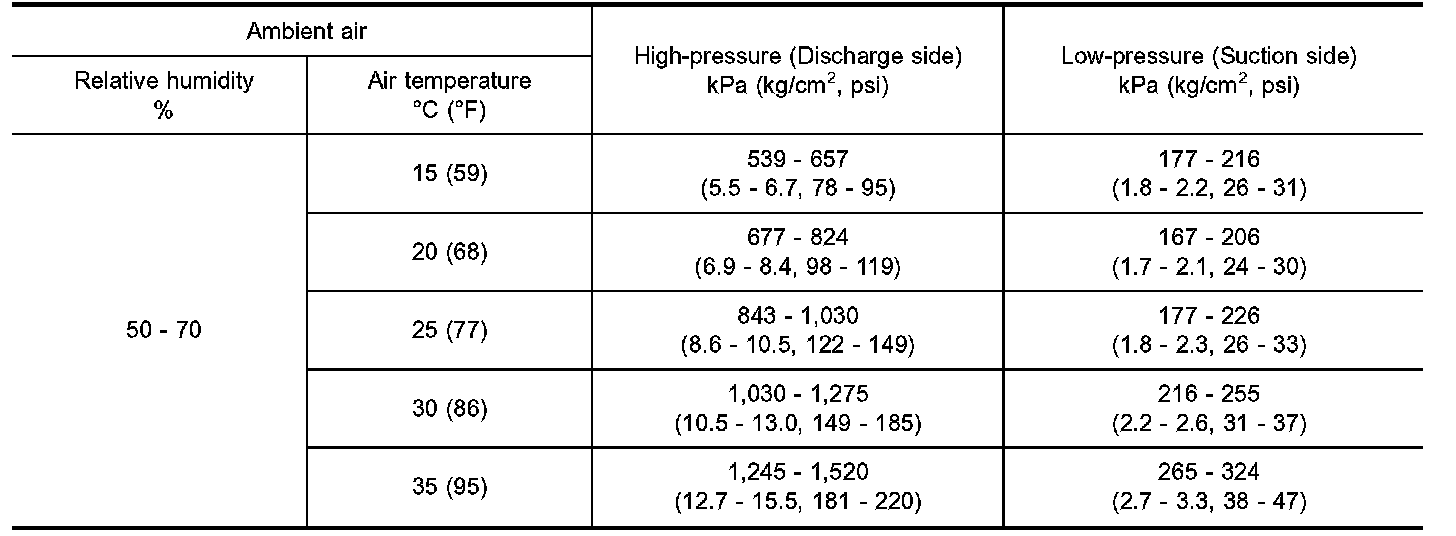

Ambient Air Temperature-to-operating Pressure Table:
Test Reading
Test Conditions
Test Reading
