Test Conditions, Pressure Reading and Discharge Temp
* Automatic Air Conditioning System *Test Condition:
Test Condition

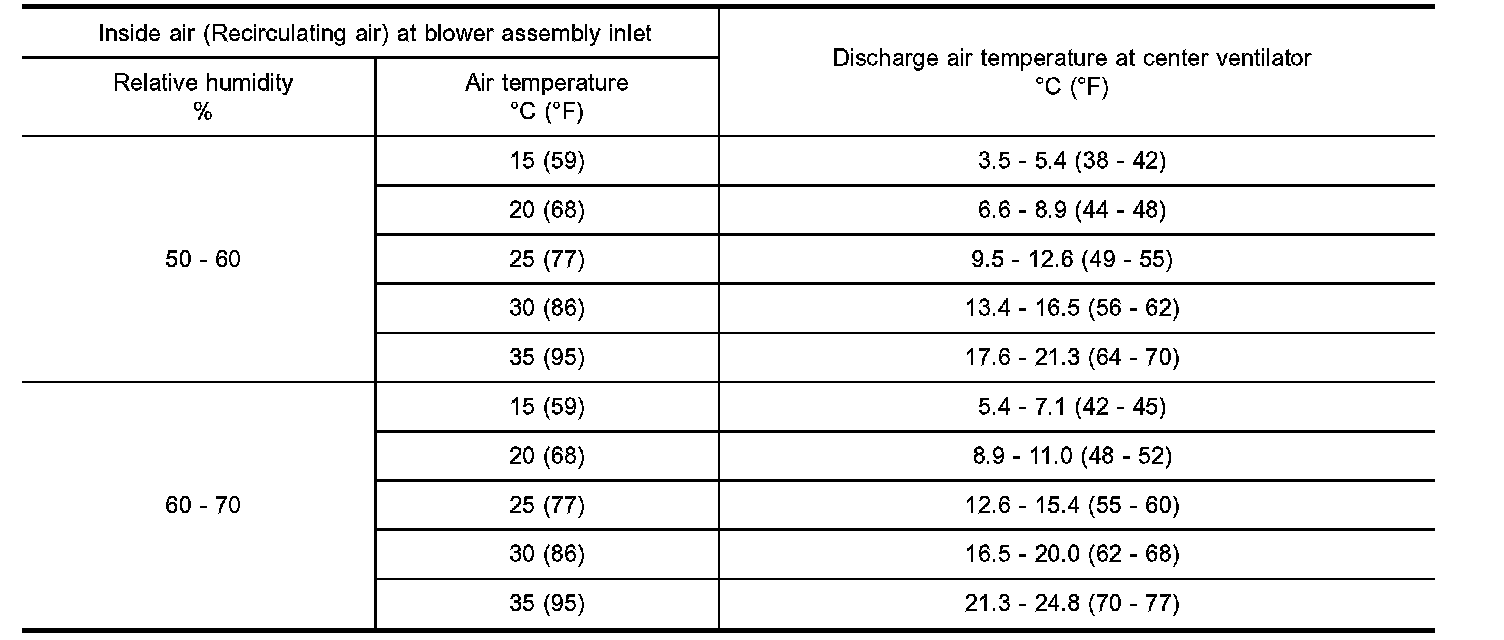

Recirculating-to-discharge Air Temperature Table:

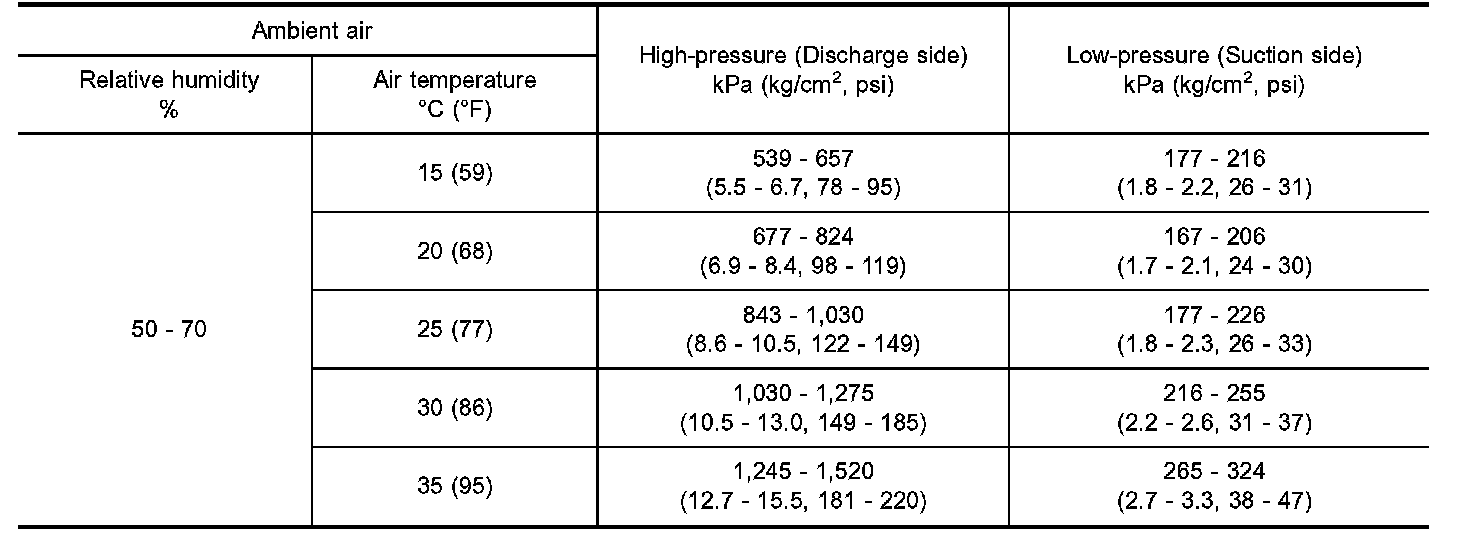

Ambient Air Temperature-to-operating Pressure Table:
Test Reading
Test Condition
Test Reading
