Nissan-Datsun
>>
2002
>>
Maxima GLE V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse
>>
Power Routing Schematics
Power Routing Schematics

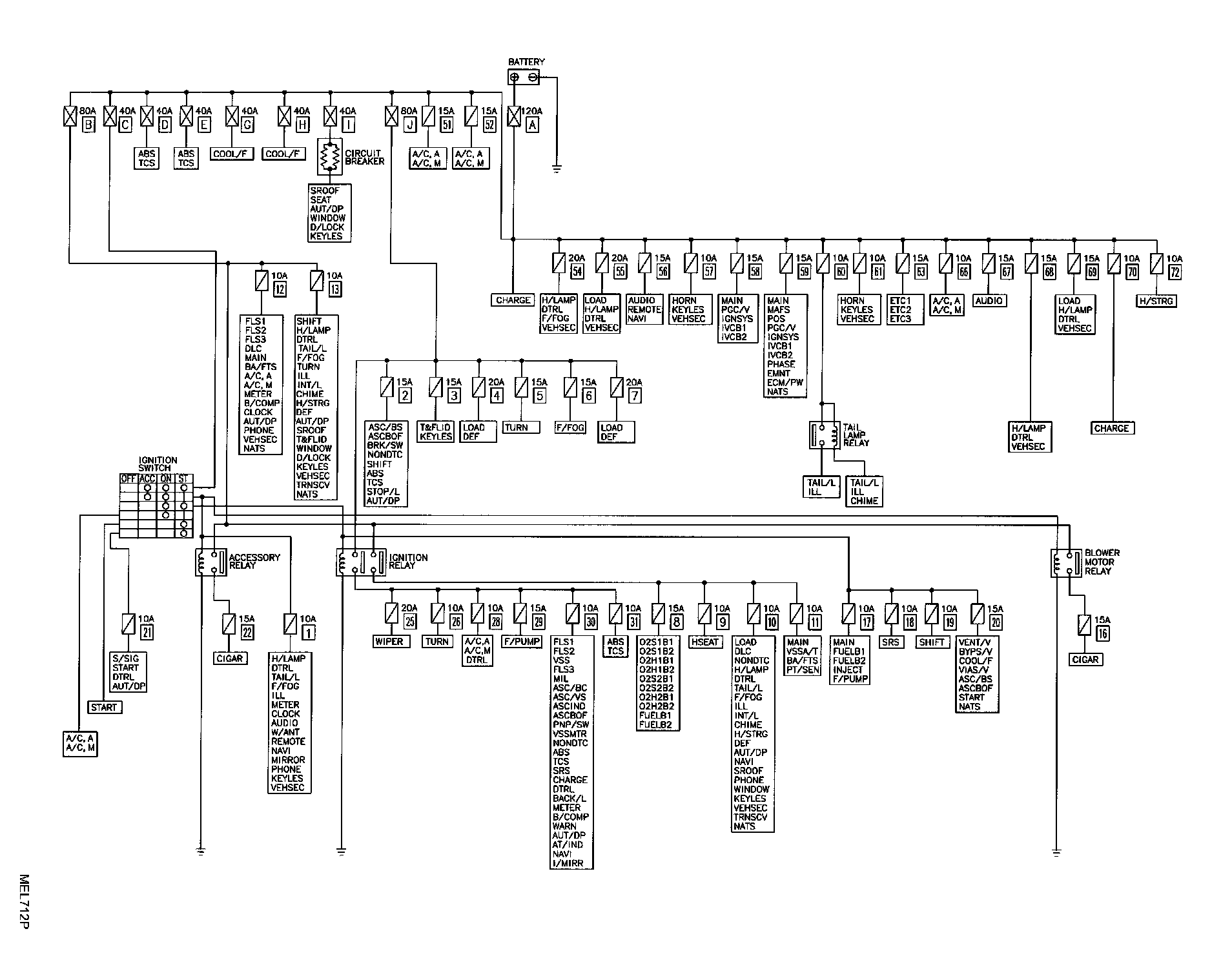

Power Supply Routing Schematic:
