Nissan-Datsun
>>
2002
>>
Maxima GLE V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Navigation System
>>

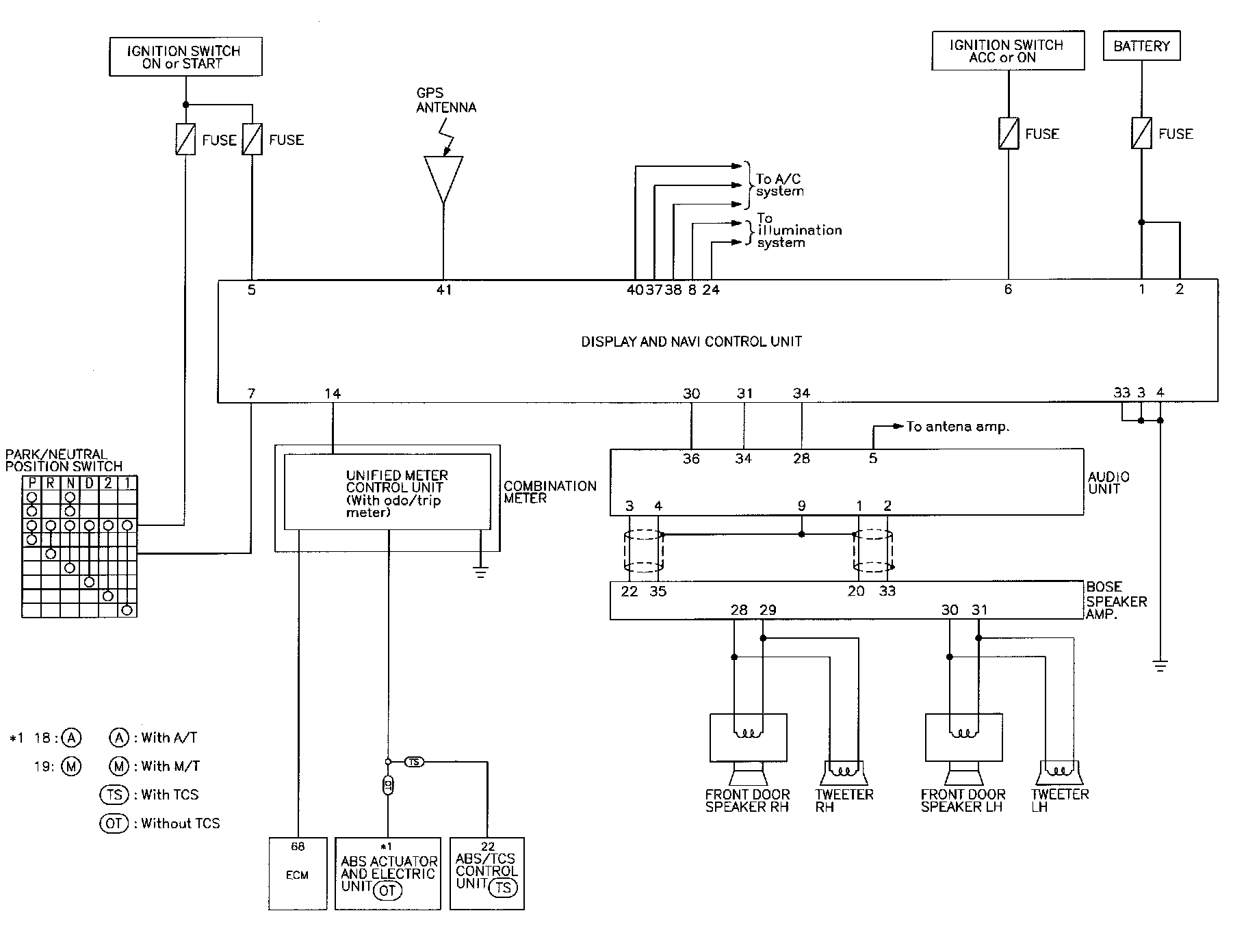

Navigation System Schematic
Navigation System Schematic
Navigation System Schematic:
