Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2002
>>
Maxima GLE V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
>>
Remote Keyless Entry System
>>
Schematics
Schematics

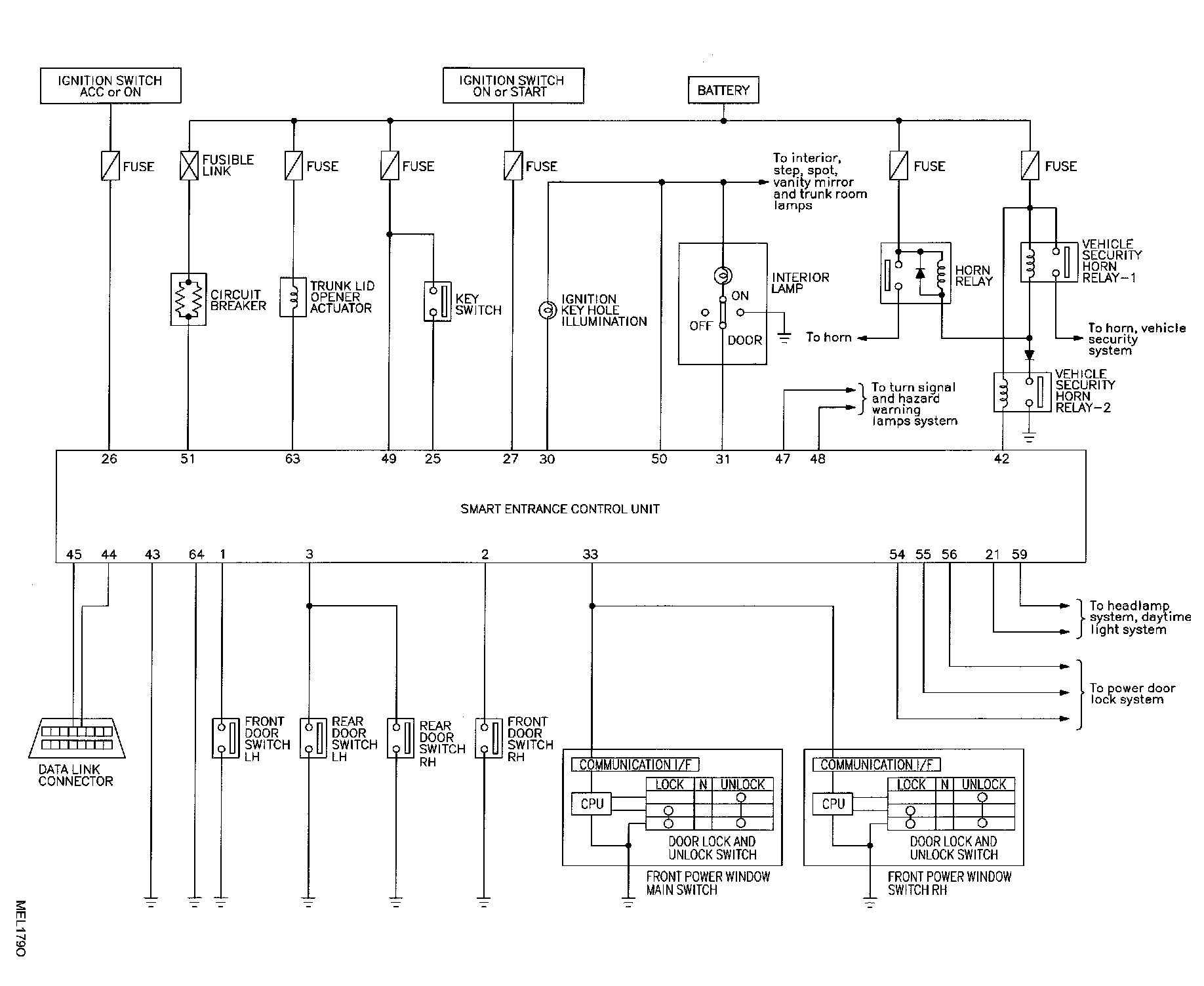

Remote Keyless Entry System Schematic:
