Home >> Nissan-Datsun >> 2002 >> Maxima GLE V6-3.5L (VQ35) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Wiring >> TCS

TCS

Wiring Diagram-TCS -

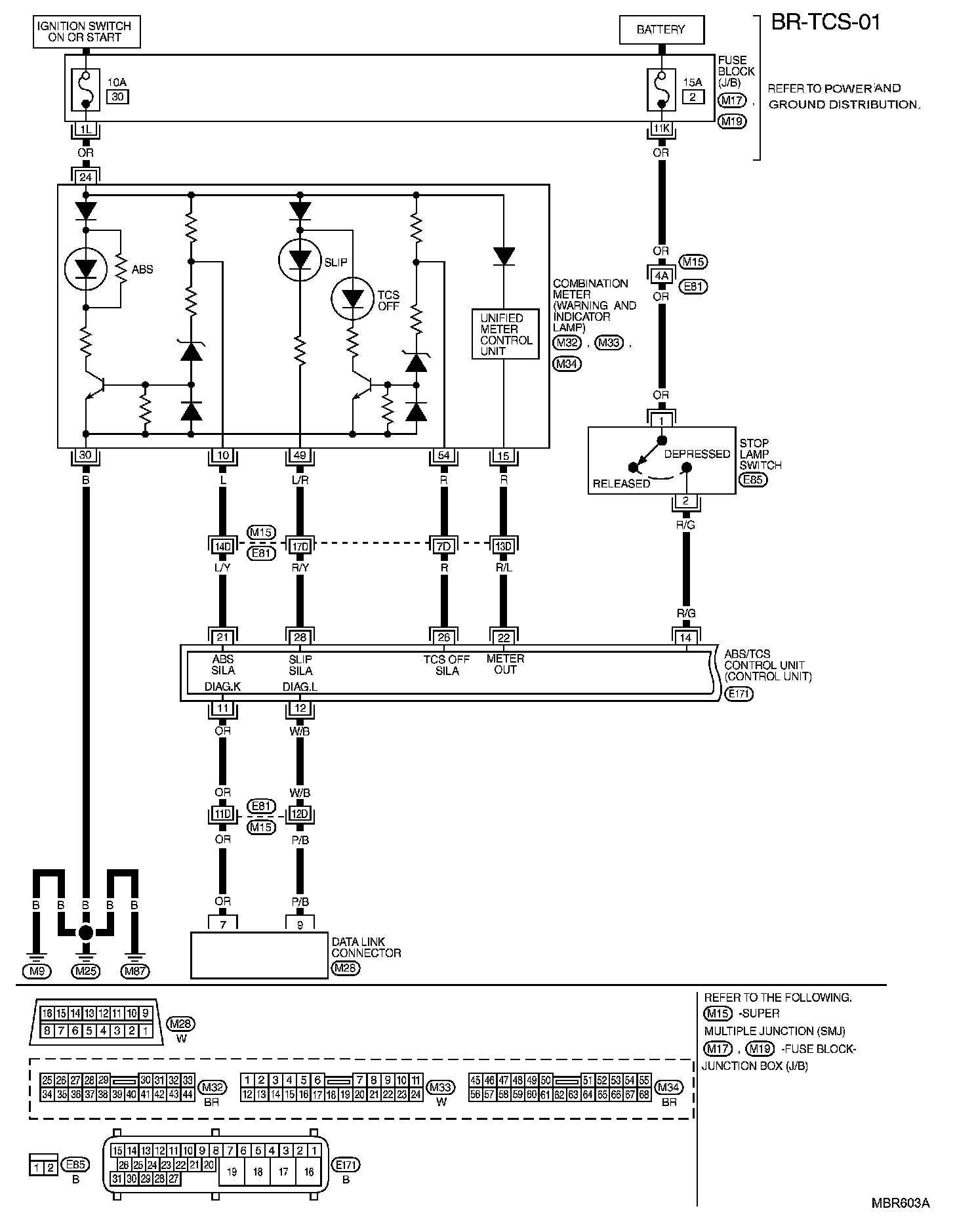

BR-TCS-01

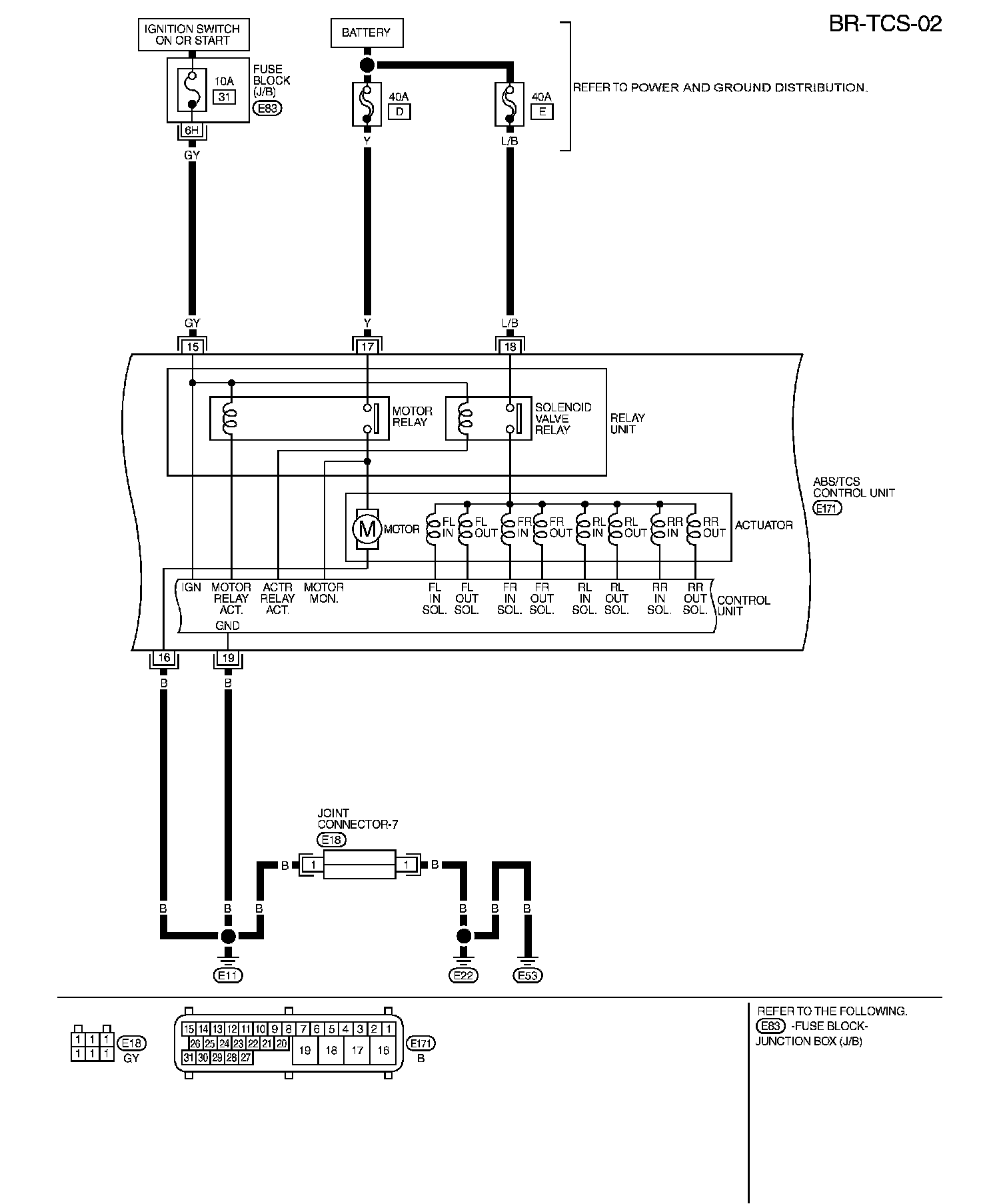

BR-TCS-02

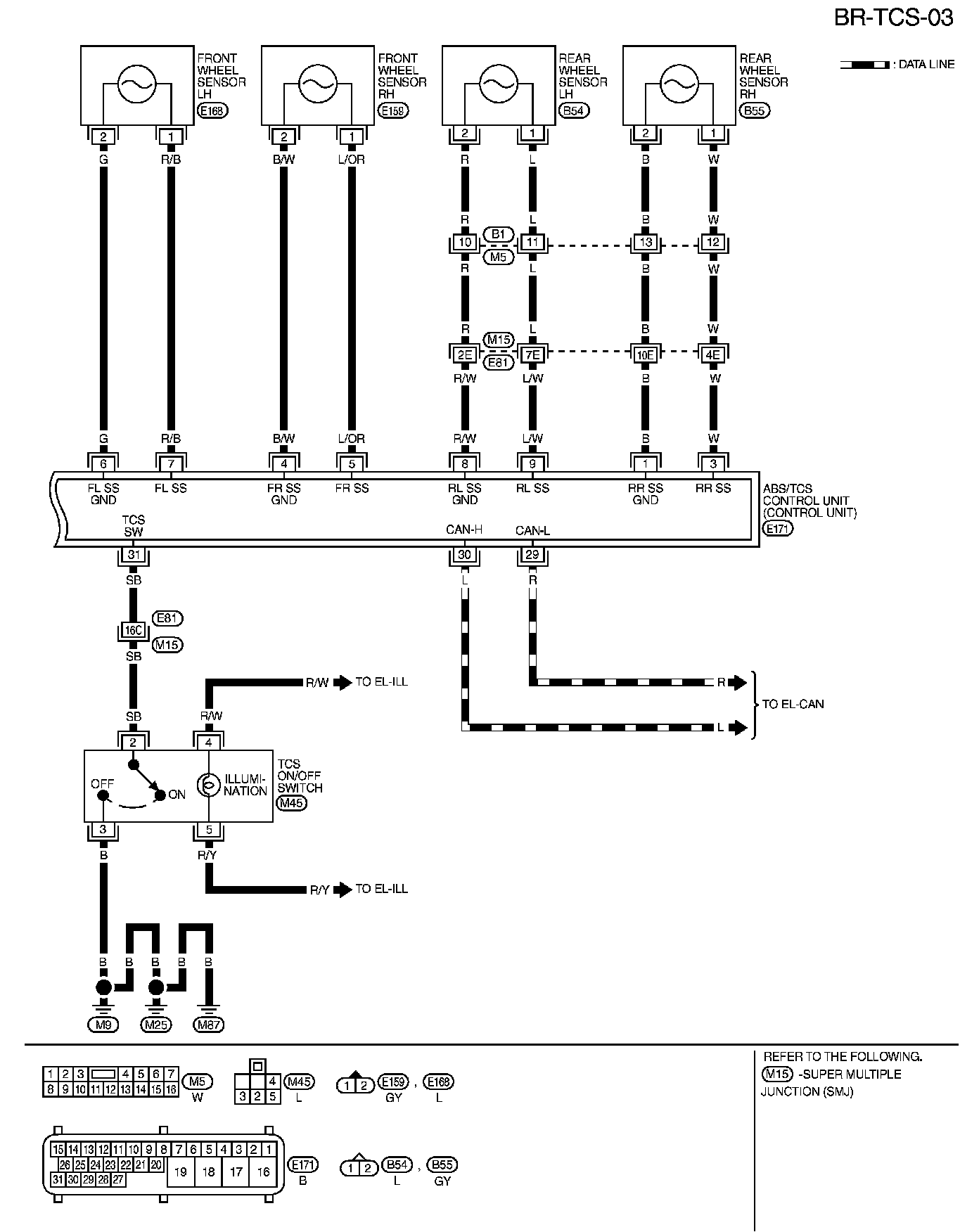

BR-TCS-03

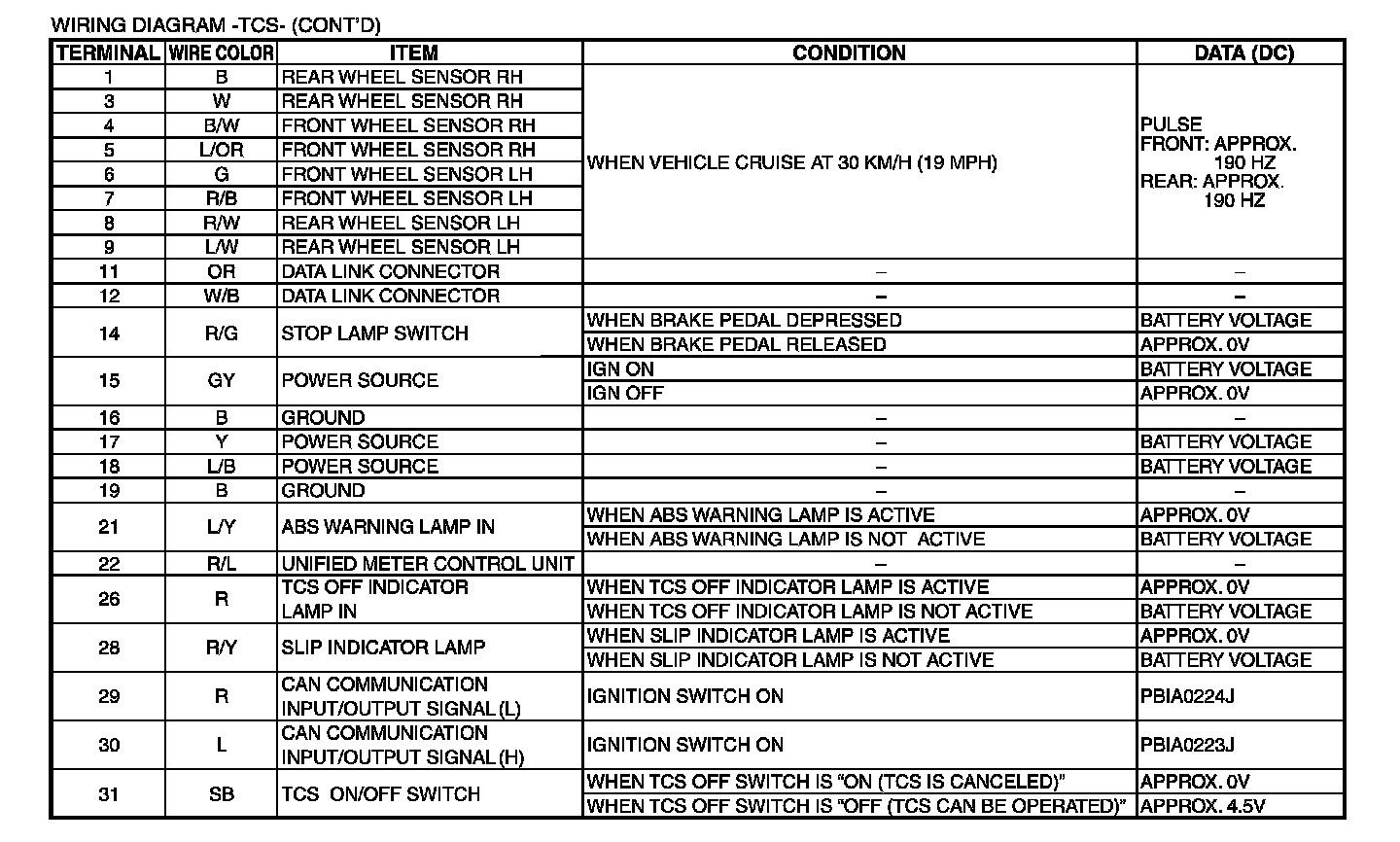

Terminal and Reference Value
