Front Bumper: Service and Repair

Part 1:

Part 2:

Part 3:

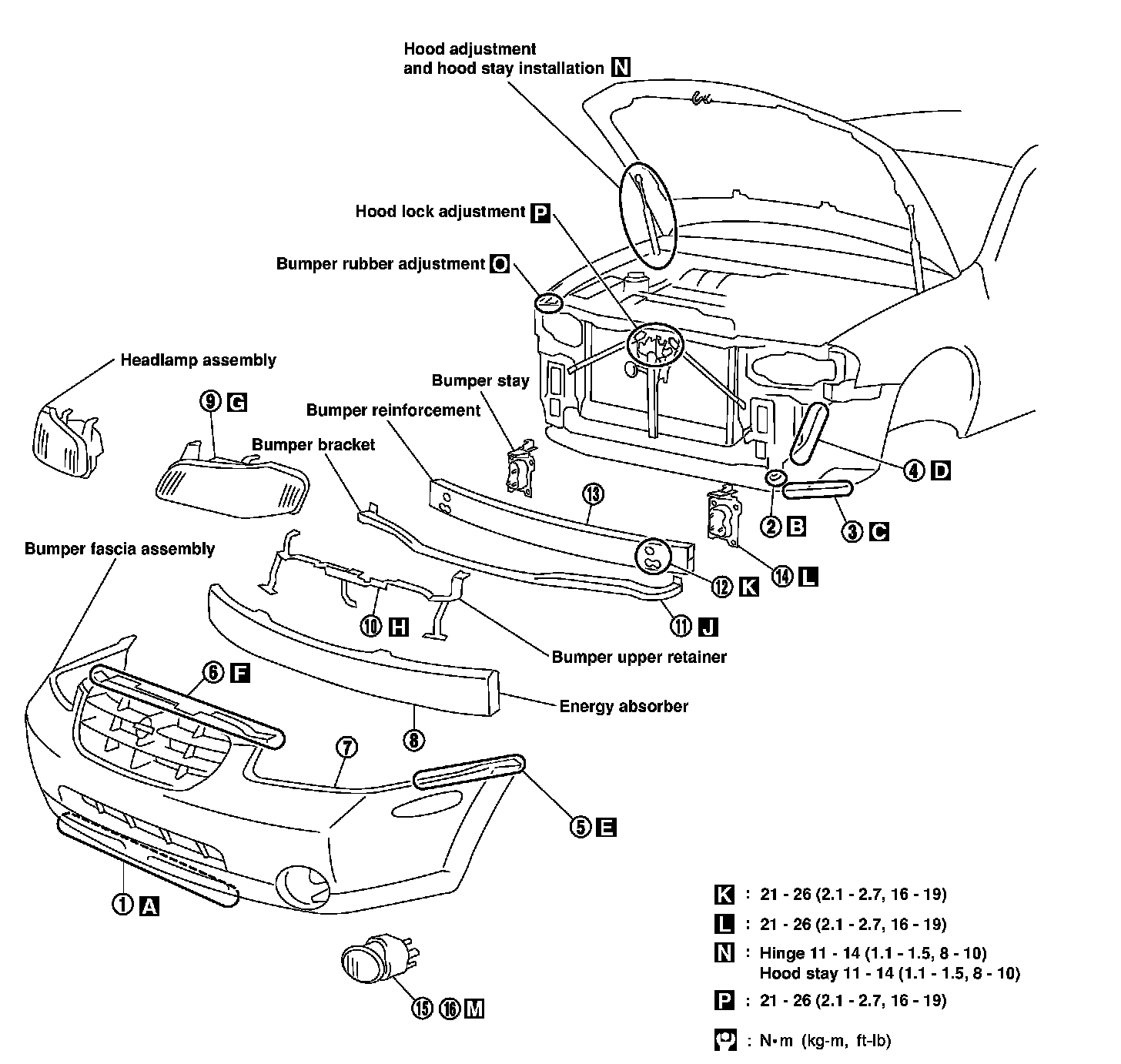

FRONT BUMPER ASSEMBLY

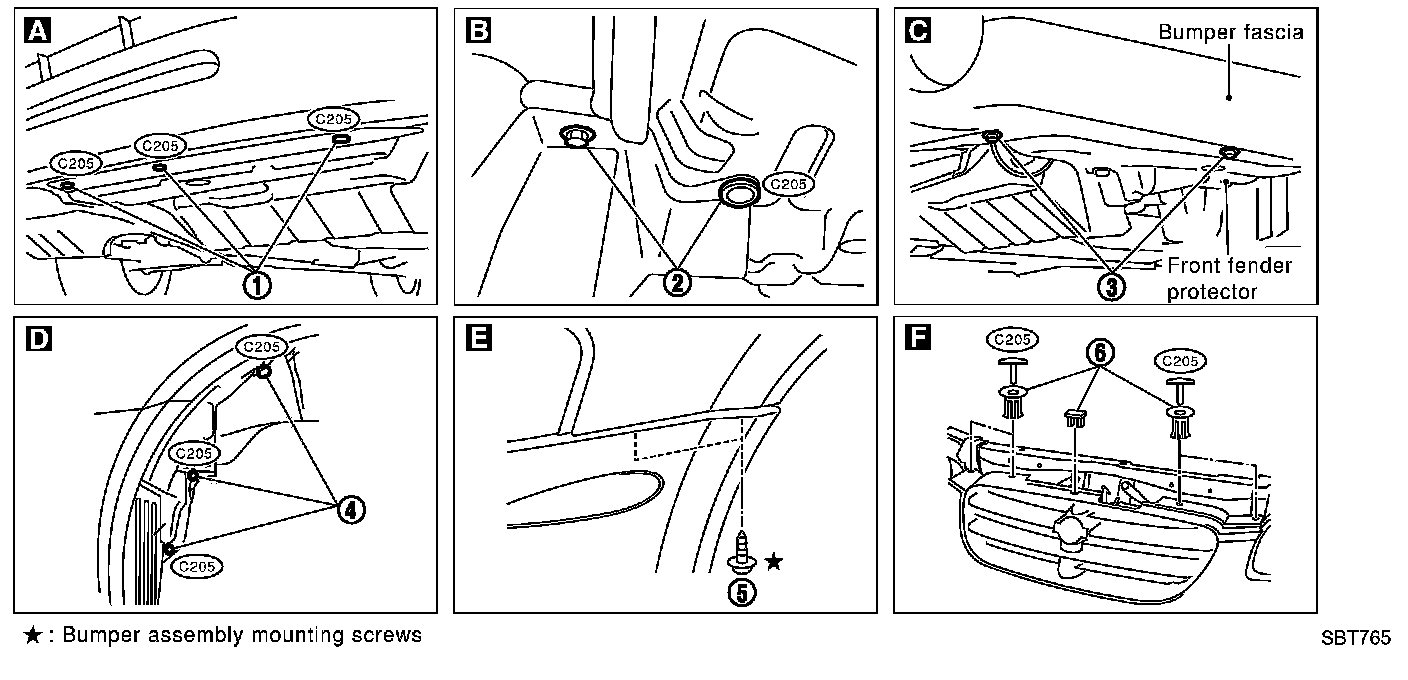

1. Remove clips securing engine undercover from front side. [A]
2. Remove clip and bolt securing left and right sides of front fender protectors. [B]
3. Remove screws securing left and right sides of front fender protectors. [C]
4. Remove clips securing left and right sides of front fender protectors in wheelhouse. [D]
5. Remove screws securing left and right front fenders to bumper fascia. [E]
6. Remove clips and protector securing bumper fascia. [F]
7. Extract bumper fascia assembly, then disconnect fog lamp and side marker lamp harness connectors.
8. Remove energy absorber.

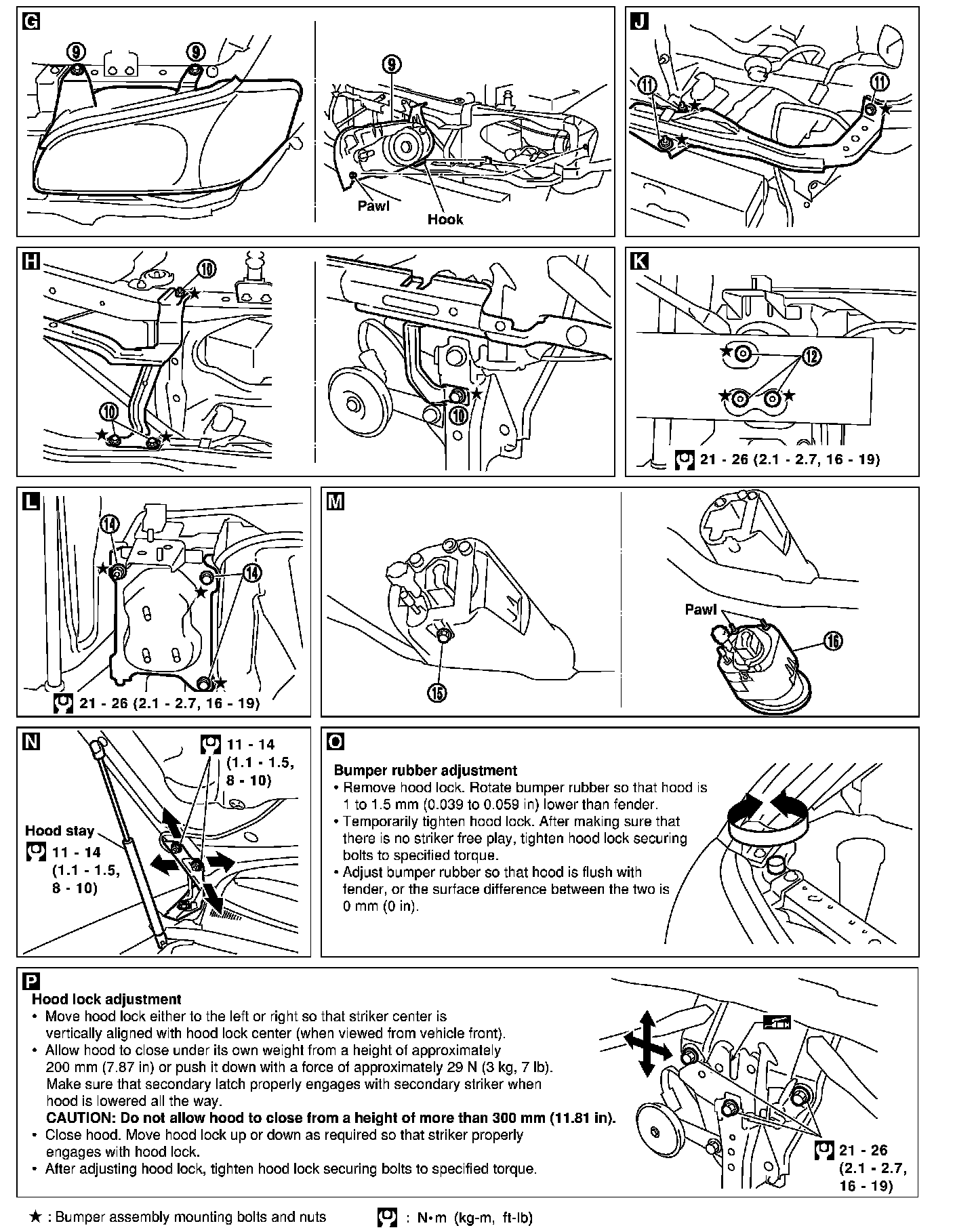

9. Remove bolts, hook and pawl securing headlamp assembly, then disconnect harness connectors.[G]
10. Remove bolt and nuts securing bumper upper retainer. [H]
11. Remove bolts and nuts securing bumper bracket. [J]
12. Remove nuts securing bumper reinforcement to left and right bumper stays. [K]
13. Extract bumper reinforcement.
14. Remove bolts and nut securing bumper stays, then remove the bumper stays. [L]

Fog lamp assembly
15. Remove bolt securing fog lamp assembly. [M]
16. Extract fog lamp assembly. [M]
