Vacuum Cut Valve: Testing and Inspection

Component Inspection

VACUUM CUT VALVE BYPASS VALVE

With CONSULT-II
1. Reconnect harness disconnected connectors.
2. Turn ignition switch ON.

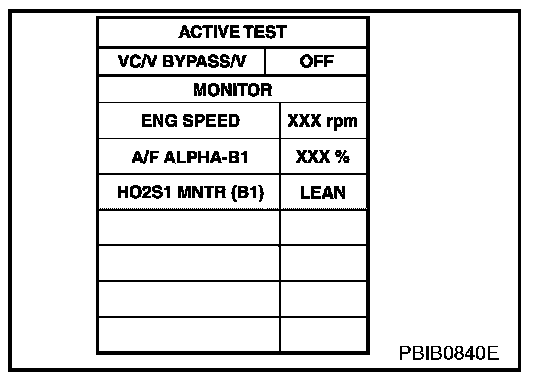

3. Perform "VC/V BYPASS/V" in "ACTIVE TEST" mode.

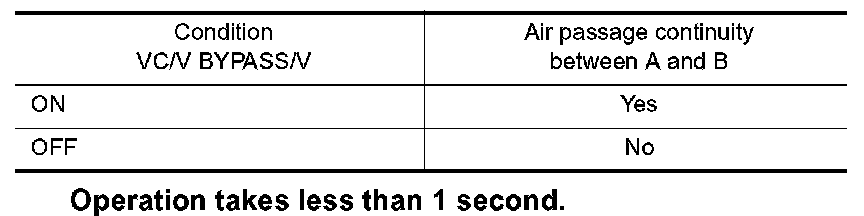

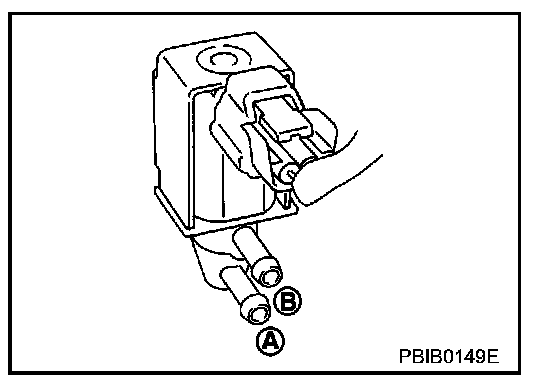

4. Check air passage continuity and operation delay time under the above conditions.
If NG, replace vacuum cut valve bypass valve.







Without CONSULT-II

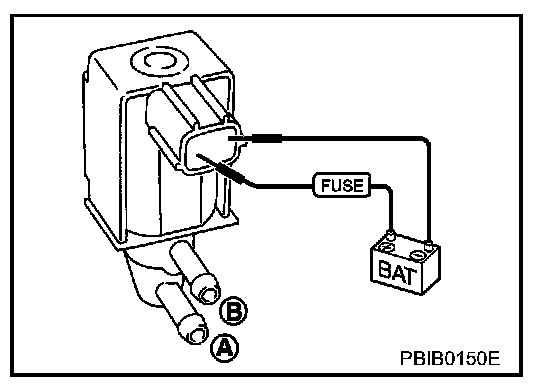

Check air passage continuity and operation delay time under the above conditions.
If NG, replace vacuum cut valve bypass valve.
