Canister Purge Volume Control Valve: Testing and Inspection
Component Inspection

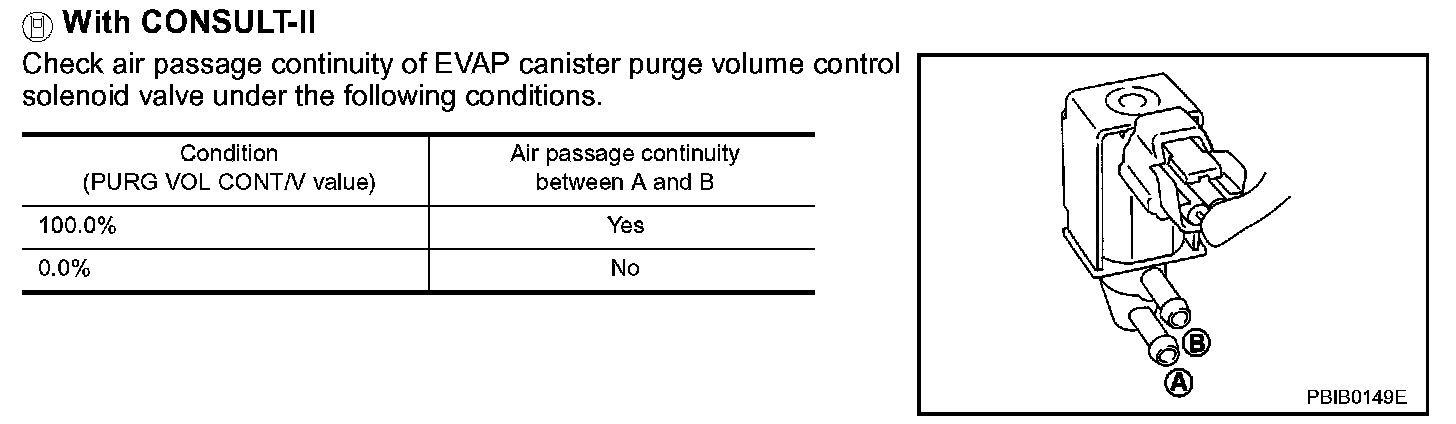

With Consult-II:

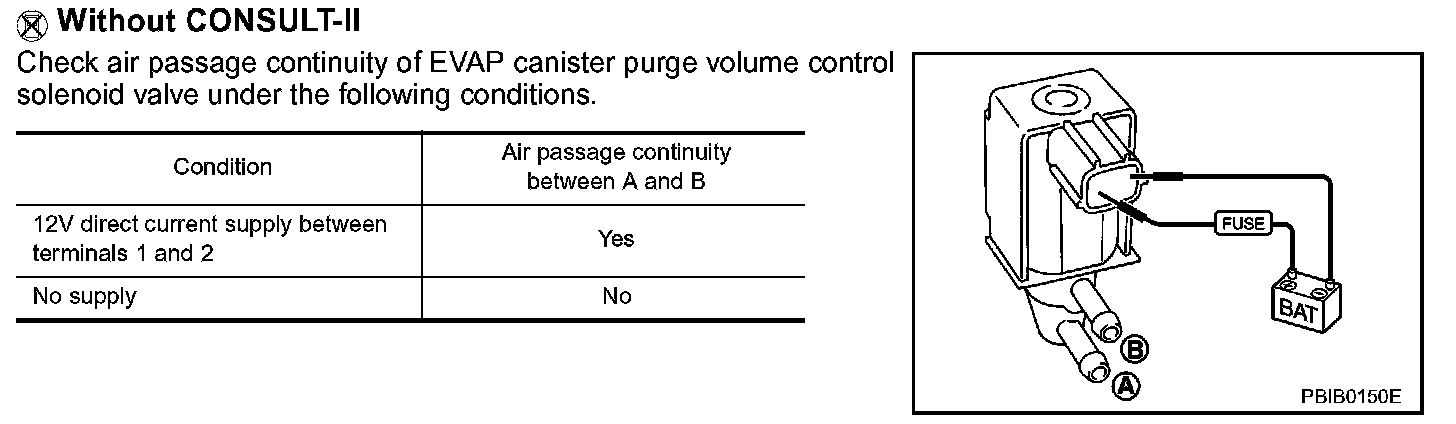

Without Consult-II:
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
