Air Register: Service and Repair

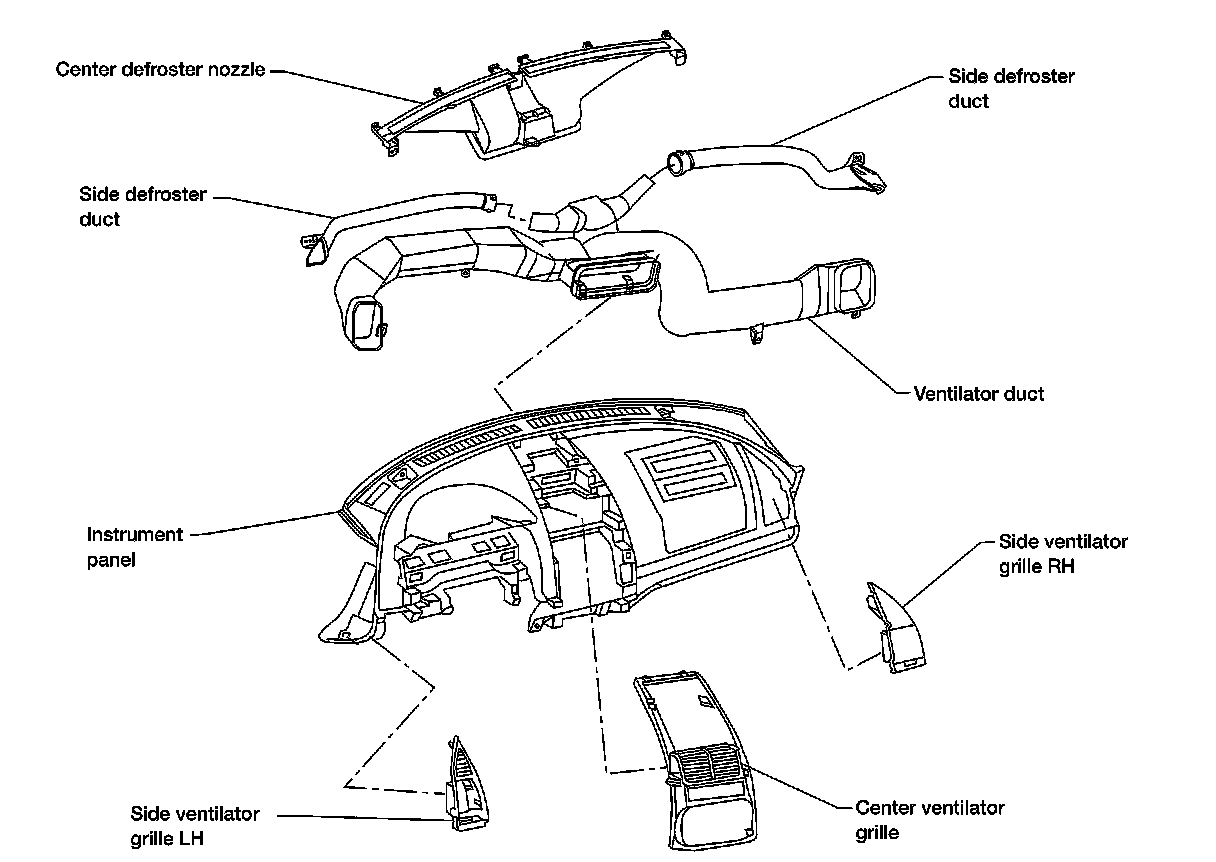

Ventilator Duct, Defroster Nozzle And Defroster Ducts:

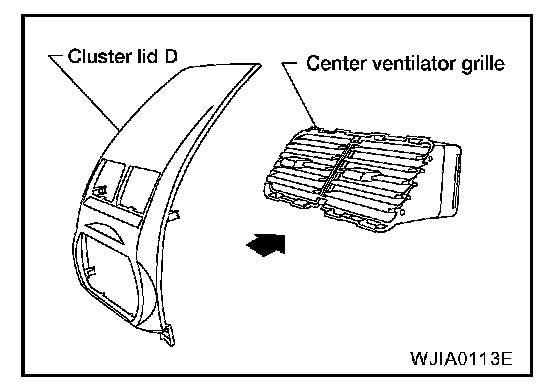

Center Ventilator Grille
1. Remove cluster lid D. Refer to "Cluster Lid D".
2. Release the tabs to remove center ventilator grille.

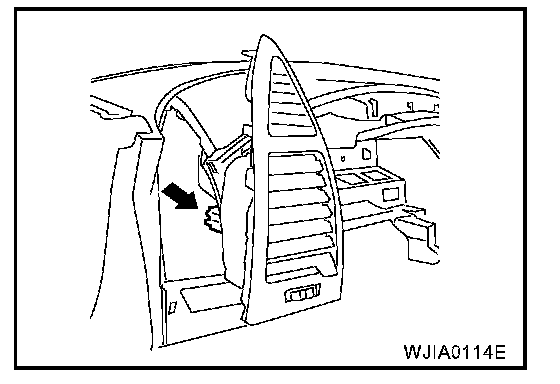

Side Ventilator Grille LH
1. Remove cluster lid A. Refer to "Cluster Lid A".




2. Remove side ventilator grille LH.

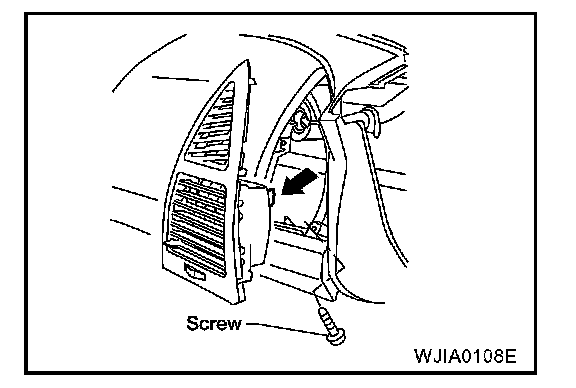

Side Ventilator Grille RH
1. Remove glove box assembly. Refer to "Glove Box".
2. Remove side ventilator grille RH screw and then remove it.
