Heater Core: Service and Repair

REMOVAL AND INSTALLATION
1. Remove heater and cooling unit. Refer to "HEATER & COOLING UNIT ASSEMBLY". Heater & Cooling Unit Assembly

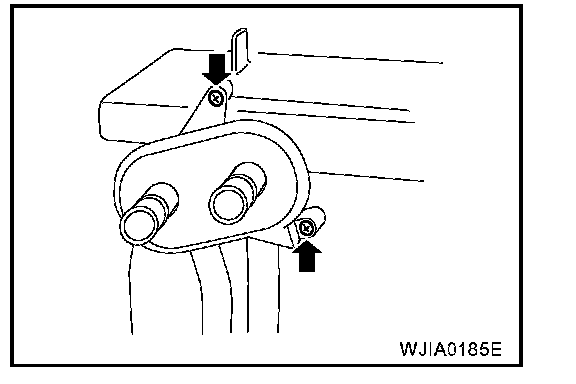

2. Remove heater core pipe support screws and then remove it.

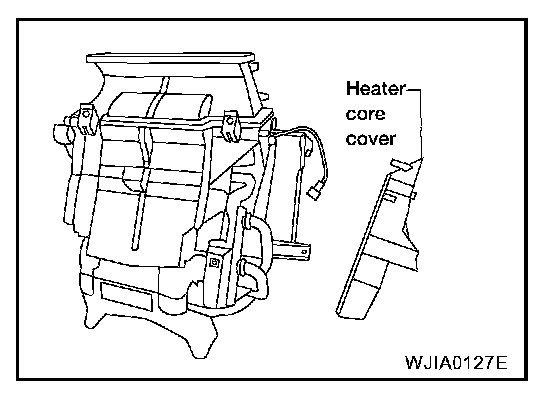

3. Remove heater core cover screws and then remove it.

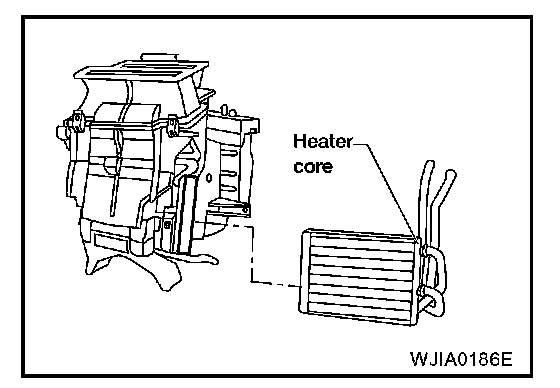

4. Remove heater core.
