Nissan-Datsun
>>
2002
>>
Altima 2.5 SL L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Engine Lubrication
Engine Lubrication
LUBRICATION SYSTEM

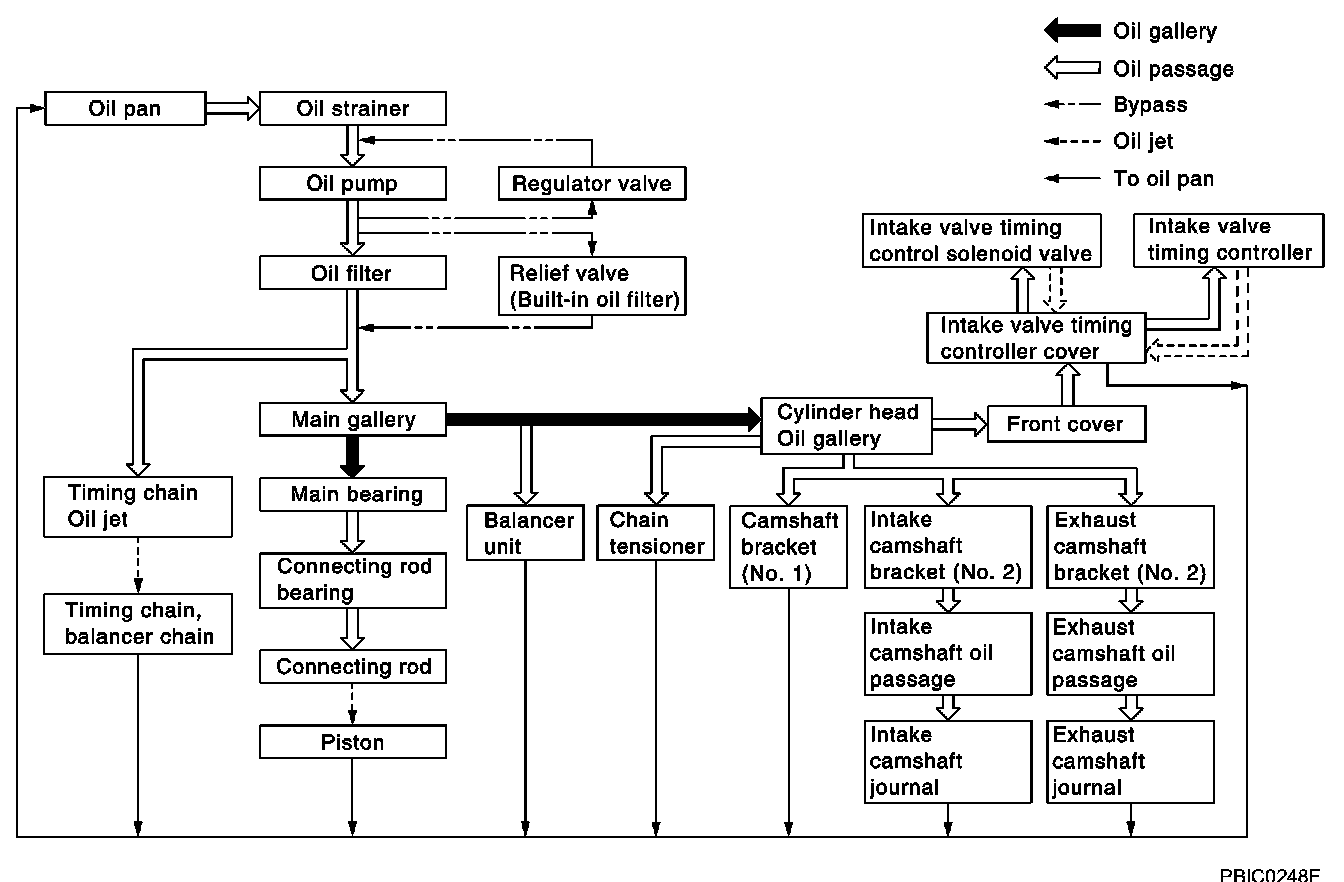

Lubrication Circuit

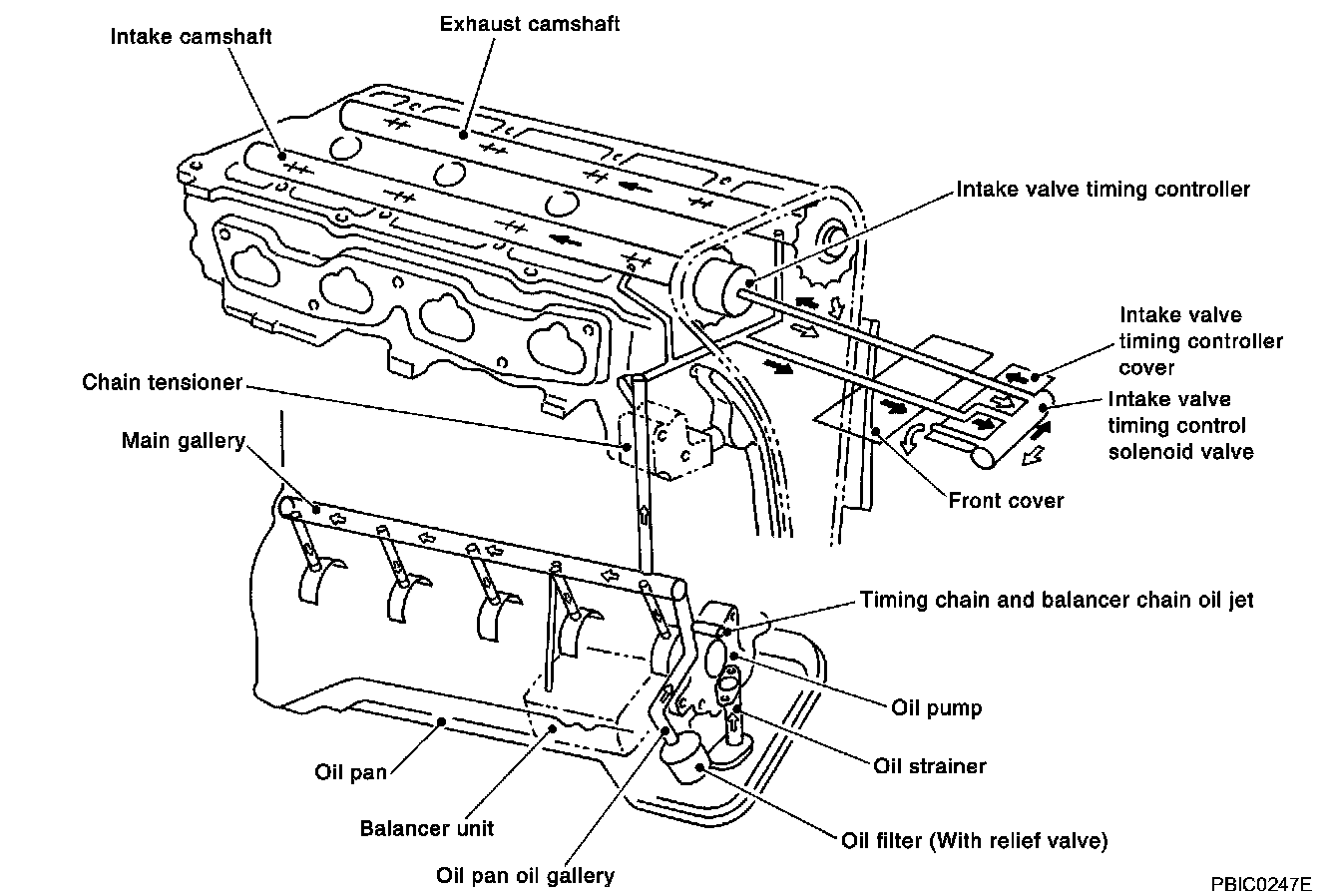

System Drawing
