Schematics

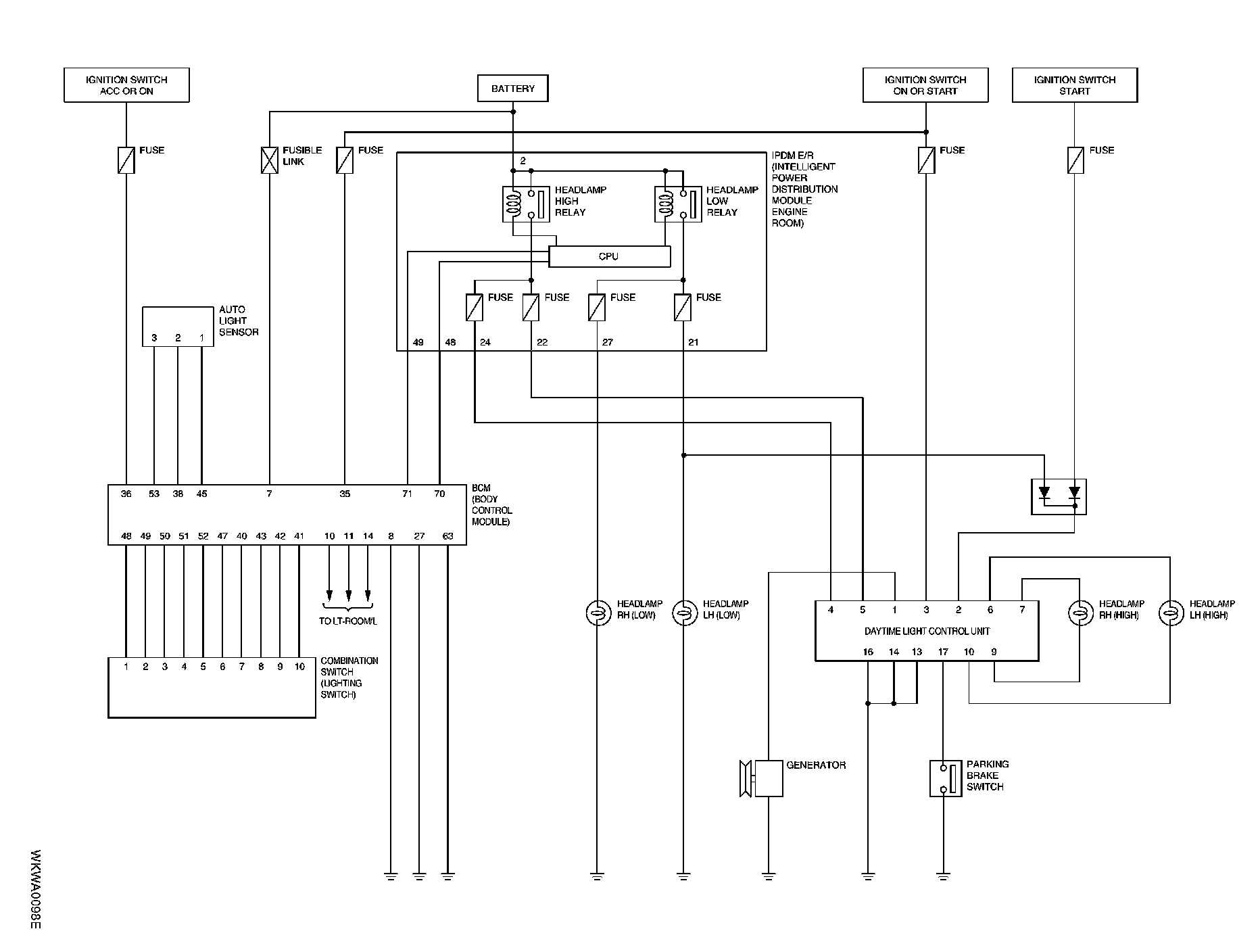

Standard (With Daytime Light System) Schematic:

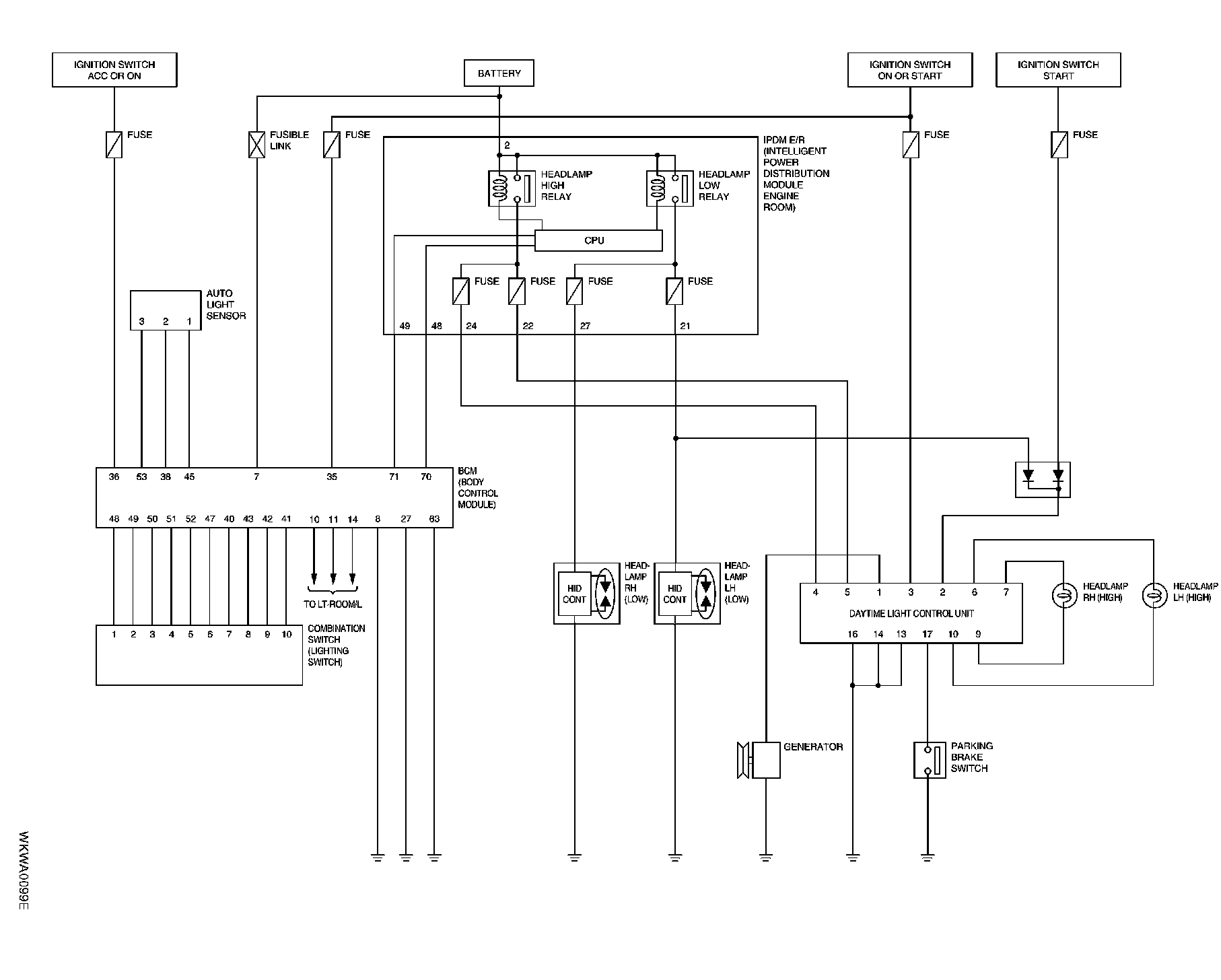

Xenon (With Daytime Light System) Schematic:
