Nissan-Datsun
>>
2002
>>
Altima 2.5 SL L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Fuse Block
Fuse Block

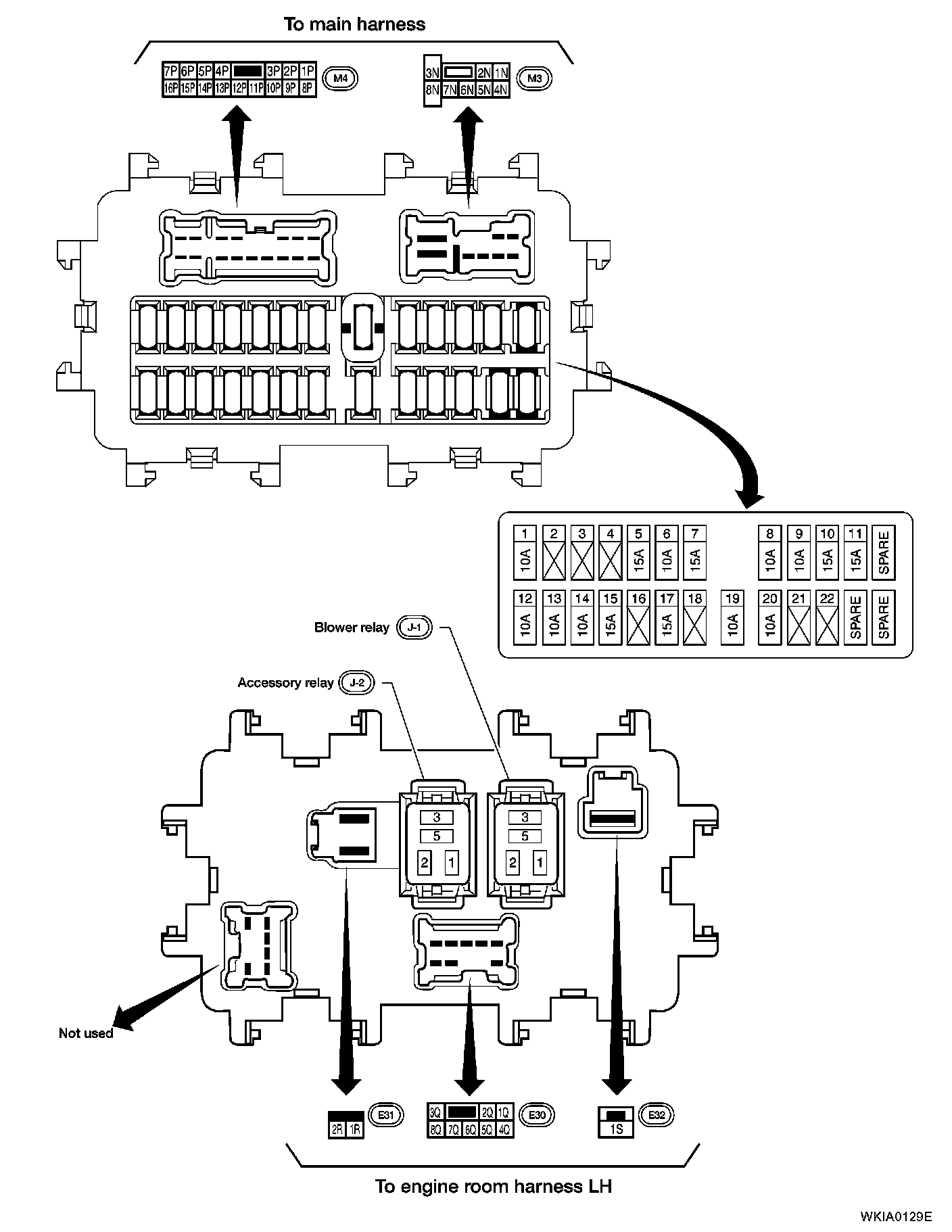

Fuse Block-Junction Box - Terminal Arrangement:
