Parking Brake Control: Service and Repair

REMOVAL
1. To remove parking brake cable, first remove center console.

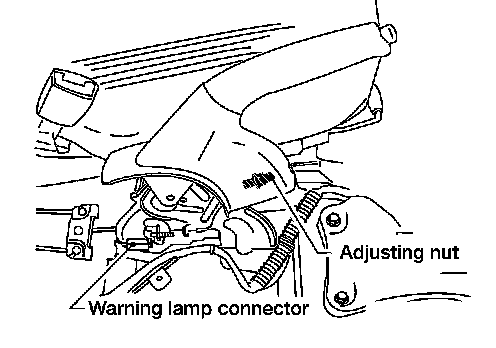

2. Disconnect warning switch connector.
3. Remove bolts, slacken off and remove adjusting nut.





4. Remove lock plate mounting bolt.
5. Remove pin, then parking brake cable.

INSTALLATION
Install all parts in the reverse order of removal.
