Front

Inspection
PAD THICKNESS

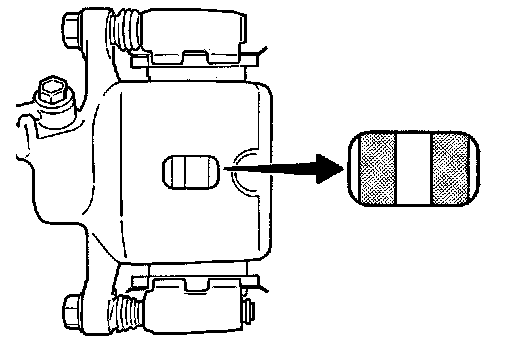

- Remove a wheel with the vehicle lifted up, and then check the thickness of the pad from the inspection hole of the cylinder body. If necessary, check it with a scale.
Standard pad thickness: 11 mm (0.43 inch)
Pad wear limit: 2.0 mm (0.079 inch)
