Rear

Rear:

REMOVAL
- If shims are rusted or show peeling of the rubber coat, replace them with new shims.
- Whenever the brake pads are replaced, the inner shim, the outer shim and the shim cover have to be replaced as a set.

1. Remove master cylinder reservoir cap.

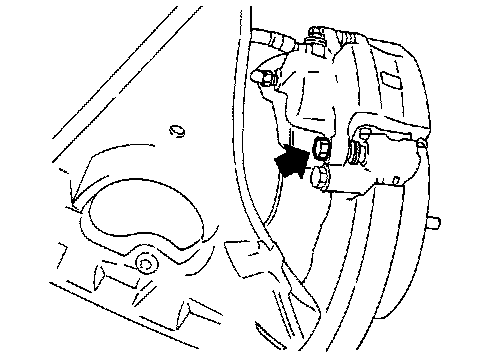

2. Remove lower pin bolt, using power tool.

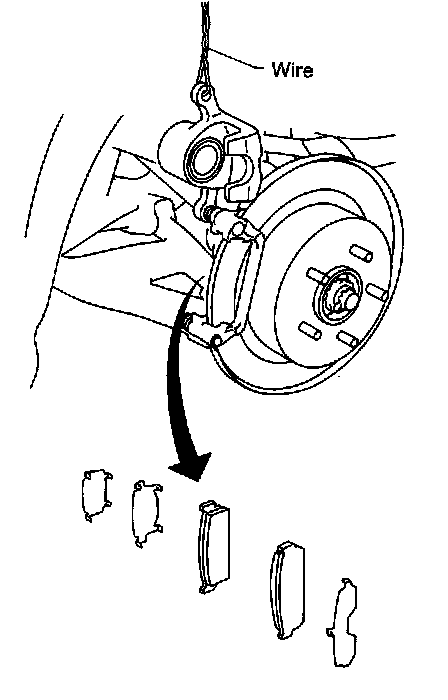

3. Open cylinder body upward. Then remove pad retainers, and inner and outer shims.

INSTALLATION
1. Apply grease to the inner and outer shim, and then attach them to the pads.
2. Attach the pad retainer to the torque member, and then attach it to the pad.
3. When installing new pads, push piston into cylinder body.
- Carefully monitor brake fluid level because brake fluid will return to the reservoir when pushing back piston.
4. Insert pin bolt and tighten it to specified torque. Refer to Brake Caliper; Diagrams; Exploded Views.
5. Check the brake for drag.
