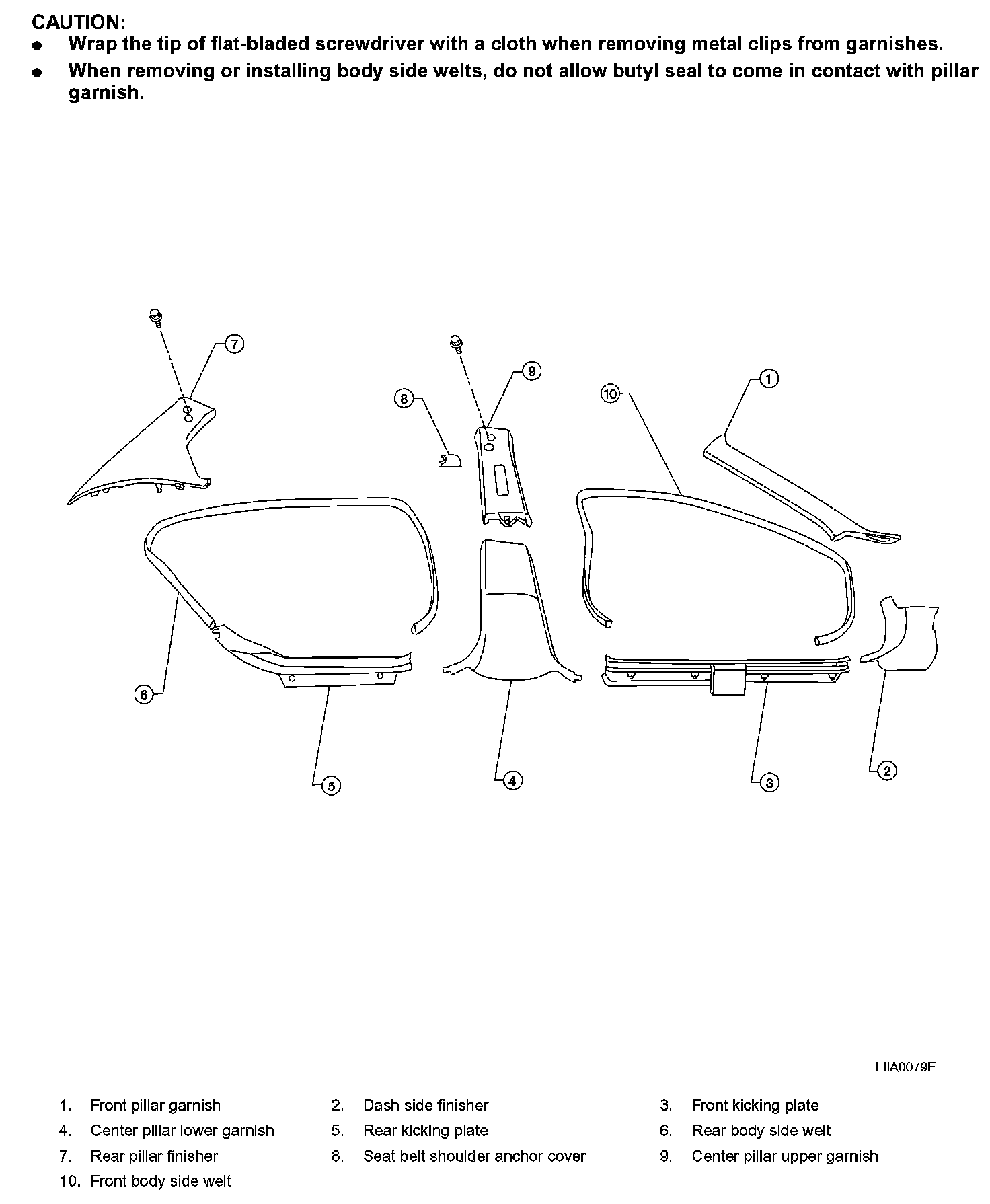

Body Side Trim

Removal and Installation


CENTER PILLAR LOWER GARNISH

Removal and Installation
1. Remove front and rear kicking plate.
2. Remove center pillar lower garnish.
3. Installation is in the reverse order of removal.

CENTER PILLAR UPPER GARNISH

Removal and Installation
1. Remove seat belt shoulder anchor. Refer to "Removal and Installation of Front Seat Belt"
2. Remove front and rear kicking plate.
3. Remove center pillar lower garnish.
4. Remove bolt covers and bolts.
5. Remove center pillar upper garnish.
6. Installation is in the reverse order of removal.

REAR PILLAR FINISHER

Removal and Installation
1. Remove bolt cover and bolt.
2. Remove rear pillar finisher.
3. Installation is in the reverse order of removal.




DASH SIDE FINISHER
Removal and Installation
1. Remove front kicking plate.
2. Remove dash side finisher

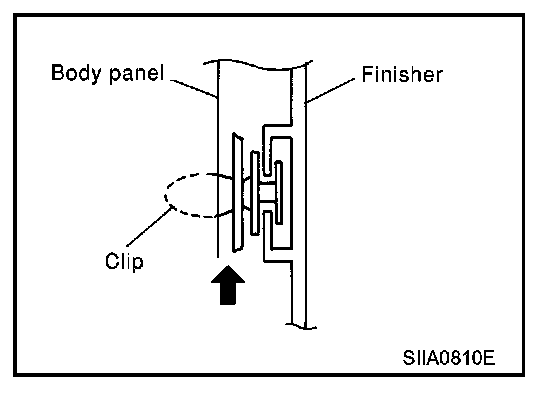

CAUTION: Insert screw driver rolled with cloth between panel on vehicle and clips (as indicated with arrow), and disconnect clips.

3. Installation is in the reverse order of removal.
