Home
>>
Nissan-Datsun
>>
2000
>>
Sentra XE L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Description and Operation
>>
Overall System
Overall System

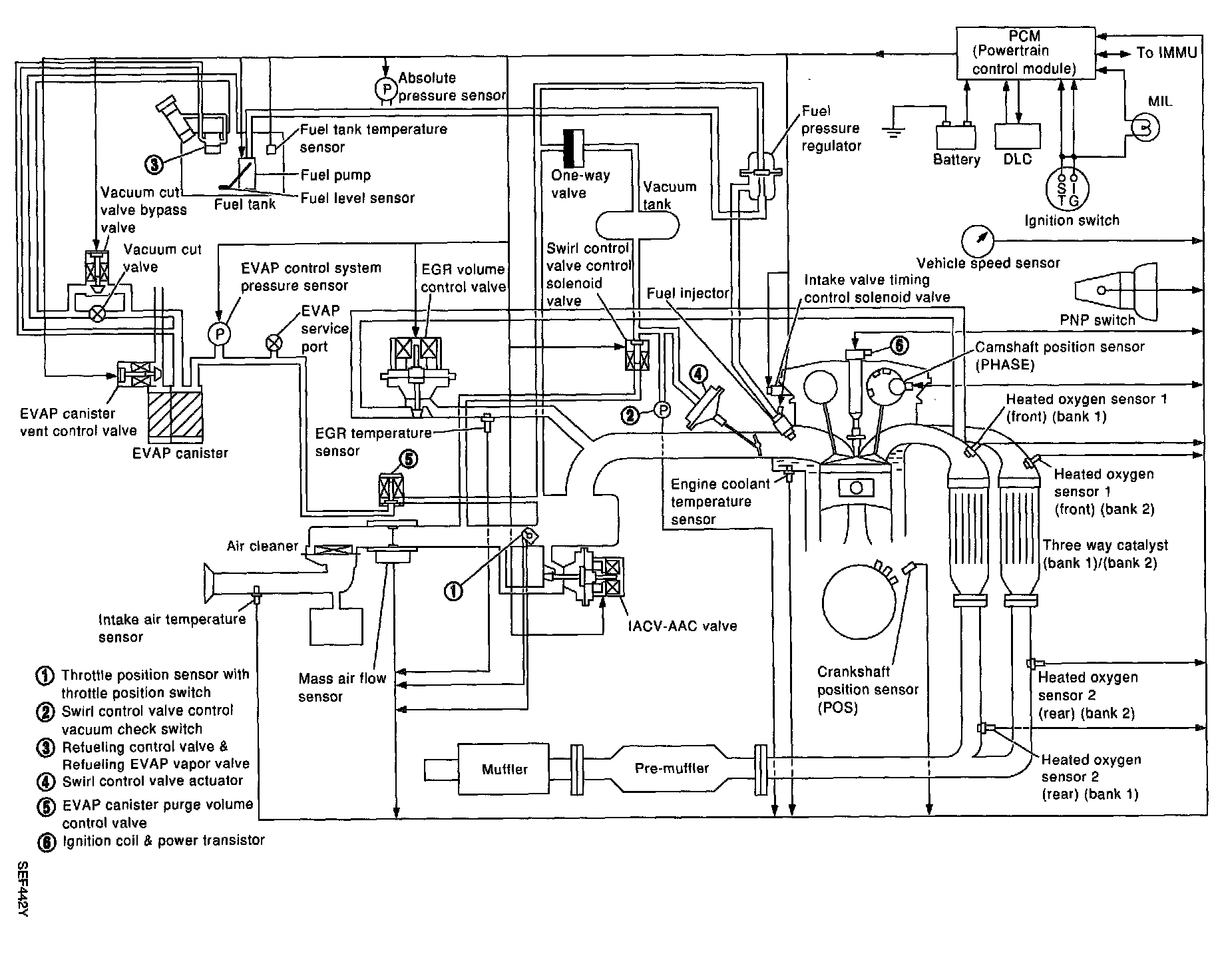

System Diagram - Except California:

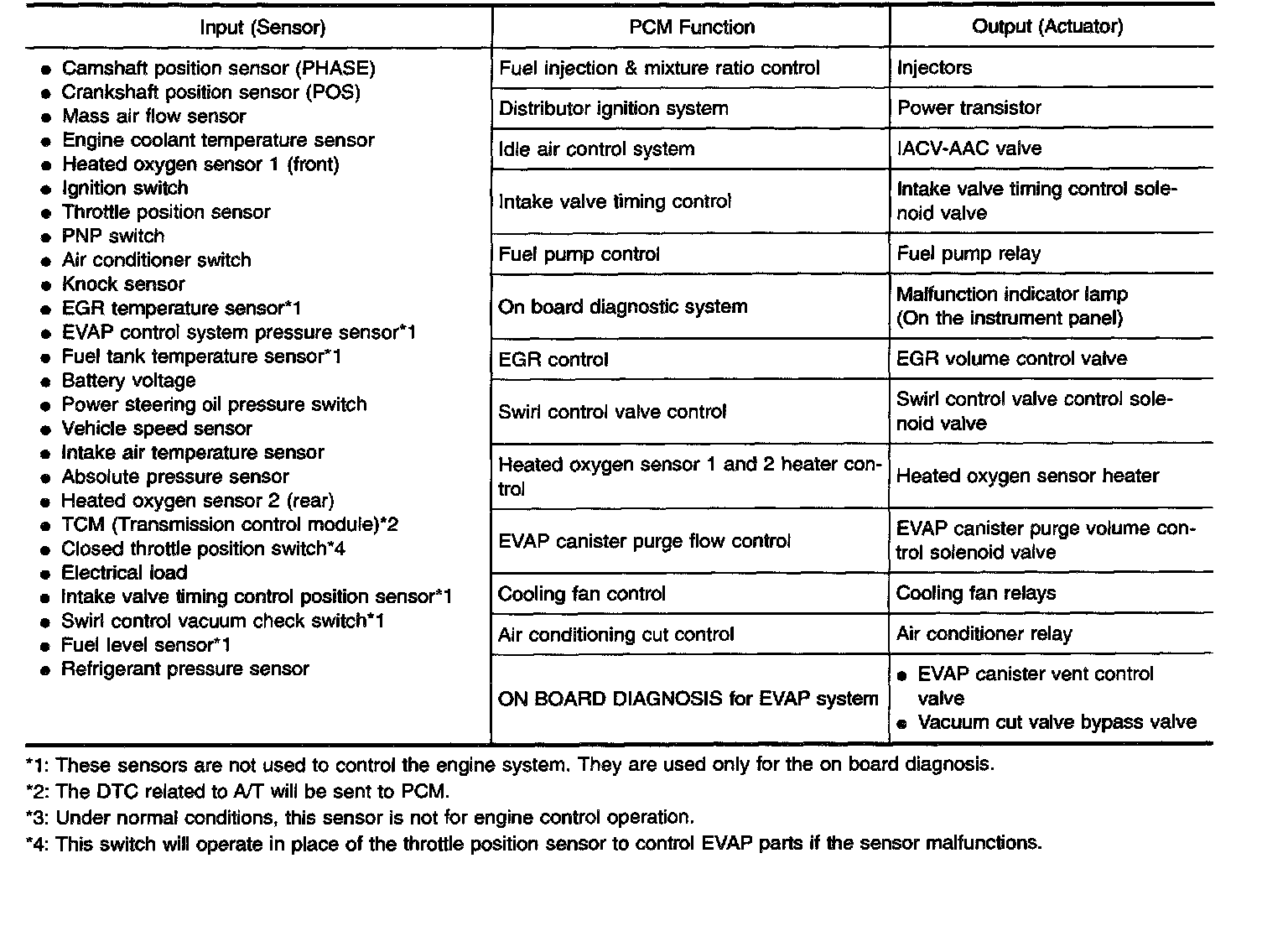

System Chart:
