Altima GLE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
Seats
EL-SEAT-01:

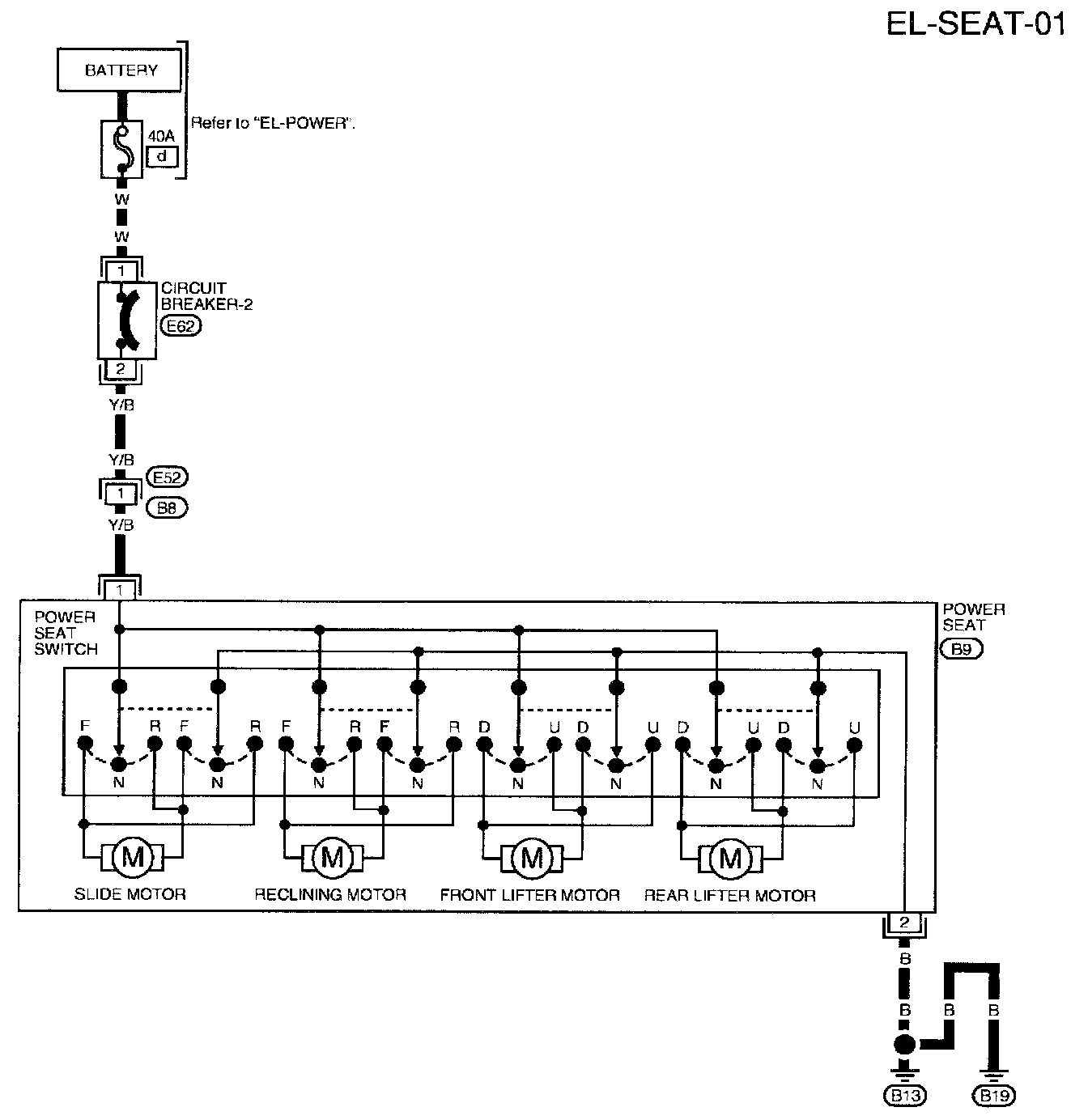

Circuit Diagram

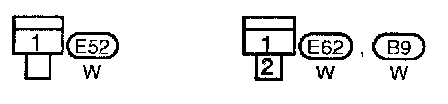

Circuit Connectors
