Home >> Nissan-Datsun >> 2000 >> Altima GLE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Throttle Full Close Switch

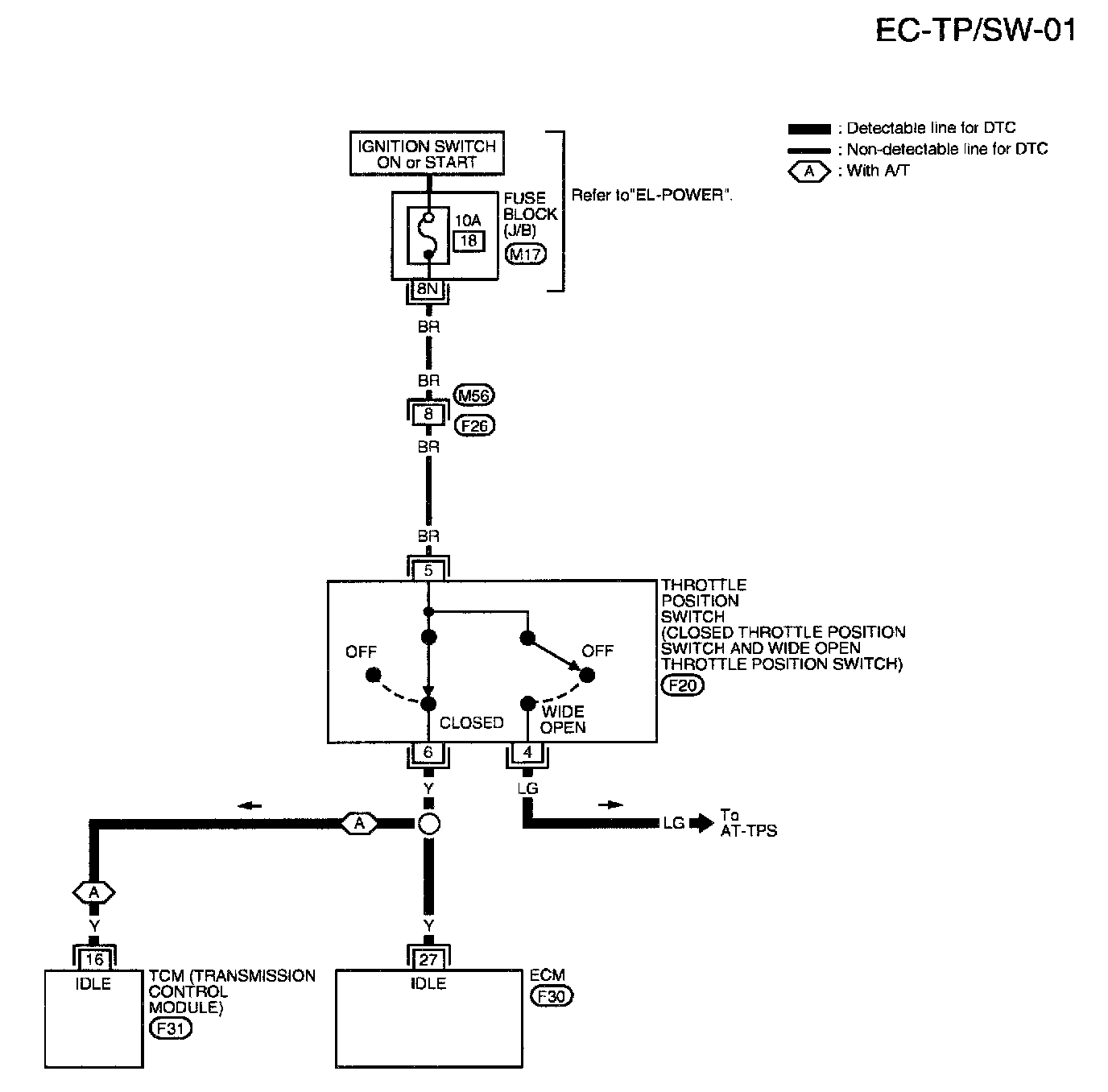

Throttle Full Close Switch

EC-TP/SW-01:
