Altima GLE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Without A/C
Without A/C

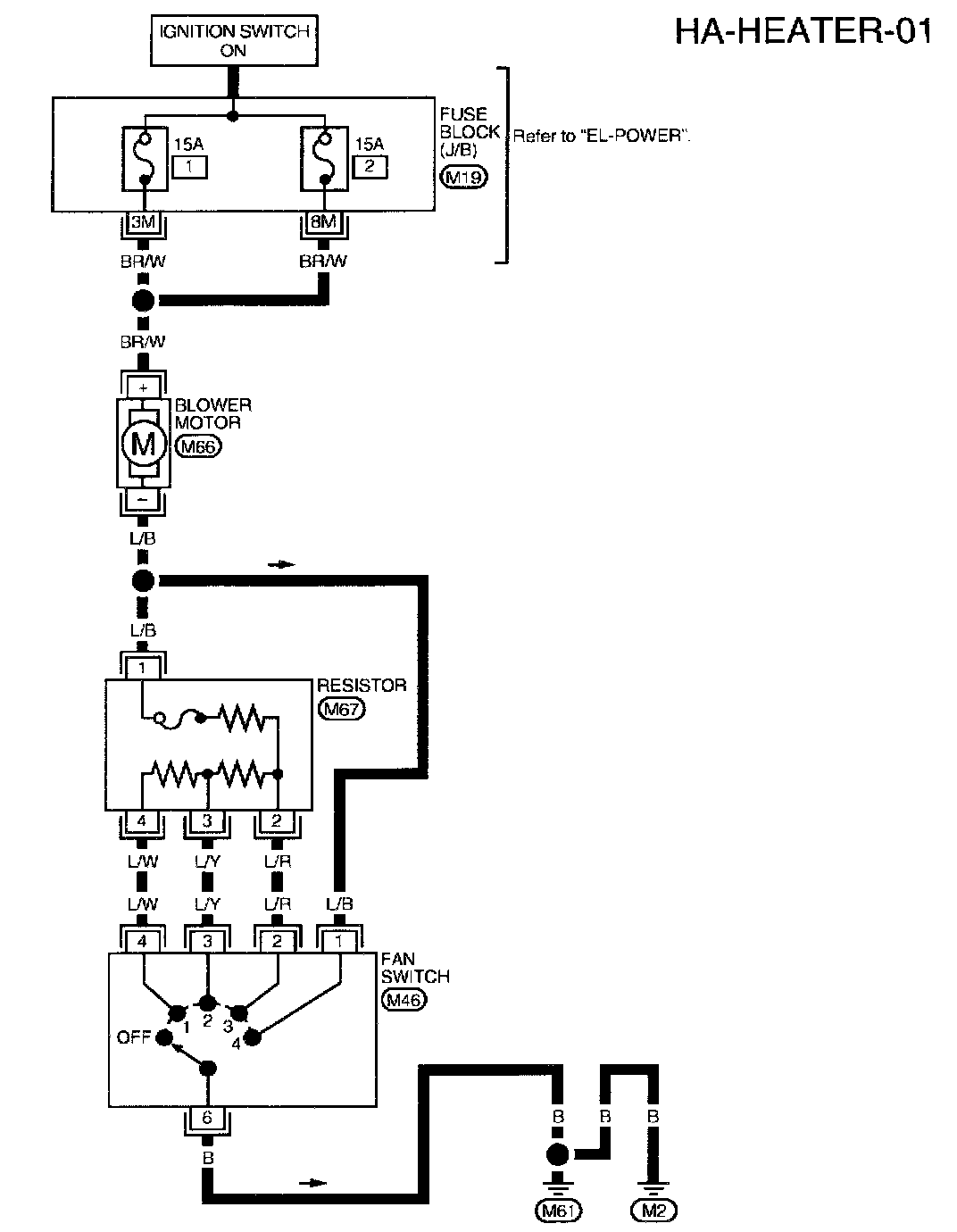

HA-HEATER-01:

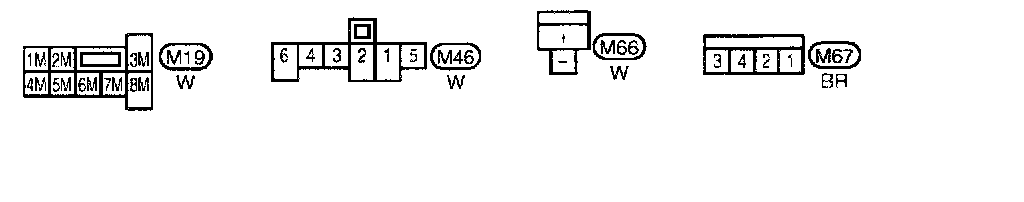

HA-HEATER-01 Connector Views:
