Home >> Nissan-Datsun >> 1993 >> Sentra L4-1998cc 2.0L DOHC MFI (SR20DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Timer/Control Unit, Accessory Control >> 4 Door Sedan

4 Door Sedan

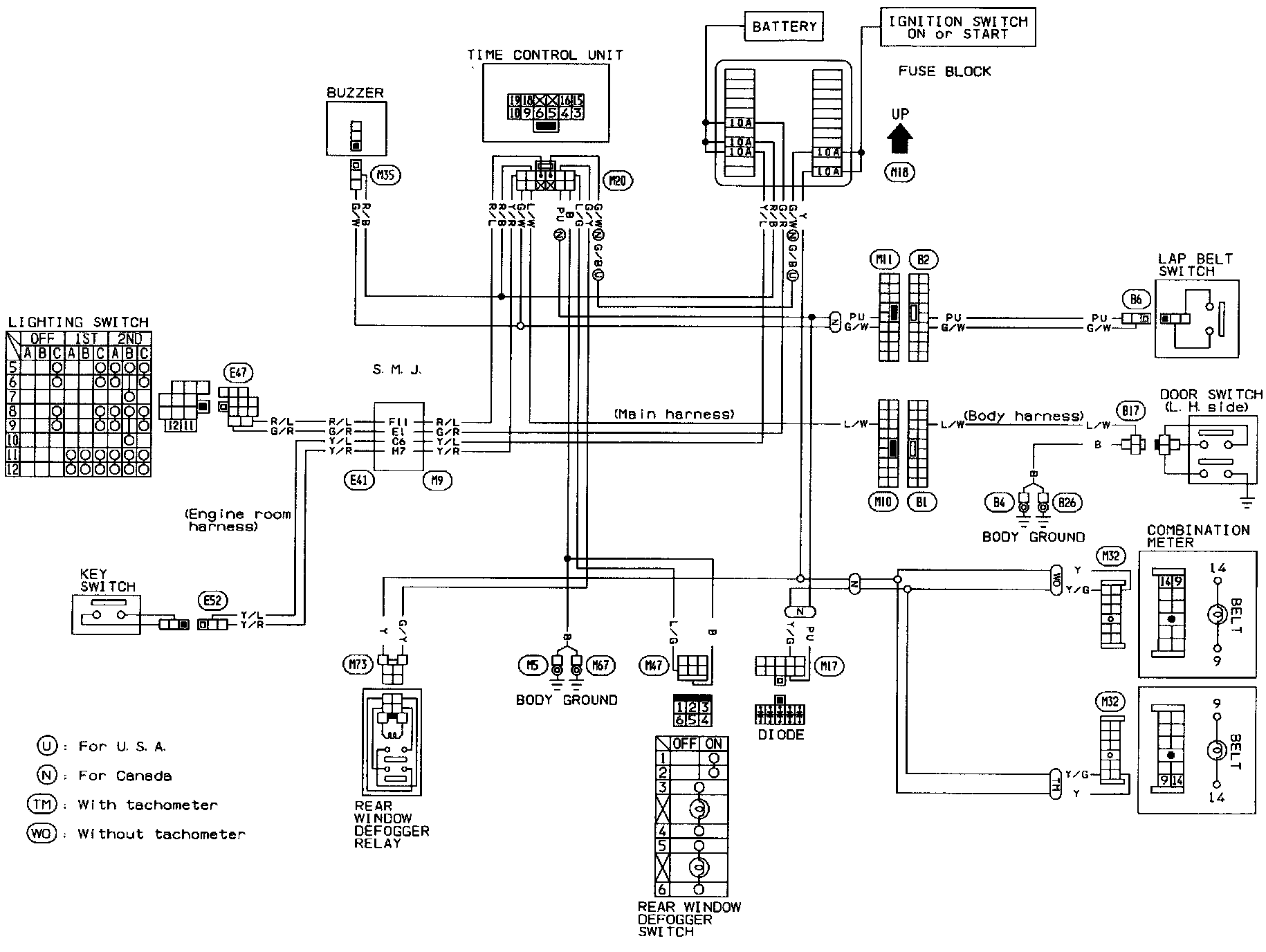

Time Control System:
