Push Button Controls

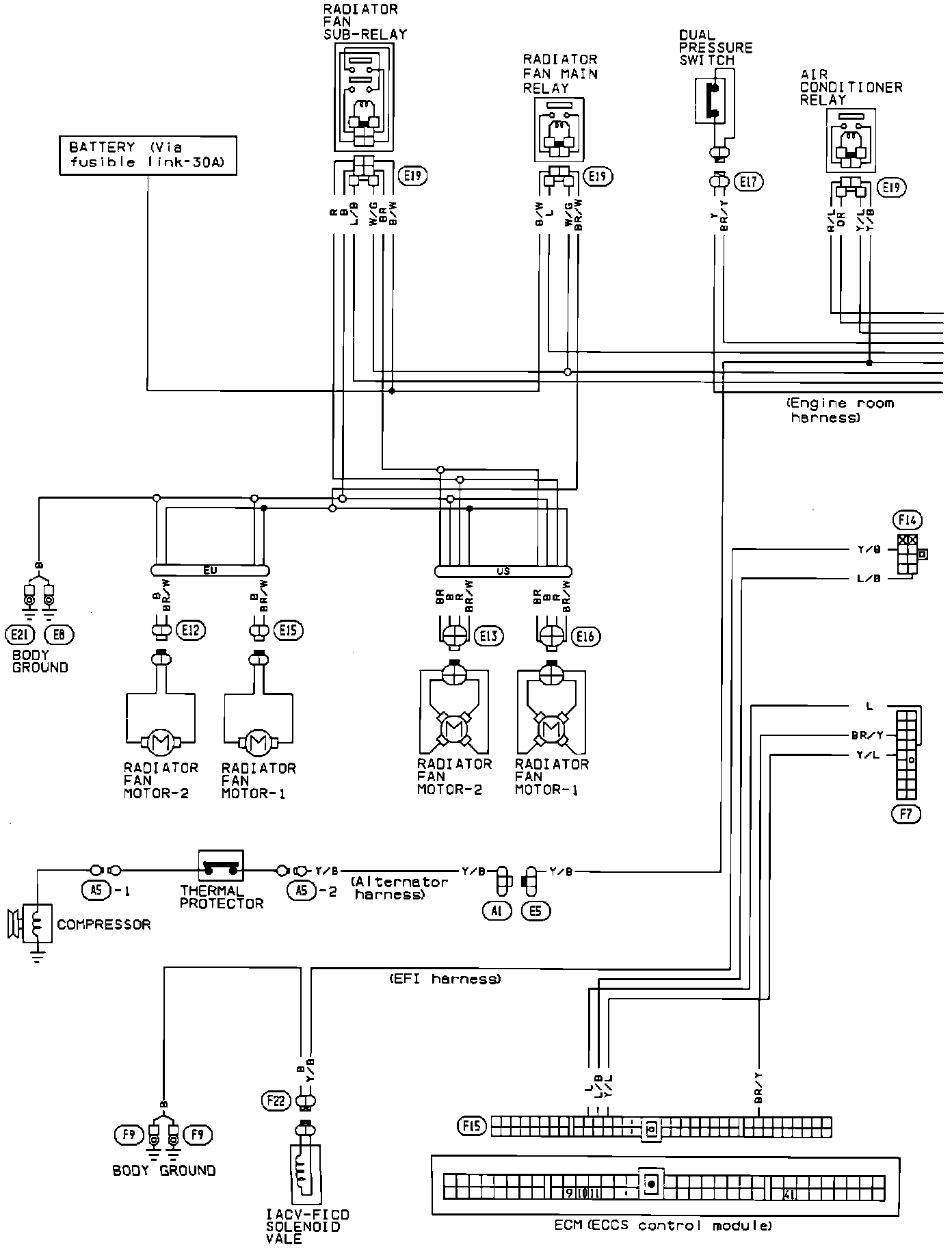

Air Conditioning (Push Button Control Type):

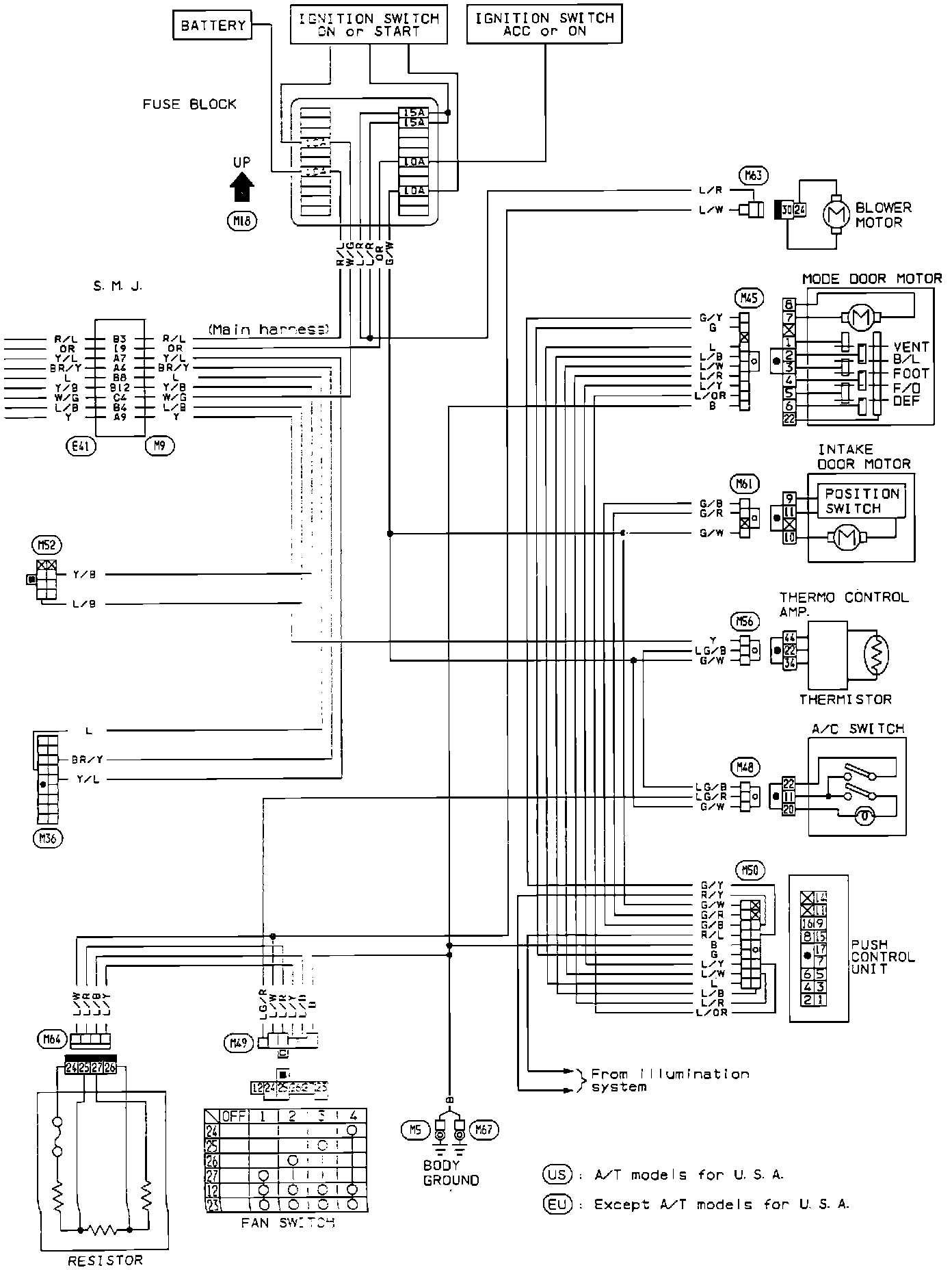

Air Conditioning (Push Button Control Type):
