Windows - Power Window Master Switch Removal
Classification: EL93-010Section: Electrical System
Reference: TECHNICAL BULLETIN NTB93-046
Models: 1993 Altima
Date: March 2, 1993
POWER WINDOW MASTER SWITCH REMOVAL
APPLIED MODEL:
All 1993 Altima models with power windows
SERVICE INFORMATION
To avoid damaging the power window master switch during removal, refer to the procedure described below.
SERVICE PROCEDURE

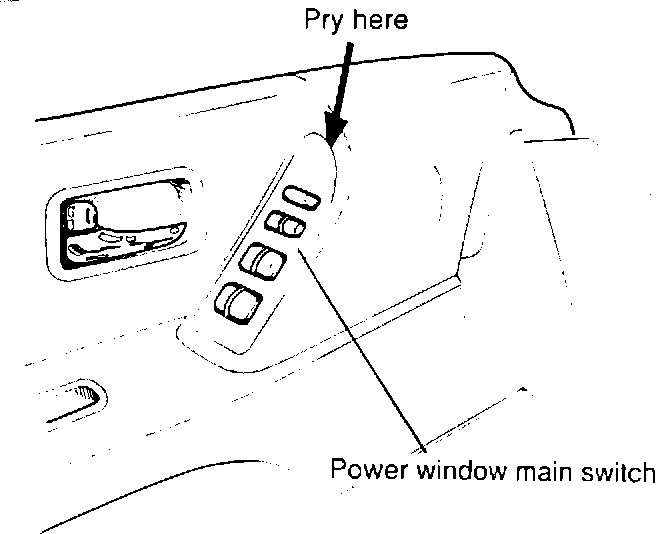

1. Insert a plastic pry bar at the point shown and gently pry the main switch out of the door panel. Prying at other points on the main switch will likely cause damage. The plastic pry bar (P/N J39910) is available from Kent-Moore at 1-800-345-2233.

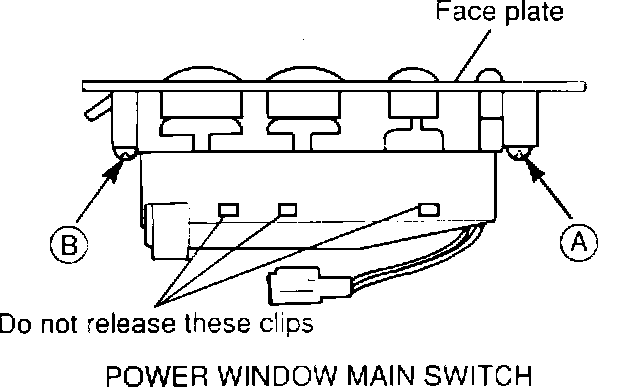

2. When removing the face plate from the power window main switch, remove only the screws at points A and B shown. Do not release clips for the bottom cover of the main switch since this will damage the switches.
