Case Components

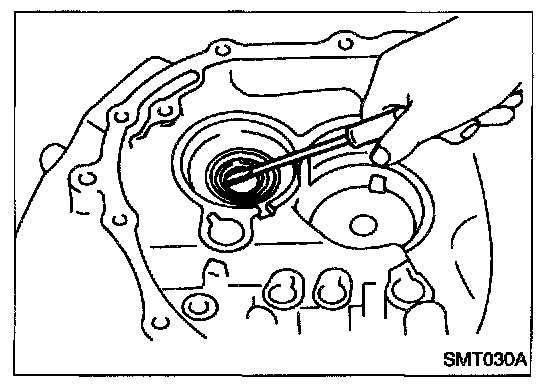

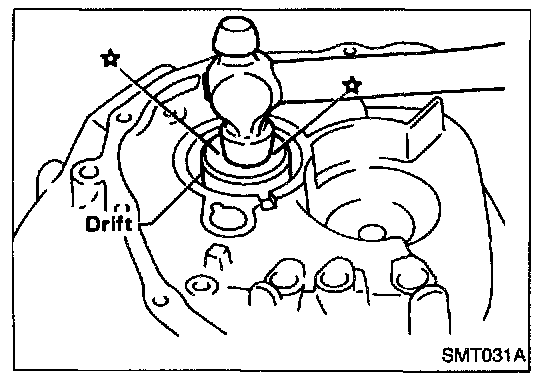

Input shaft oil seal






Note: Apply multi-purpose grease to seal lip of oil seal before installing.

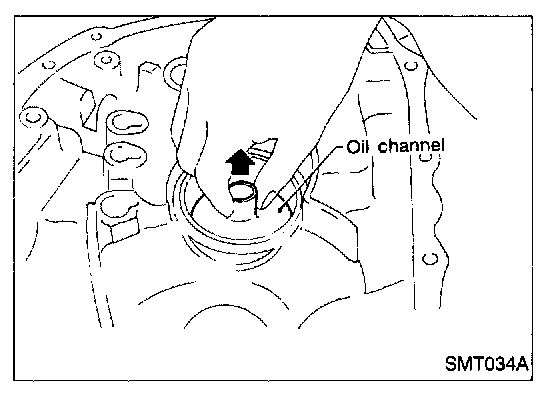

Mainshaft front bearing outer race.

Mainshaft rear bearing outer race. Mainshaft Bearing Preload

Differential side bearing outer race. Input Shaft End Play and Differential Side Bearing Preload
