SOLENOID VALVES AND FLUID TEMPERATURE SENSOR
-
For removal and installation, refer to On-Vehicle Service.
On Vehicle Service

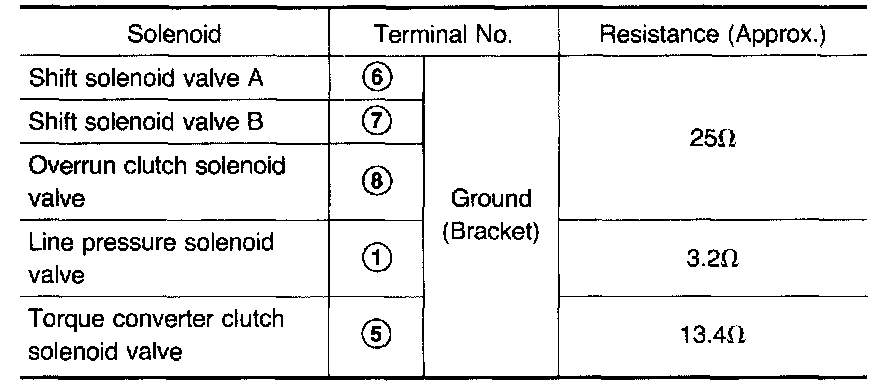

Solenoids:
-
Check resistance between two terminals.

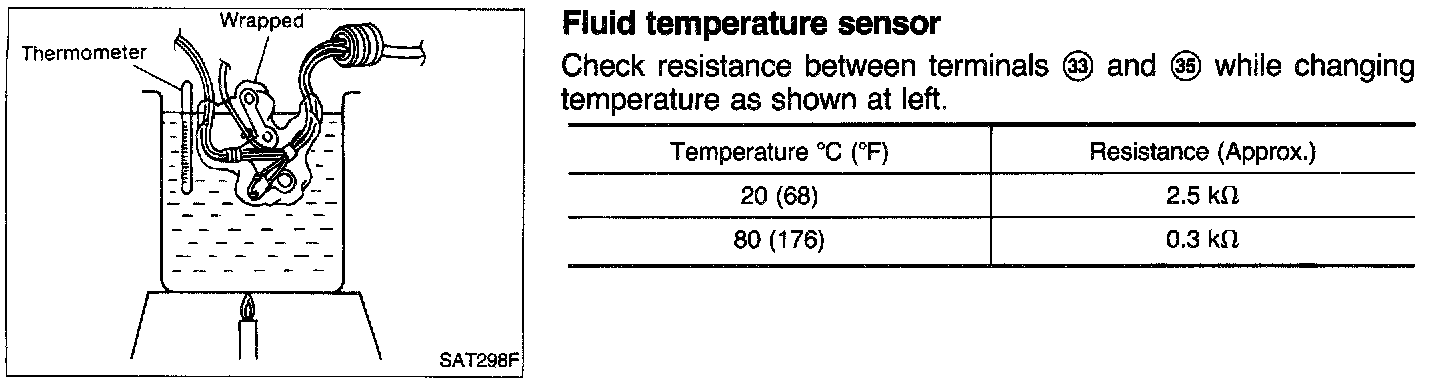

Fluid temperature sensor
Fluid Temperature Sensor:
