A/T - Modification, Information Only

Classification:
AT92-005

Section:
Trans.

Reference:
TECHNICAL BULLETIN NTB92-120

Models:
1993-Altima & Quest 1992-93 Maxima SE

Date:
December 17, 1992

RE4F04 A/V TRANSMISSION MODIFICATION

NOTE:
This Bulletin is published for your information, only, and does not require any repair or replacement of transmission components.

APPLIED MODEL:
1993 Altima & Quest
1992-3 Maxima SE

APPLIED TRANSMISSION #:
Altima & Maxima SE 92-4700001
Quest 92-4750001

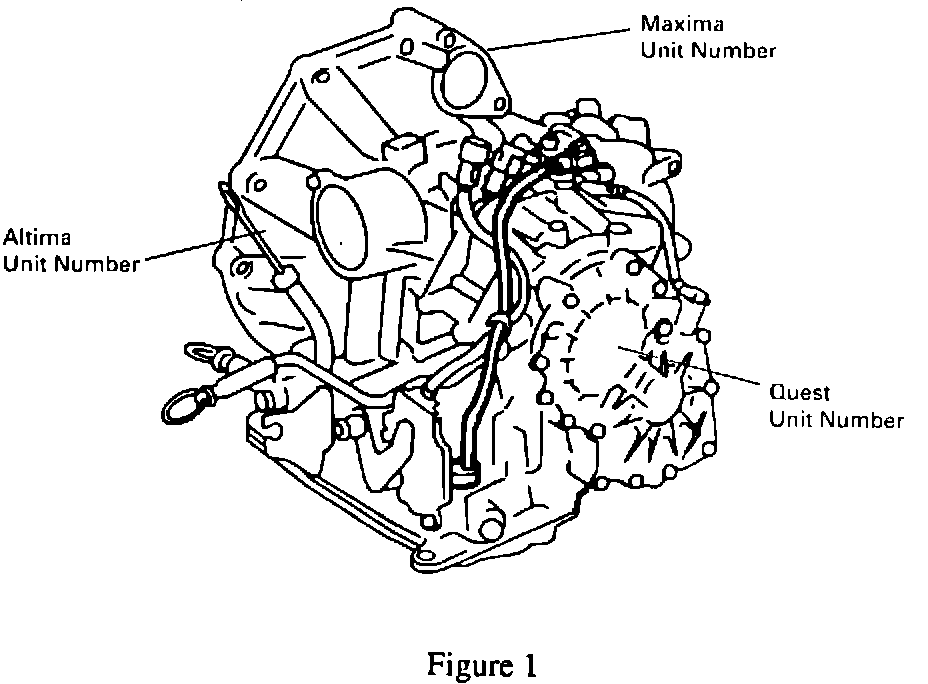

See Figure 1 for Transmission # location.

SERVICE INFORMATION:

Beginning with the referenced transmission numbers, the following changes have been made to the control valve (valve body):

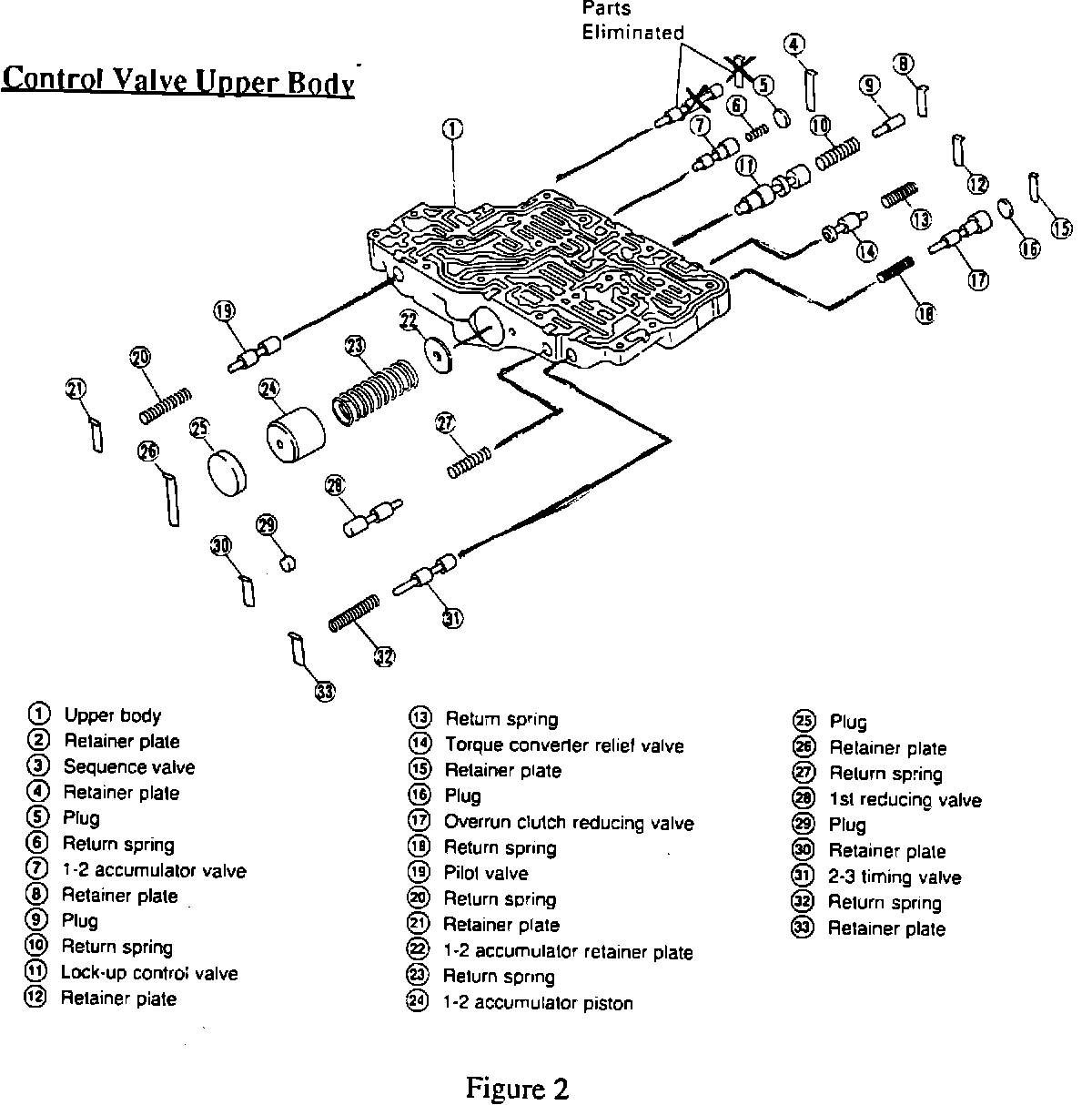

1. The sequence valve has been eliminated from the control valve assembly (Figure 2).

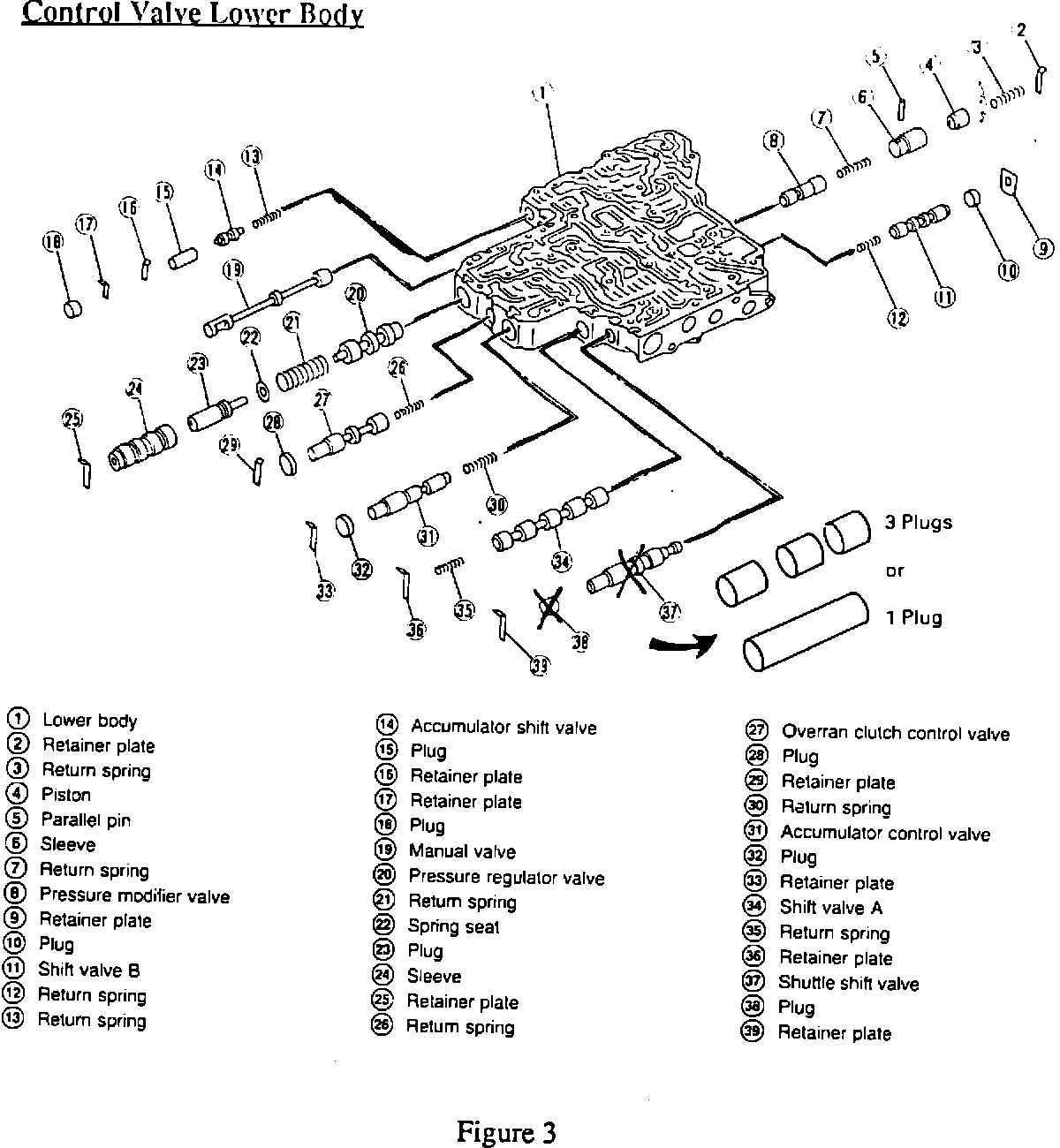

2. The shuttle shift valve has been replaced by 2 plugs or, on later model assemblies, 1 plug (Figure 3).

PARTS/WARRANTY INFORMATION:

None
